Case 21 Series Wheel Loader Brakes

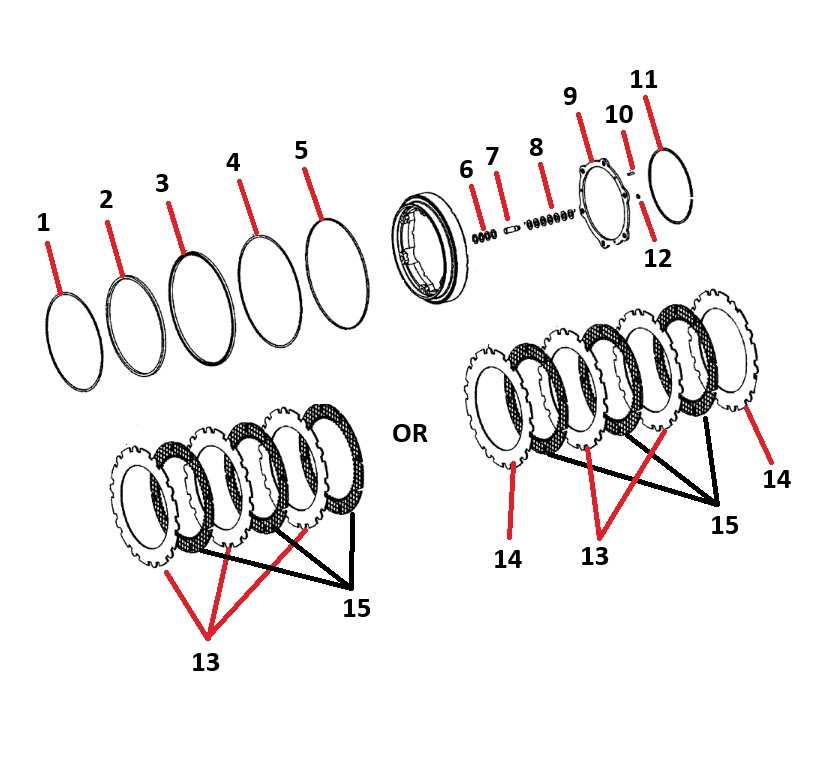

| REF # | Image | Fits Model | Description | Part # | Price | Product Details |
| 1 |
See Details
|
521D, 521E, 521F, 521G, 521G2, 621C, 621D, 621E, 621G, 621G2, 651G, 651G2, 721C, 721D, 721E, 721F, 721G, 721G2, 821C, 821E, 821F, 821G, 821G2, 921C, 921E, 921F, 921G, 921G2, 1021F, 1021G, 1021G2 | Brake Ring | 8603577 |
$74.00
|
View Info |
| 2 |
See Details
|
621C, 621D, 621E, 621G, 621G2, 651G, 651G2, 721C, 721D, 721E, 721F, 721G, 721G2, 821C, 821E, 821F, 821G, 821G2, 921C, 921E, 921F, 921G, 921G2, 1021F, 1021G, 1021G2 | Sealing Ring | 8605314 |
$70.00
|
View Info |
| 3 |
See Details
|
621C, 621D, 621E, 621G, 621G2, 651G, 651G2, 721C, 721D, 721E, 721F, 721G, 721G2, 821C, 821E, 821F, 821G, 821G2, 921C, 921E, 921F, 921G, 921G2, 1021F, 1021G, 1021G2 | Brake Sealing Ring | 8605315 |
$78.00
|
View Info |
| 4 |
See Details
|
521D, 521E, 521F, 521G, 521G2, 621C, 621D, 621E, 621G, 621G2, 651G, 651G2, 721C, 721D, 721E, 721F, 721G, 721G2, 821C, 821E, 821F, 821G, 821G2, 921C, 921E, 921F, 921G, 921G2, 1021F, 1021G, 1021G2 | Brake Ring | 8603579 |
$69.00
|
View Info |
| 5 |
See Details
|
521D, 521E, 521F, 521G, 521G2, 621C, 621D, 621E, 621G, 621G2, 651G, 651G2, 721C, 721D, 721E, 721F, 721G, 721G2, 821C, 821E, 821F, 821G, 821G2, 921C, 921E, 921F, 921G, 921G2, 1021F, 1021G, 1021G2 | Brake Piston Guide Ring | 8603580 |
$58.00
|
View Info |
| 6 |
See Details
|
335, 340, 340B, 521D, 621C, 621D, 621E, 721C, 721D, 721E, 821C, 821E, 921C, 921E | Brake Sealing Ring | 8603583 |
$4.75
|
View Info |
| 7 |
See Details
|
335, 340, 340B, 521D, 621C, 621D, 621E, 721C, 721D, 721E, 821C, 821E, 921C, 921E | Brake Pin | 8603163 |
$19.00
|
View Info |
| 8 |
See Details
|
335, 340, 340B, 521D, 621C, 621D, 621E, 721C, 721D, 721E, 821C, 821E, 921C, 921E | Brake Cup Spring | 8603584 |
$2.50
|
View Info |
| 9 |
See Details
|
521D, 621D, 621E, 721D, 721E, 821C, 821E, 921C, 921E | Brake Shim Plate | 8603162 |
$104.00
|
View Info |
| 11 |
See Details
|
521D, 521E, 521F, 521G, 521G2, 621C, 621D, 621E, 621G, 621G2, 651G, 651G2, 721C, 721D, 721E, 721F, 721G, 721G2, 821C, 821E, 821F, 821G, 821G2, 921C, 921E, 921F, 921G, 921G2 | Brake Retainer Ring | 8603585 |
$30.00
|
View Info |
| 12 |
See Details
|
335, 340, 340B, 521D, 621C, 621D, 621E, 721C, 721D, 721E, 821C, 821E, 921C, 921E | Snap Ring, Brakes | 8603788 |
$2.50
|
View Info |
| 13 |
See Details
|
521D*, 521E, 621D*, 621E, 721D, 721E, 721F, 821C, 821E, 921C, W110, W110B, W110TC, W130, W130TC, W170B, W190B*, LW110.B, LW130.B, LW170.B | Brake Plate | 8603582 |
$79.00
|
View Info |
| 14 |
See Details
|

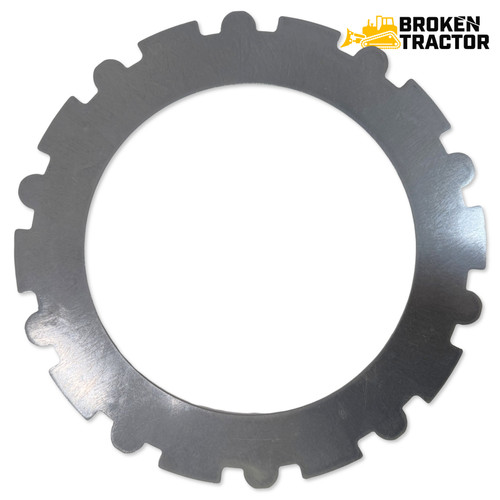

521D*, 521E, 621D*, 621E, 721D, 721E, 721F, 821C, 821E, 921C, W110, W110B, W110TC, W130, W130TC, W170B, W190B*, LW110.B, LW130.B, LW170.B | Outer Brake Plate (2mm Thick) | 87441328 |
$78.00
|
View Info |
| 15 |
See Details
|
521D, 521E, 521F, 521G, 621D, 621E, 621F, 621G, 721D, 721E, 721F, 721G, 821C, 821E, 921C, LW110.B, LW130, LW130.B, LW170.B, W110, W110B, W110TC, W130, W130B, W130C, W130TC, W170B, W170C, W170TC, W190B, W230C | Brake Friction Disc | 87341835 |
$84.00
|
View Info |
See Details
|
621, 721, 821, W14, W14B, W18, W20B, W20C, W24C, W30 | Brake Master Cylinder with Air Chamber | L113007 |
$1,120.00
|
View Info | |
See Details
|
621, 721, 821, W14, W14B, W20B, W20C, W24C, W30 | Brake Master Cylinder | N8695 |
$424.00
|
View Info | |
See Details
|
621, W14, W14B, W20B, W20C, W24C, W30 | Master Cylinder Repair Kit | N8937 |
$175.00
|
View Info | |
See Details
|
W14, W14B, W20B, W20C, W30, 621 | Rubber Diaphragm, Air Brake | N8698 |
$25.00
|
View Info | |
See Details
|
W7, W7E, W8, W8B, W8C, W8E, W9, W9A, W9B, W9C, W9E, W10B, W10C, W10E W11, W11B, W14, W14FL, W18, W18B, W20 | Brake Slave Cylinder | A12985 |
$78.00
|
View Info | |
See Details
|
621 (After JAK0027127), 721 (After JAK0022629) | Brake Shoe | S301674 |
$55.00
|
View Info | |
See Details
|

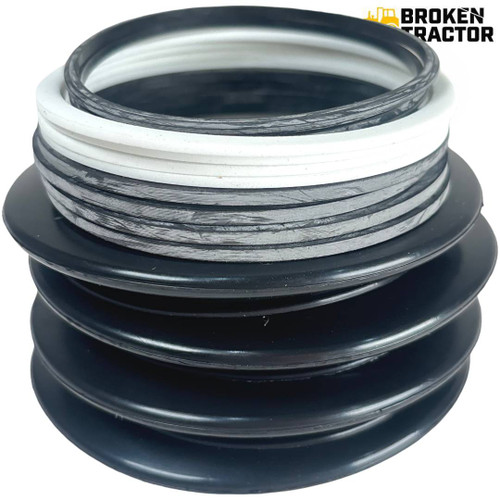

(621 After Ser#JAK0027127), (721 After Ser# JAK0022629) | Brake Caliper Resealing Kit | S301676 |
$94.00
|
View Info | |
See Details
|
W14, W20B, W24C, (621 After Ser#JAK0027127, (721 After Ser# JAK0022629) | Brake Piston | D77523 |
$44.00
|
View Info | |
See Details
|
W14B, W18B, W20C, W24C, W30, (621 Before Ser# JAK0027127), (721 Before Ser# JAK0022628), (821 Before Ser# JAK0023970) | Brake Shoe | S300718 |
$55.00
|
View Info | |
See Details
|
W14B, W18B, W20C, W24C, W30, (621 Before JAK0027127), (721 Before JAK0022628), (821 Before JAK0023970) | Brake Caliper Resealing Kit | N7964 |
$84.00
|
View Info | |
See Details
|
W14B, W18B, W20C, W24C, W30, (621 Before JAK0027127), (721 Before Serial JAK0022628) , (821 Before Serial JAK0023970) | Brake Piston | N7963 |
$42.00
|
View Info | |
See Details
|
621B, 621C*, 721B, 721C*, 821B, 821C* | Brake Disc (4.5mm) | 119430A1 |
$45.00
|
View Info | |
See Details
|
621B, 621C*, 721B, 721C*, 821B, 821C* | Brake Disc (4mm) | 119431A1 |
$20.00
|
View Info | |
See Details
|
621B, 621C*, 721B, 721C*, 821B, 821C* | Brake Disc | 119433A1 |
$48.00
|
View Info |
Case 21 Series Wheel Loader Brake Parts
Case 21 Series wheel loader brake parts provide direct replacement components for inboard wet brake and axle-mounted braking systems used on mid- to large-frame loaders. This category fits Case 521D, 521E, 521F, 521G, 621C, 621D, 621E, 621F, 621G, 721C, 721D, 721E, 721F, 721G, 821C, 821E, 821F, 821G, 921C, 921E, 921F, 921G, and 1021F/1021G models (serial breaks apply on select machines). These Case 21 Series wheel loader brake parts are used to restore braking force, eliminate internal axle leaks, and correct worn friction stacks that cause slipping or inconsistent pedal response.
Fits:
521D, 521E, 521F, 521G
621C, 621D, 621E, 621F, 621G
721C, 721D, 721E, 721F, 721G
821C, 821E, 821F, 821G
921C, 921E, 921F, 921G
1021F, 1021G
Common Repair Issues
-
Reduced stopping power under load
-
Brake chatter or grabbing
-
Oil contamination from failed sealing rings
-
Worn friction discs and brake plates
-
Excessive brake stack clearance
-
Axle leaks at sealing and retainer rings
Parts Covered in This Category
-
Brake friction discs
-
Lined brake discs (ZF axles)
-
Brake plates (standard and 2mm outer plates)
-
Brake rings and sealing rings
-
Brake piston guide rings
-
Brake locking and snap rings
-
Brake shim plates
-
Brake pins and cup springs (Belleville washers)
-
Brake retainer rings
Key Notes:
Application: Inboard axle brake systems for Case 21 Series wheel loaders, including ZF-equipped axles.
Coverage: Includes friction discs, steel plates, sealing rings, shims, guide rings, and related hardware.
Material/Build: Hardened steel plates and precision-molded sealing components for proper stack height and sealing.
Function: Restores correct brake pack tension, sealing integrity, and consistent stopping performance.
Made In / Brands: Varies by part.
Why Choose Broken Tractor:
✅ Exact-Fit Brake Components for 21 Series Loaders
✅ Serial-Specific Coverage Where Required
✅ Heavy-Duty Replacement Parts for Axle Brake Systems
