Rear Axle Outer Planetary and Hub

Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.

Rear Axle Outer Planetary and Hub parts list
REF #	Image	Fits Model	Description	Part #	Price	Product Details
1	See Details	580L, 580 Super L, 580M, 580 Super M, 590 Super M, 570LXT, 570MXT, 585G, 586G, 588G, NH LV80, U80, U80B	Rear Axle Hub	175974A1	$154.00	View Info

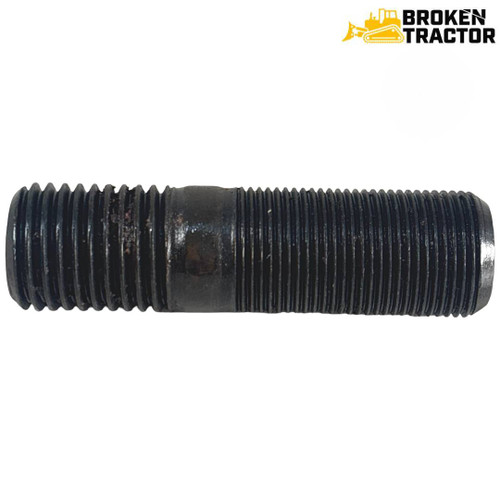

2	See Details	580L, 580M, 580N, 580 Super L/M/N, 590 Super L/M/N, 680L, 780D, 570LXT/MXT/NXT, 580NEP, W14C, 585G, 586G/H, 588G/H, B90B, B95B/BLR, B100BLR/BTC, B110B, B95C/CLR/CTC, B110C, U80C	Lug Stud (Rear Axle)	D142986	$6.00	View Info
2	See Details	580L, 580 Super L, 580M, 580 Super M, 580N, 580N EP, 580 Super N, 590 Super L, 590 Super M, 590 Super N, 680L, 780D, 570LXT, 570MXT, 570N, 570NXT, W14C, 585G, 586G, 586H, 588G, 588H	Lug Nut (Rear Wheel)	D138492	$4.00	View Info
3	See Details	580L, 580M, 580 Super L, 580 Super M, 570LXT, 570MXT, U80, U80B, 585G, 586G, 588G	O-Ring, Rear Axle Hub	85808262	$5.50	View Info
4	See Details	580L, 580M, 580 Super L, 580 Super M, 570LXT, 570MXT, 585G, 586G, 588G, LV80	Ring Gear (Rear Axle Planetary)	175976A1	$248.00	View Info
4	See Details	580 Super M+ Series II (After Serial Number N4C304000)	Rear Axle Planetary Ring Gear	311488A1	$161.00	View Info
5	See Details	580L, 580M, 580 Super L (Before Serial Number JJG023960), 570LXT, 570MXT, 585G, 586G, 588G	Planetary Hub Carrier (Rear Axle)	175977A1	$295.00	View Info
5	See Details	580 Super L (After Serial Number JJG023960), 580 Super M	Rear Planetary Carrier (Assembly)	292891A1A	$1,585.00	View Info
7	See Details	580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Super L, 590 Super M, 590 Super N, 570LXT, 570MXT, 570NXT, 585G, 586G, 586H, 588G, 588H	Screw, Planetary Hub	905876R1	$2.00	View Info
7	See Details	580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Super L, 590 Super M, 590 Super N, 570LXT, 570MXT, 570NXT, 585G, 586G, 586H, 588G, 588H	Hub Drain Plug	100557A1	$11.50	View Info
10	See Details	570LXT, 570LXT Series 2, 570MXT, 570MXT Series 3 575N EP, 580L, 580L Series 2, 580M, 580M Series 2, 580SL Series 1, 585G, 586G, 586G Series 3, 588G, 588G Series 3	Needle Bearing, Pack of 10	175978A1	$5.50	View Info
11	See Details	580 Super L-II, 580 Super M, 590 Super M	Rear Axle Planetary Gear	292894A1	$125.00	View Info
11	See Details	580L, 580M, 580 Super L (Before Serial Number JJG0239361), 580 Super M, 570LXT, 570MXT, 585G, 586G, 588G	Rear Axle Planetary Gear	175979A1	$84.00	View Info
14	See Details	580L, 580M, 580 Super L, 580 Super M, 590 Super M, 570LXT, 570MXT, 585G, 586G, 588G	Bolt (Self-Locking Planetary)	175982A1	$2.00	View Info
15	See Details	580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M, 570LXT, 570MXT, 585G, 586G, 586H, 588G	Special Bolt, Drive Hub	K395131.	$4.00	View Info
16	See Details	480E/F, 580 Super E, 580K, 580 Super K, 580L/M, 580 Super L/M, 590 Super L/M, 680L, 780D, 570LXT/MXT, 584E, 585E/G, 586E/G, 588G, W14C, 760, 860	Rear Axle Planetary Drive Bushing (20 mm OD)	107071A1	$9.00	View Info
18	See Details	580L (Before Serial Number JJG0239360), 580 Super L (Before Serial Number JJG0239360), 570LXT	Rear Axle Wheel Gear (16 Hole)	175983A1	$249.00	View Info
18	See Details	580L, 580M, 580 Super L, 580 Super M, 570LXT, 570MXT, U80, U80B, 585G, 586G, 588G	Rear Axle Gear (18 Holes)	310492A1	$113.00	View Info
19	See Details	570LXT, 570MXT, 580L, 580 Super L, 580M, 580 Super M, 585G, 586G, 586G, 588G	Drive Axle Planetary Locking Ring	85808263	$4.00	View Info
21	See Details	580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M, 570LXT, 570MXT, 585G, 586G, 588G	Drive Bushing (Rear Axle Housing)	196065A1	$9.00	View Info
22	See Details	580L, 580L Series 2, 580 Super L, 580SL, 570LXT, 570LXT Series 2, 585G, 586G, 588G	Pinion Shaft Seal	175987A1	$12.00	View Info
22	See Details	580L, 580 Super L, 570LXT, 580M, 580 Super M, 570MXT, 555E, 575E, 655E, 675E, B75D, LB75.B, LB75, LB75CP, NH85TLB, B90B, LB90, LB90.B, B95, B95B, B95BTC, B95C, B95D, B95TC, LB95, B95CTC, B110, B110B, B110C, B110D, LB110, LB110.B, B115, B115B, B110BTC	Drain Plug	85806012	$11.50	View Info
23	See Details	580 Super L-II, 580 Super M	Rear Axle Hub Drive Shaft	292896A1	$123.00	View Info
23	See Details	(580L- Ser. II), 580M, 570MXT, 585G, 586G, 588G	Rear Axle Planetary Shaft (215 MM Long)	358286A1	$155.00	View Info
23	See Details	(580L Ser. I), (580 Super L - Ser. I), 570LXT, 585G, 586G, 588G	Rear Axle Planetary Drive Shaft (145 MM Long)	175986A1	$138.00	View Info
24	See Details	480E, 480E LL, 480F, 480F LL, 580E, 580 Super E, 580K, 580 Super K, 590 Turbo, 590 Super L, 590 Super M, 680L, 780D, 580 Super L, 570MXT, 580M, 580 Super M, 580 Super M+, 570LXT, 584E, 585E, 586E, 585G, 586G, 588G, W14C, 560, 760, 860	Axle Hub Oil Seal	K395102	$39.00	View Info
25	See Details	580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N, 570LXT, 570MXT, 570NXT, 584E, 585E, 585G, 586E, 586G, 586H, 588G, 588H	Rear Axle Bearing and Race	47724311.	$92.00	View Info
22	See Details	580L Series II, 580M, 580M Series 2, 580 Super L Series 2, 580 Super M, 580 Super M Series 2, 580 Super M+ Series 2, 590 Super L, 590 Super M, 590 Super M Series 2, 570LXT Series II, 570MXT, 570MXT Series 3, 585G, 586G, 586G Series 3, 588G	Rear Axle Seal	196066A1	$10.00	View Info
	See Details	570LXT, 570MXT, 570MXT Series 3, 580L, 580L Series 2, 580M, 580M Series 2, 580SL, 585G, 586G, 586G Series 3, 588G, 588G Series 3	Thrust Washer	175989A1	$8.00	View Info
13	See Details	580L, 580M, 580 Super L, 580 Super M, 590 Super M, 570LXT, 570MXT, 585G, 586G, 588G	Needle Bearing Set	247550A1	$3.00	View Info
	See Details	590SM, 590SM Series II, 590 Super M Series III, 570MXT, 580M Series 1, 580M Series 2, 580 Super M Series 1, 580 Super M Series 2, 580 Super M+	Hub Seal	247546A1	$65.00	View Info

Case Backhoe Rear Axle Outer Planetary and Hub

The Rear Axle Outer Planetary and Hub category for Case Backhoes encompasses a comprehensive selection of components essential for maintaining the efficiency and performance of your machinery. These parts play a crucial role in ensuring the optimal functionality of the rear axle system, allowing for smooth and reliable operation of your backhoe.

Included in this category are high-quality items such as the Case New Holland Axle Planetary Drain Plug with magnetic backing, specifically designed to keep your axle system clean and free from debris. The assortment of planetary gears, including the Case Backhoe Rear Axle Planetary Gear and various drive shafts, is engineered for durability and precision, facilitating the transfer of power and enhancing operational efficiency.

Essential components such as the Crown Wheel Gear and the Rear Axle Planetary Hub Carrier are available to ensure that your backhoe’s rear axle functions seamlessly. Also included are various seals, bushings, and lug studs, which are critical for maintaining the integrity and stability of the axle assembly.

With parts like the Rear Axle Hub O-Ring and the Rear Axle Needle Bearing Set, users can achieve a thorough and reliable repair or maintenance job, ensuring that your Case Backhoe remains in top working condition. Each item is manufactured to meet stringent quality standards, guaranteeing a perfect fit and long-lasting performance.

Whether you are upgrading existing components or conducting a complete overhaul, the Rear Axle Outer Planetary and Hub category offers everything needed for your Case Backhoe. Trust in these expertly crafted parts to enhance your equipment’s performance and reliability on the job site.
