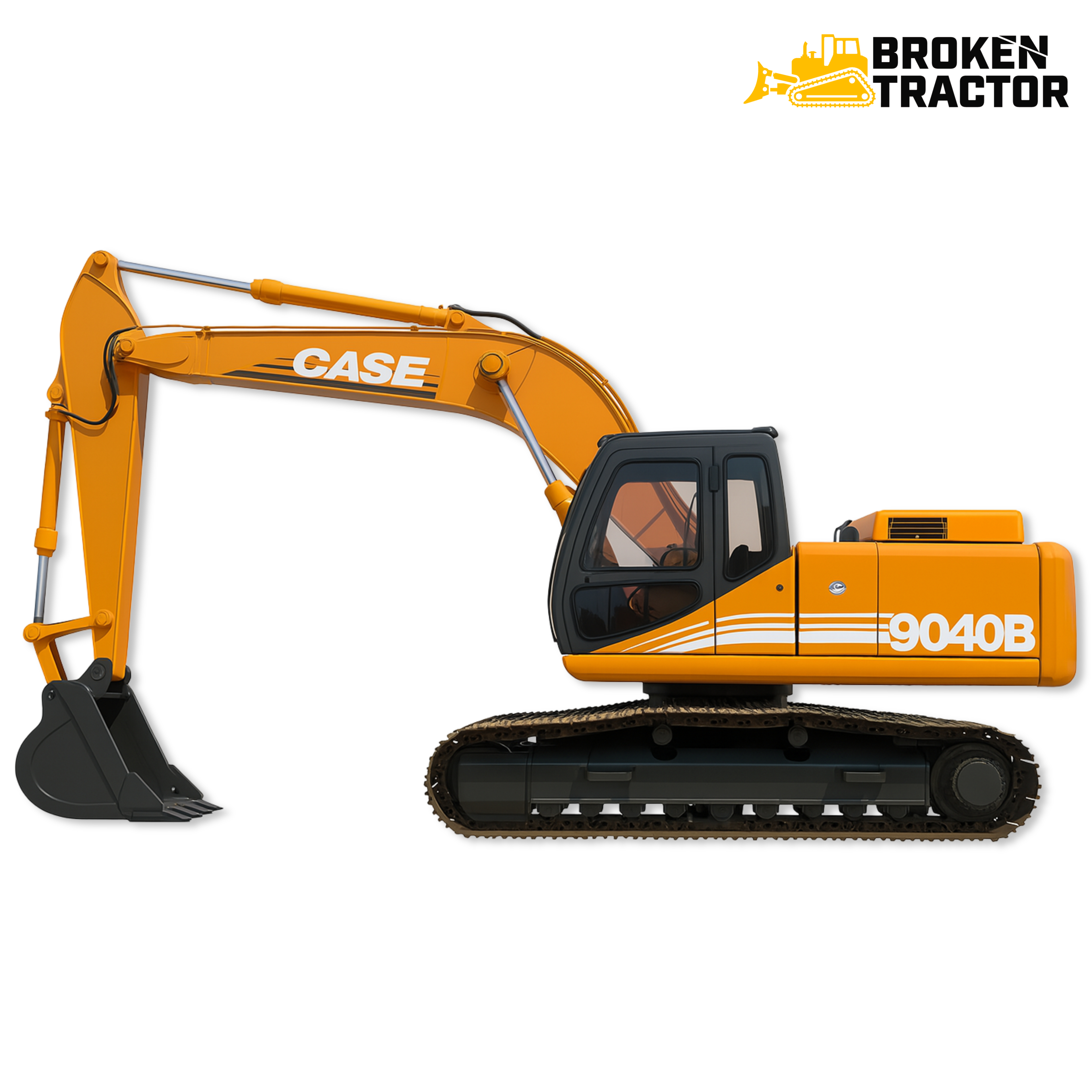

Case 9040B Excavator: B-Series Heavy Legacy Excavator (1997 - Early 2000s)

The Case 9040B is the B-generation refresh of the 9040 heavy excavator, produced from the late 1990s into the early 2000s. It sits in the legacy Case excavator lineage that preceded the modern CX-series, with refined hydraulics versus the original 9040 and the proven Case/Cummins diesel powerplant.

BT

Broken Tractor Editorial Team• Updated May 2026• 8 min read

Where the 9040B fits in the Case excavator line

The 9040B is part of Case’s legacy excavator lineage and a direct predecessor to the modern CX-series excavator line. In the legacy sequence it sits between the smaller 9040 and the larger 9050, with a heavy-class operating weight and the refined B-generation hydraulic and control architecture introduced in the mid-1990s.

For owners and operators running these machines in 2026, the 9040B remains a serviceable, parts-supported legacy excavator. Mechanical injection on the earliest builds and early-electronic engine control on later production means most repairs can still be diagnosed with a manual, a multimeter, and a pressure gauge.

What changed from the 9040 to the 9040B

• Hydraulic refinement. The B-generation update brought a refined main hydraulic control system versus the original 9040 - smoother boom and dipper modulation, improved swing-priority behavior, and updated valve internals.
• Engine control. Earliest 9040B builds carried over mechanical injection from the original 9040. Later production transitioned to early-electronic engine control as Case migrated toward the CX-series platform.
• Operator station. Updated cab interior, refined joystick controls, and improved instrument cluster relative to the first-generation 9040.
• Service architecture. Pre-Tier 4 emissions throughout the production run - no DPF, no SCR, no DEF. Repairs reward a wrench and a parts catalog, not a laptop.

Engine, hydraulics, and drivetrain

The 9040B runs a Case or Cummins diesel through a hydrostatic dual-path drivetrain. Pre-Tier 4 emissions throughout - mechanical injection on the earliest builds, electronic engine control on later production. The main hydraulic pump drives boom, dipper, bucket, swing, and propel circuits through mechanical or electrohydraulic control valves depending on the production window.

The undercarriage is a steel-track design with the typical heavy-excavator roller, idler, sprocket, and recoil-spring layout. The swing system uses a hydraulic swing motor through a reduction gear riding on a swing bearing - a service architecture shared across most legacy heavy excavators of the era.

Common service items on the 9040B

• Engine internals: Pistons, rings, sleeves, bearings, head gaskets. Mechanical-injection or early-electronic depending on production year.
• Fuel system: Injection pump, injectors, lift pump, primary and secondary fuel filters.
• Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
• Hydraulic system: Boom, dipper, bucket, and swing cylinder seal kits, main pump rebuild, control valves, hoses.
• Boom and dipper: Pin and bushing service at every joint, bucket pins, thumb attachment hardware, quick-coupler service.
• Undercarriage: Steel track inspection and replacement, rollers, idlers, drive sprockets, recoil springs.
• Swing system: Swing motor and reduction gear service, swing bearing inspection, swing brake.
• Electrical: Starter, alternator, wiring harness, gauges, switches.
• Cab glass and wiper: KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass all cross-fit across Case and Link-Belt excavators.
• Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.

Parts and cross-fit components for the Case 9040B

What to verify before ordering

• Machine serial number. Confirm the serial on the 9040B before ordering year-specific parts - the B-series saw multiple revisions through its production run.
• Engine serial. Engine internal parts must match the engine serial number, not the machine serial.
• Mechanical vs. electronic injection. Earliest 9040B builds use mechanical injection; later units use electronic engine control. Fuel-system parts differ.
• Hydraulic cylinder bore. Cylinder seal-kit fit depends on bore dimension - measure before ordering.
• Bucket and quick coupler. Quick-coupler interface varies - confirm before ordering attachment-side hardware.
• Undercarriage configuration. Track shoe width and roller count varied across production. Match the existing configuration.

Why the 9040B still earns a paycheck

The Case 9040B is a legacy excavator from the era before the modern CX-series. Pre-Tier 4 emissions, mechanical or early-electronic injection, and service architecture that rewards a wrench, a manual, and a parts catalog. For owners and operators running these machines, parts availability through the legacy Case service network and the aftermarket remains broad - especially for engine, hydraulic, and undercarriage components.

Maintenance priorities on a 9040B: clean fuel and quality filtration, hydraulic oil at temperature with clean filters, swing-bearing lubrication, steel-track tension and undercarriage wear monitoring, and pin and bushing service at every working joint. Broken Tractor maintains parts coverage across the Case legacy excavator family.
