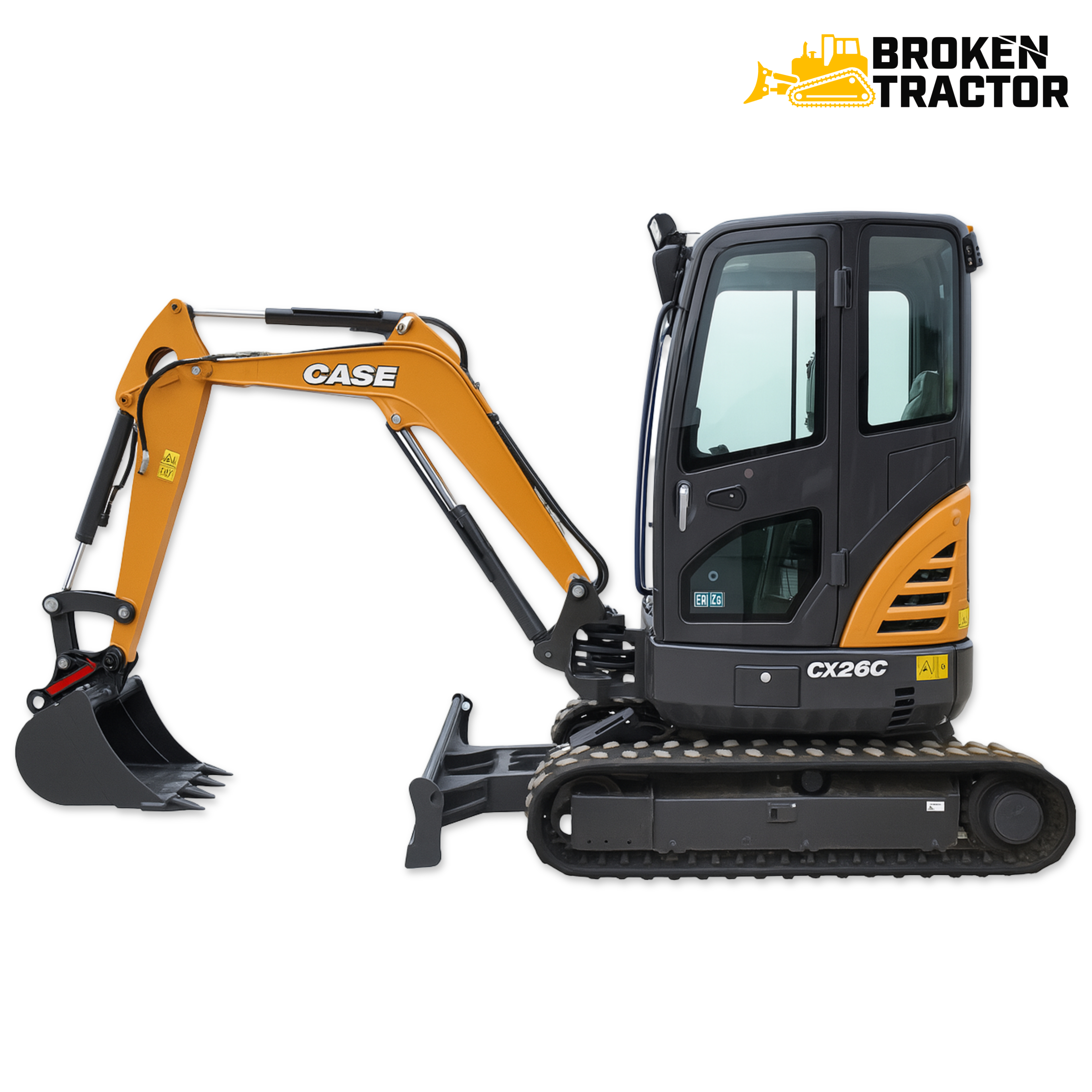

Case CX26C Mini Excavator – Parts, Specs

Description:

Serial Number Location

The serial number plate on the Case CX26C is typically located on the right-hand side of the lower cab frame, just below the windshield.

Always verify the serial number before ordering parts to ensure compatibility with your specific model.

Key Specifications

• Years Manufactured: 2017 – Present

• Engine: Yanmar 3TNV76, Tier 4 Final

• Rated Power: 24.8 hp (18.5 kW)

• Operating Weight: 5,520 lbs (2,505 kg)

• Max Digging Depth: 7 ft 11 in (2.41 m)

• Max Reach at Ground Level: 13 ft 7 in (4.14 m)

• Swing Speed: 9.1 rpm

• Travel Speed: Up to 2.8 mph (4.5 km/h)

• Dimensions (L×W×H): 13.2 ft × 5.2 ft × 8.2 ft (4.02 m × 1.58 m × 2.5 m)

• Tail Swing Radius: Zero tailswing design for tight spaces

• Hydraulic Flow Rate: 14.6 gal/min (55.3 L/min)

• Hydraulic Pressure: 3,130 psi (216 bar)

• Fuel Tank Capacity: 8 gallons (30.3 L)

• Hydraulic Tank Capacity: 14.6 gallons (55.3 L)

Performance & Design Highlights

• Zero Tailswing: Allows operation in confined spaces without compromising performance.

• Proportional Controls: Enhances precision and efficiency for various tasks.

• Versatile Attachments: Supports a variety of quick couplers and tools, increasing job site adaptability.

• Operator Comfort: Spacious cab with ergonomic controls and optional air conditioning.

• Easy Transport: Compact size and light weight make it easy to transport between job sites.

Routine Maintenance

• Engine Oil and Filter: Replace every 250 hours.

• Hydraulic Oil and Filters: Replace every 1,000 hours.

• Fuel Filter: Replace every 500 hours.

• Air Filter: Inspect every 250 hours; replace as needed.

• Track Tension: Check and adjust regularly to prevent excessive wear.

• Grease Points: Lubricate all pivot points daily to ensure smooth operation.

Common Issues & Fixes

• Hydraulic Leaks: Regularly inspect hoses and connections; replace damaged components promptly.

• Electrical Problems: Check battery connections and fuses; ensure wiring is intact and free from corrosion.

• Engine Overheating: Keep radiator and cooling system clean; monitor coolant levels and replace as necessary.

• Track Wear: Maintain proper tension and inspect for damage; replace worn tracks to prevent further issues.
