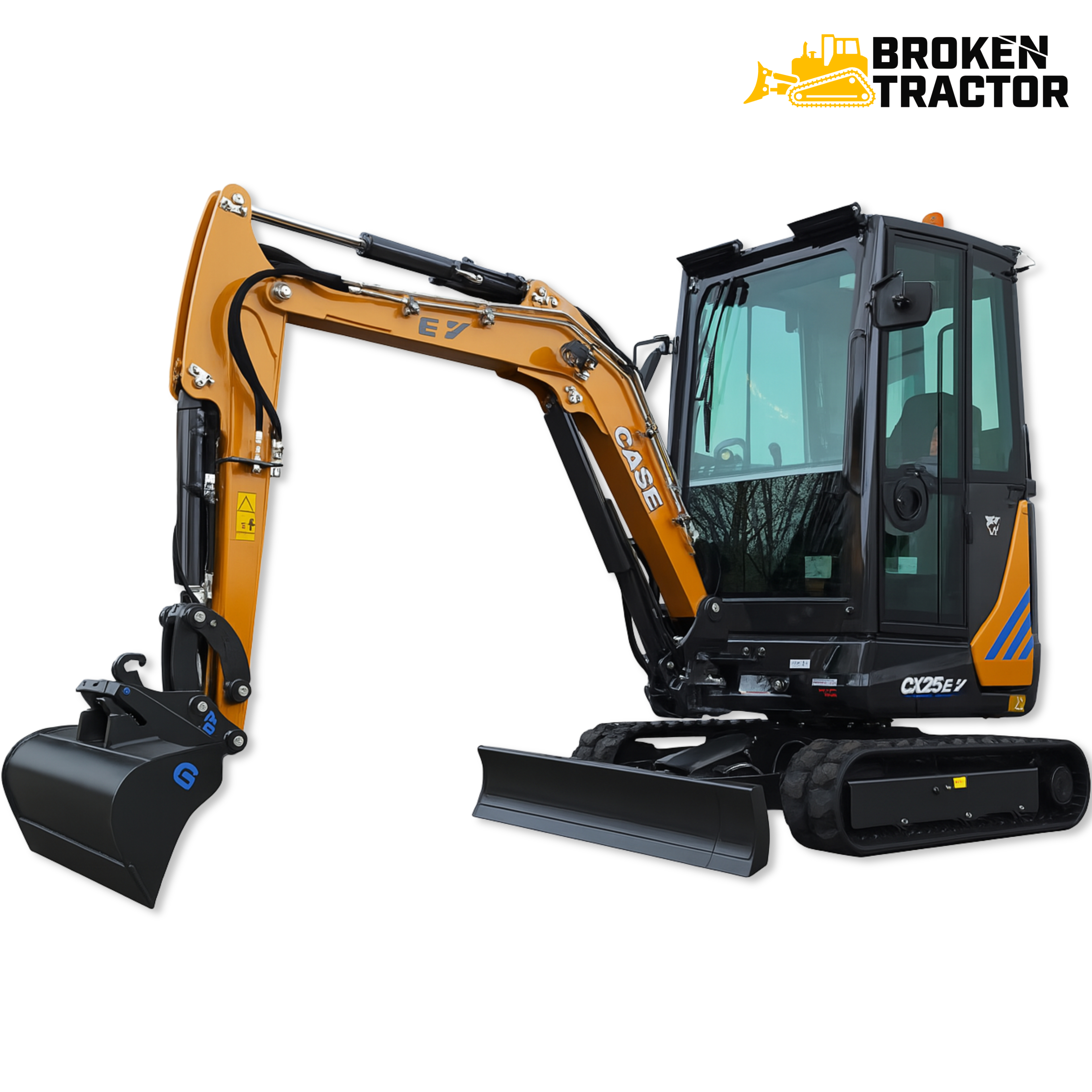

Case CX25EV Electric Mini Excavator – Parts, Specs

Description:

Serial Number Location:

The serial number plate on the Case CX25EV is typically located on the right-hand side of the lower cab frame, just below the windshield. Always verify the serial number before ordering parts to ensure compatibility with your specific model.

Key Specifications

• Years Manufactured: 2024 – Present

• Power Source: 32.3 kWh Lithium-Ion Battery

• Rated Power: 25 kW (33.5 HP)

• Peak Power: 32 kW (43 HP)

• Operating Weight: 5,159 lbs (2,340 kg)

• Maximum Digging Depth: 9 ft 1 in (2.77 m)

• Maximum Reach at Ground Level: 15 ft (4.57 m)

• Swing Speed: 11.8 rpm

• Travel Speed: Up to 2.5 mph (4 km/h)

• Dimensions (L×W×H): 13.5 ft × 4.9 ft × 7.9 ft (4.11 m × 1.5 m × 2.4 m)

• Tail Swing Radius: Short-radius design for tight spaces

• Hydraulic Flow Rate: 2 × 55.75 gal/min (211 L/min)

• Hydraulic Pressure: 4,975 psi (343 bar)

• Auxiliary Circuits: Up to 3, compatible with various attachments

• Battery Runtime: 4–8 hours depending on usage

• Charging Time: 9 hours with 220V outlet; 2 hours with optional external three-phase rapid charger

Performance & Design Highlights

• Zero Emissions: Ideal for urban and indoor job sites with strict environmental regulations.

• Electrohydraulic Controls: Customizable settings for operator preference, enhancing precision and efficiency.

• Short-Radius Design: Allows operation in confined spaces without compromising performance.

• Versatile Attachments: Supports a variety of quick couplers and tools, increasing job site adaptability.

• Quiet Operation: Significantly reduced noise levels, suitable for noise-sensitive environments.

Routine Maintenance

• Battery System: Regularly inspect for damage or wear; ensure proper charging practices.

• Hydraulic System: Check fluid levels and inspect hoses and connections for leaks or damage.

• Undercarriage: Inspect tracks and rollers for wear; clean to prevent debris buildup.

• Cooling System: Ensure cooling fans and radiators are clean and functioning properly.

• Electrical Components: Regularly check connectors and wiring for signs of wear or corrosion.

Common Issues & Fixes

• Reduced Battery Performance: Ensure battery is charged using recommended procedures; avoid deep discharges to prolong battery life.

• Hydraulic Leaks: Inspect and replace damaged hoses or seals; maintain proper fluid levels.

• Control System Errors: Check for software updates and calibrate controls as needed; consult the operator's manual for troubleshooting steps.

• Track Tension Issues: Regularly adjust track tension to manufacturer specifications to prevent derailment or excessive wear.

• Charging System Faults: Verify charger compatibility and inspect charging connectors for damage or debris.
