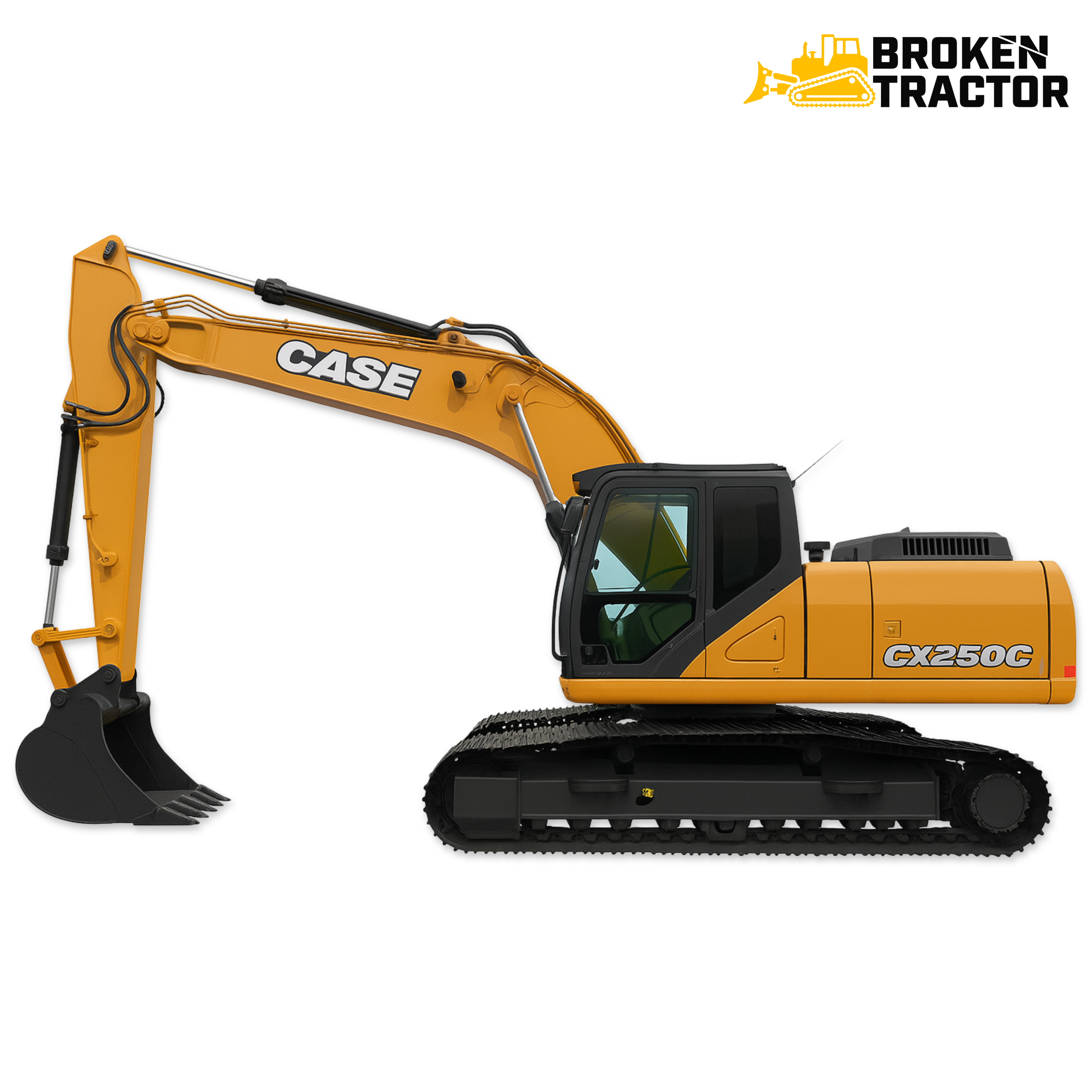

Case CX250C Hydraulic Excavator: Tier 4 Interim 25-Ton C-Series
The Case CX250C is a 25-ton C-Series hydraulic excavator built on the Tier 4 Interim emissions platform. It sits between the CX245D SR and the larger CX250D in Case’s full-size excavator lineup, delivering production-grade earthmoving capability for general site work, utility installation, and quarry duty.
Where the CX250C fits in the Case excavator line
The CX250C is a 25-ton class C-Series excavator, positioned between the CX245D SR short-radius unit and the larger CX250D in Case’s full-size excavator lineup. The C-Series brought Tier 4 Interim emissions compliance to the mid-large excavator class with a refined diesel powerplant, load-sensing piston-pump hydraulics, and electrohydraulic control of boom, dipper, bucket, swing, and propel functions.
Case CX250C - Quick Specs
- Class
- 25-Ton Excavator
- Generation
- C-Series
- Engine
- Tier 4 Interim Diesel
- Drivetrain
- Hydrostatic Dual-Path
- Undercarriage
- Steel-Track
- Tail Swing
- Conventional
- Smaller Sibling
- CX245D SR
- Larger Sibling
- CX250D
Engine, hydraulics, and drivetrain
The CX250C runs a Tier 4 Interim diesel through a hydrostatic dual-path drive into a steel-track undercarriage. The main hydraulic circuit uses a load-sensing piston pump driving boom, dipper, bucket, swing, and propel functions through electrohydraulic control valves. This architecture gives smoother modulation and better fuel efficiency than older open-center systems, but it also means the control valves, sensors, and ECU calibration are tightly integrated - a fault on one circuit often shows up as a performance complaint on another.
The Tier 4 Interim emissions package includes a diesel particulate filter (DPF), EGR cooler, and on equipped configurations DEF/SCR aftertreatment. Common-rail fuel injection demands clean fuel and tight water separation; the lift pump, primary and secondary filters, and water separator are routine service points.
Common service items on the CX250C
- Engine internals: Pistons, rings, sleeves, head gaskets, bearings on the Tier 4 Interim diesel.
- Aftertreatment: DPF service and regen monitoring, DEF tank and dosing module, SCR catalyst, EGR cooler.
- Fuel system: Common-rail injectors, lift pump, primary and secondary filters, water separator.
- Cooling system: Radiator, water pump, thermostat, fan, charge-air cooler, hoses, belts.
- Hydraulic system: Boom, dipper, bucket and swing cylinder seal kits, main pump rebuild, electrohydraulic control valves, hoses.
- Boom and dipper: Pins and bushings at every joint, bucket pins, thumb attachment hardware, quick-coupler service.
- Undercarriage: Steel track chains, rollers, idlers, drive sprockets, recoil springs.
- Swing system: Swing motor and reduction gear, swing bearing, swing brake.
- Electrical / ECU: Engine ECU, instrument cluster, sensors, harness, telematics module on equipped units.
- Cab glass and wipers: KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass all cross-fit across Case and Link-Belt excavators.
- Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.
Parts we carry for the Case CX250C
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Pistons, rings, sleeves, gaskets, bearings | Browse Engine |
| Aftertreatment | DPF, DEF, SCR, EGR components | Browse Aftertreatment |
| Fuel System | Common-rail injectors, lift pump, filters | Browse Fuel System |
| Cooling | Radiator, water pump, charge-air cooler, hoses | Browse Cooling |
| Hydraulics | Main pump, swing motor, cylinders, seal kits, valves | Browse Hydraulics |
| Boom / Dipper | Pins, bushings, bucket and quick-coupler hardware | Browse Boom / Dipper |
| Undercarriage | Steel tracks, rollers, idlers, sprockets, recoil springs | Browse Undercarriage |
| Swing | Swing motor, reduction gear, swing bearing | Browse Swing |
| Cab Glass / Wiper | KHN16820 wiper, KHN3046 lower glass, KHN2632 upper glass | KHN16820 Wiper Blade |
| Electrical / ECU | ECU, sensors, harness, instrument cluster | Browse Electrical |
| Operator Station | Seat, joysticks, pedal linkage, gauges | Browse Operator Station |
Need a part for your Case CX250C Excavator?
Hydraulic pumps, common-rail injectors, undercarriage, and cab glass are the highest-value items on a CX250C. Call our parts team with your machine and engine serial.
Request a PartWhat to verify before ordering
- Machine serial number. Confirm the CX250C serial before ordering year-specific parts.
- Engine serial. Internal engine parts must match the engine serial.
- Hydraulic cylinder bore. Seal kit fit depends on bore dimension - measure before ordering.
- Tier 4 emissions revision. DPF and DEF/SCR components saw revisions during the C-Series run - confirm by serial.
- ECU calibration. Common-rail injectors and ECU sensors are calibrated to specific build years.
- Bucket and quick coupler. Quick-coupler interface varies - confirm before ordering attachment-side hardware.
Why the CX250C still earns a paycheck
The CX250C is a 25-ton production excavator capable of general site work, utility installation, residential and commercial earthmoving, and quarry duty depending on configuration. The C-Series platform brought Tier 4 Interim emissions compliance to the mid-large class without sacrificing the production capacity Case excavator customers expect.
Maintenance priorities on a CX250C: clean fuel and tight water separation for common-rail injection, DPF regen behavior tracking, hydraulic oil condition, swing-bearing lubrication, steel-track tension and undercarriage wear monitoring, and pin and bushing service. Broken Tractor maintains parts coverage across the C-Series and the broader Case excavator family.
