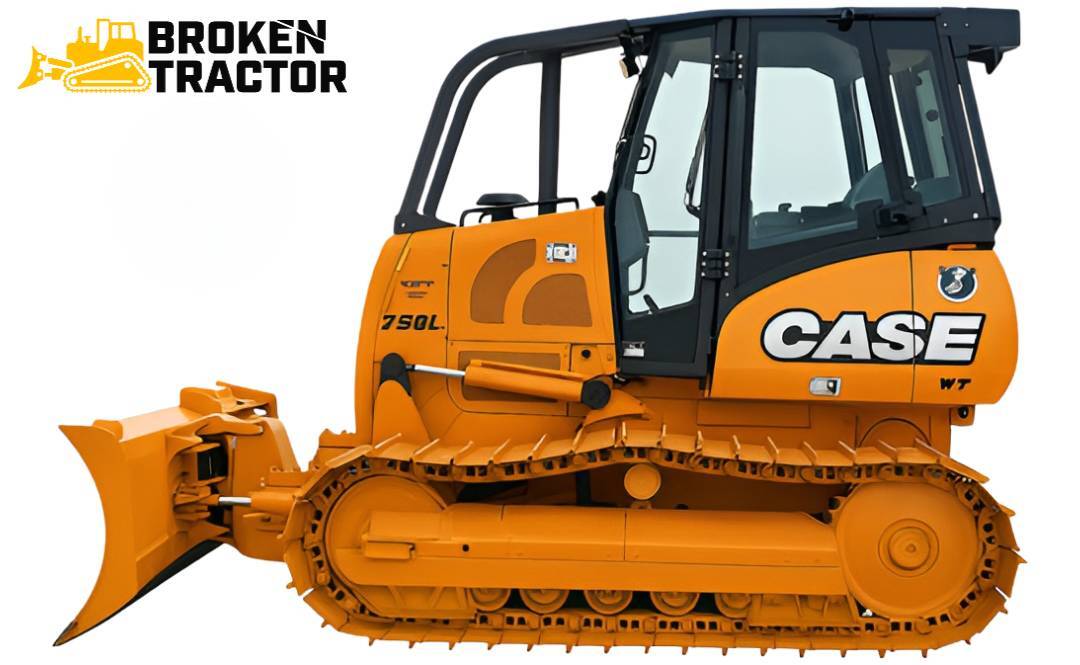

Case 750L Crawler Dozer: Specs, Parts & Common Issues

Produced 2005 – 2011, the Case 750L is the L-generation mid-large frame Case crawler dozer — Tier 3 emissions, Cummins B-series turbocharged four-cylinder diesel, and continued hydrostatic dual-path transmission. The 750L bridges the original Tier 1/2 hydrostatic 750H and the Tier 4 Interim 750K, representing the Tier 3 era when EGR and emissions calibration tightened but before the DPF aftertreatment of Tier 4 Interim.

Broken Tractor Editorial Team• Updated May 2026• 10 min read

The Case 750L Crawler Dozer is the Tier 3 emissions generation of the mid-large frame Case crawler dozer, produced from 2005 through 2011. The 750L continues the hydrostatic dual-path drivetrain architecture introduced on the 750H and adds Tier 3 emissions compliance — primarily through internal engine changes (cooled EGR, improved combustion calibration, common-rail or revised injection) without the diesel particulate filter aftertreatment that came with the Tier 4 Interim 750K.

For owners and operators, the 750L sits in a useful sweet spot: it's a modern hydrostatic dozer with the refined cab, joystick controls, and improved electronics of the L-generation, but without the Tier 4 Interim DPF service complexity that the 750K introduced. That makes the 750L a popular used-market option for buyers who want hydrostatic performance without the DPF maintenance cycle.

L-generation in Case Construction order: H → L → K → M The lettered generations in the Case Construction crawler dozer line do not run strictly alphabetically by date. The chronological sequence for the 750 modern era is 750H (2000–2003, Tier 1/2) → 750L (2005–2011, Tier 3) → 750K (Tier 4 Interim with DPF) → 750M (Tier 4 Final / Stage V with SCR + DEF). The L preceded the K by emissions tier.

At-a-glance specifications

Case 750L — factory specifications

Production years: 2005 – 2011
Predecessor: Case 750H (2000 – 2003)
Successor: Case 750K (Tier 4 Interim era)
Engine: Cummins B-series 4-cyl turbocharged diesel, Tier 3
Displacement: ~3.9 – 4.5 L (configuration dependent)
Power: ~105 – 115 HP flywheel (configuration dependent)
Transmission: Hydrostatic dual-path
Emissions tier: Tier 3 (no DPF, no SCR/DEF)
Variants: Standard, LT (Long-Track), LGP (Low Ground Pressure)
Operating weight: ~21,500 – 23,500 lb depending on variant
Hydraulic system: Load-sensing implement hydraulics, separate hydrostatic drive circuits
Blade: 6-way bulldozer blade, ~112-inch typical Standard blade width
Serial plate location: Right side of cab platform, near operator entry

How the 750L differs from the 750H predecessor

Tier 3 emissions compliance — internal engine changes (improved injection, cooled EGR, refined combustion calibration). No DPF aftertreatment yet — that comes with the 750K Tier 4 Interim.
Refreshed cab and electronics — improved HVAC, electronic instrumentation, updated joystick controls.
Refined hydrostatic drivetrain calibration — same dual-path architecture as the 750H with updated control software.
Blade-carrier hardware compatibility — many blade-carrier wear items cross-fit with the 750H. The 117835A1 slider block and 117836A1 wear plate documented mid-class Case dozer cross-fit applies.
Suspension seat introduced or available — the 359121A1 Case / New Holland dozer suspension seat cross-fit includes 750L (among nine machines across H/K/L generations).

How the 750L differs from the 750K successor

No DPF — the 750L has no diesel particulate filter. No DPF regeneration cycles, no ash service intervals, no DPF clogging codes. This is a real maintenance simplification compared to the Tier 4 Interim 750K.
No EGR cooler internal leak risk profile — the 750L uses cooled EGR (Tier 3) but typically a smaller, simpler unit than the 750K's more aggressive Tier 4 Interim EGR system.
Simpler service profile — the 750L is generally considered easier to maintain than the 750K, with fewer emissions-system fault paths.
Cab refresh — the 750K got further cab updates beyond the 750L (electronic display refinements, joystick control updates).

Variants: Standard, LT, LGP

The 750L shipped in three primary track configurations:

Standard — standard-width track, balanced general dozing.
LT (Long Track) — extended-length track frame for additional flotation and stability.
LGP (Low Ground Pressure) — wider grouser pads with extended track frame for soft-ground / wetlands / agricultural-soil work.

Variant affects undercarriage parts (track pads, idlers, frame components). Confirm Standard vs. LT vs. LGP by serial before ordering.

Cummins B-series Tier 3 engine

The 750L engine is part of the Cummins B-series industrial family at the Tier 3 emissions calibration. Same fundamental 4-cylinder architecture as the 750H Tier 2 engine and the 750K Tier 4 Interim engine, but with Tier 3-specific calibration and a Tier 3-appropriate EGR setup.

The Cummins B-series industrial parts ecosystem is broad — filters, injectors, water pump, alternator, turbocharger all source readily through both Case dealer and aftermarket Cummins channels. Browse the Case Dozer Parts hub for current 750L-era engine service kits.

Hydrostatic dual-path transmission

The 750L retains the hydrostatic dual-path architecture introduced on the 750H. Each track has its own variable-displacement pump and hydraulic motor controlled by joystick. The L generation refines the control software relative to the H but uses the same underlying drivetrain hardware architecture.

Hydrostatic service items: charge pump, charge filter, hydraulic motor seals, drive pump bearings, control valve degradation. Hydraulic oil cleanliness is critical.

Blade-carrier and operator-station cross-fit

The 750L shares blade-carrier hardware with the 550H/650G/H/750H/850G/H mid-class Case dozer family via the 117835A1 slider block and 117836A1 wear plate. Operator station: the 359121A1 suspension seat covers the 750L (along with 550H, 650H, 650K, 650L, 750K, 850H, 850K, 850L).

Common 750L service issues

Hydrostatic transmission service

Charge pump wear, control valve degradation, hydraulic motor seal failure, contamination of hydraulic oil from internal wear — same hydrostatic service profile as the broader H/K/L Case dozer family. Hydraulic oil cleanliness matters.

Cummins B-series Tier 3 engine wear

Turbocharger wear is a routine production-run-age item. Symptoms: blue smoke at startup, oil consumption climbing, audible whine outside normal range, visible shaft play. Routine engine accessories (water pump, alternator, starter) reach service intervals at 10,000+ hours.

EGR system service

The Tier 3 EGR system is simpler than the Tier 4 Interim setup on the 750K but still has routine service items — EGR valve fouling, occasional EGR cooler service.

Blade carrier wear plate replacement

Routine sacrificial service items. The 117835A1 slider block and 117836A1 wear plate are routine replacement items.

Cutting edge wear

Cutting edge replacement is the most frequent blade-related service item.

Cab and electronics

The L-generation electronic instrumentation and joystick electronics can develop intermittent fault codes from connector corrosion at production-run age.

Parts we carry

Part #	Part	Notes
359121A1	Suspension seat (Case / New Holland)	Covers 550H + 650H + 650K + 650L + 750K + 750L + 850H + 850K + 850L — single SKU spans nine Case dozers.
117835A1	Slider block (blade carrier)	Broad mid-class Case dozer blade-carrier cross-fit (550H + 650G + 650H + 750H + 850G + 850H). Confirm fitment by serial.
117836A1	Wear plate (blade carrier)	Same mid-class cross-fit as 117835A1.
Filter service kits	750L-specific (Tier 3 Cummins B)	Engine oil, fuel, air, hydraulic filters.
Blade cutting edges & end bits	Mid-class dozer cross-fit (verify by serial)	Standard or severe-duty cutting edges for ~112-inch blade.
Blade cylinder seal kits	750L-specific (verify cylinder dimensions)	Lift, angle, tilt cylinder seal kits.
Track undercarriage	750L-specific by variant (Std / LT / LGP)	Track pads, idlers, rollers, master pins by variant.
Hydrostatic system service parts	Charge pump, charge filter, drive components	Hydrostatic-specific service items.

For the complete 750L parts inventory, browse the Case Dozer Parts hub.

Working on a Case 750L?

The 750L is the Tier 3 hydrostatic mid-large dozer — fewer emissions-system service items than the 750K, broad operator-station cross-fit, and shared blade-carrier hardware with the H-generation family. Our specialists can verify Standard vs. LT vs. LGP fitment by serial.

Mon – Fri, 7:00 AM – 5:00 PM CT

Request a Part

Where the 750L sits in the Case dozer family

The 750L is the Tier 3 L-generation mid-large frame Case crawler dozer, between the Case 650H/L and the 850H/L. Its predecessor is the Case 750H (Tier 1/2) and its successor in the chronological emissions progression is the Case 750K (Tier 4 Interim with DPF). After the 750K came the Case 750M (Tier 4 Final / Stage V).

Broken Tractor Editorial Team

This spotlight was compiled from factory Case service literature for the 750L, CNH parts catalogs, Cummins B-series Tier 3 engine documentation, and the verified BigCommerce catalog at brokentractor.com — including the broad H/K/L Case dozer cross-fit for the 359121A1 suspension seat and the 117835A1 / 117836A1 blade-carrier hardware.
