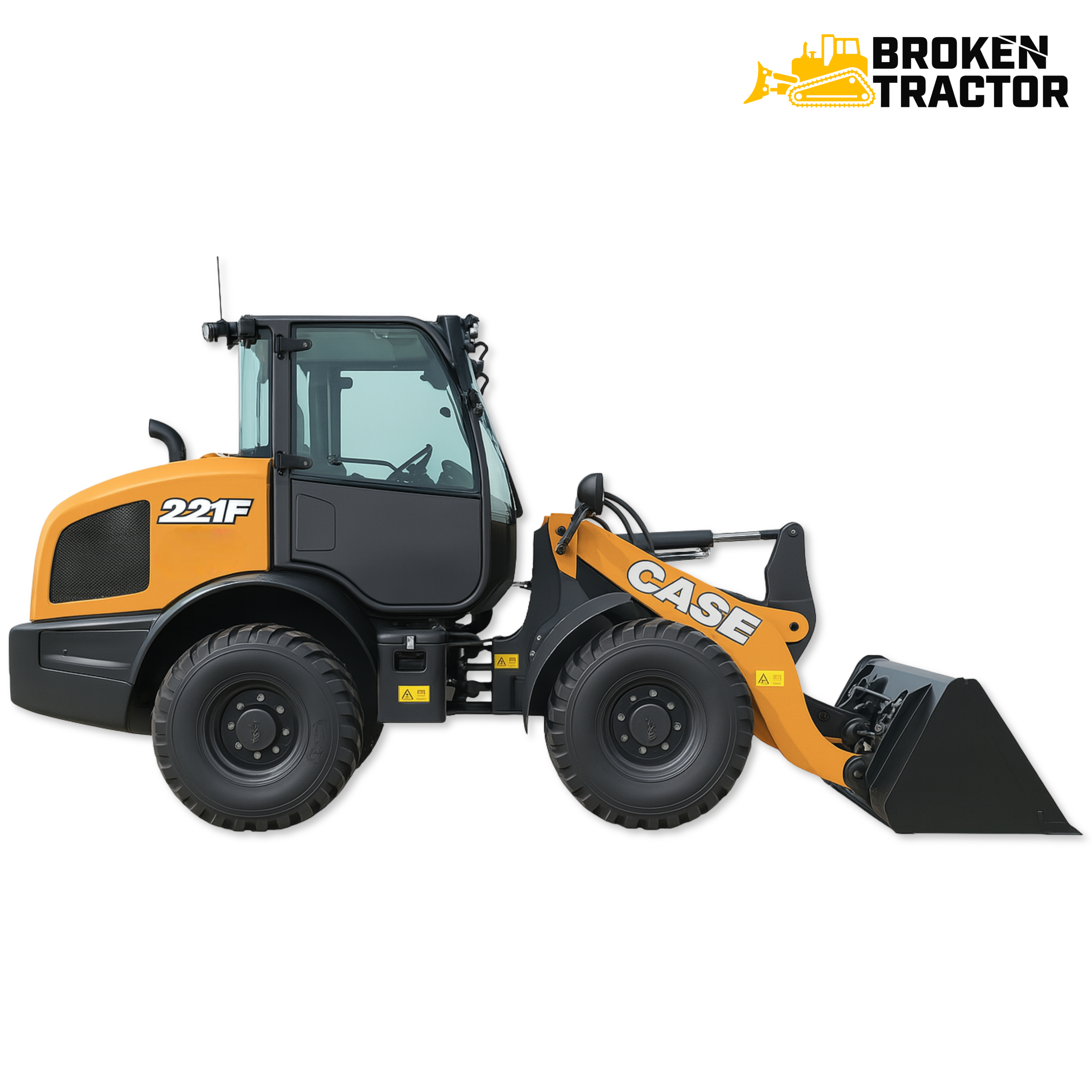

Case 221F Compact Wheel Loader – Parts, Specs & Serial Numbers
exclude_in_klevu_search:
1
Fits Models:
Placeholder
Part #Case 221F Compact Wheel Loader – Parts, Specs & Serial Numbers
Description:
Serial Number Location:
For Case 221F models (manufactured from 2014 onwards), the serial number plate is typically located on the left side of the machine, near the front of the frame.Always verify your serial number when ordering year-specific parts.
Key Specifications
Feature
Specification
Years Manufactured
2014 – Present
Engine Model
FPT F5H FL463 A F004 (4-cylinder diesel)
Net Horsepower
70 HP (52 kW) @ 2,500 rpm
Gross Horsepower
74 HP (55 kW) @ 2,500 rpm
Max Torque
227 lb-ft (308 Nm) @ 1,400 rpm
Displacement
207 cu in (3.4 L)
Transmission Type
Hydrostatic with 2-speed travel
Hydraulic Flow Rate
22.5 gal/min (85 L/min)
Hydraulic Pressure
3,626 psi (250 bar)
Operating Weight
12,547 lbs (5,691 kg)
Bucket Capacity
1.18 cu yd (0.9 m³)
Breakout Force
10,948 lbs (4,966 kg)
Travel Speed (Max)
11.4 mph (18.3 km/h)
Dimensions (L×W×H)
19.26' × 6.11' × 8.62' (5.87 × 1.86 × 2.63 m)
Performance & Design Highlights
Efficient Engine: Equipped with the FPT F5H FL463 A F004 diesel engine, delivering reliable power for various tasks.
Hydrostatic Transmission: Provides smooth and responsive control, enhancing maneuverability.
Compact Design: Offers strong digging performance and efficient material handling in tight spaces.
Durable Construction: Built with robust materials to withstand rigorous job site conditions.
Maintenance & Common Issues
Routine Maintenance
Component
Service Interval
Engine Oil & Filter
Replace every 500 hours
Hydraulic Fluid & Filter
Service every 1,000 hours
Air Filter
Inspect every 250 hours; replace as needed
Fuel Filter
Replace every 500 hours
Transmission Fluid
Replace every 1,000 hours
Cooling System
Clean and inspect every 1,000 hours
Common Issues & Fixes
Issue
Quick Fix
Hydraulic Leaks
Inspect hoses, fittings, seals; replace worn parts
Transmission Slippage
Check hydrostatic system; adjust or replace as necessary
Engine Overheating
Clean radiator; check coolant levels and thermostat
