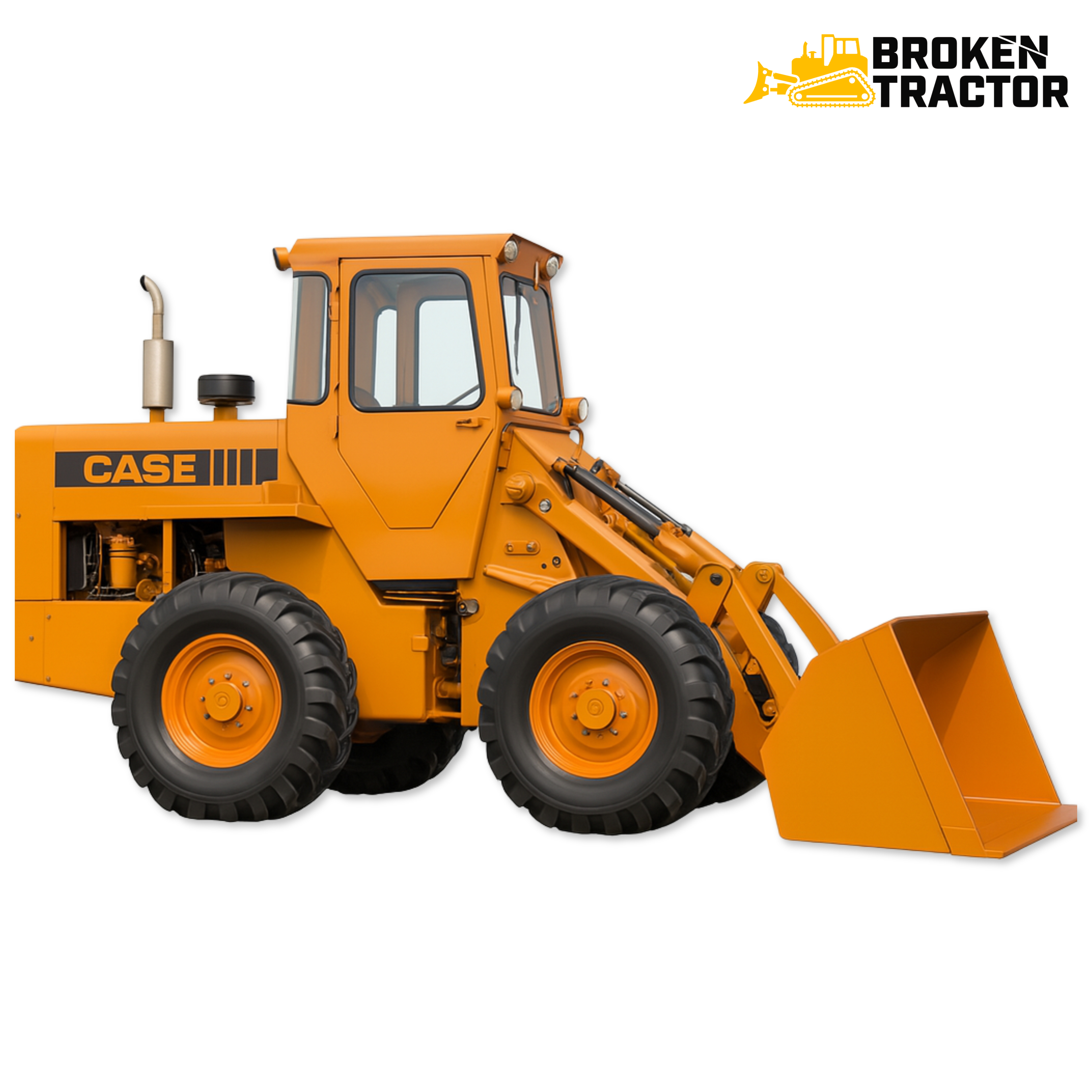

Case W5 Wheel Loader - Parts, Specs

Description:

Serial Number Location

The serial number plate is located on the right side of the loader frame, near the rear articulation pivot or down by the front axle housing. Always verify it before ordering parts to ensure compatibility.

Key Specifications

• Model Years: 1954 – 1960

• Engine: Case 4-cylinder gasoline or optional diesel, approx. 5.0 L

• Net Power: Approx. 85 hp @ 2,200 rpm

• Operating Weight: ~16,500 lb

• Bucket Capacity: 1.75 cubic yards (heaped)

• Rated Operating Capacity: ~5,000 lb

• Bucket Breakout Force: ~12,000 lb

• Transmission: 4-speed powershift (mechanical clutch packs)

• Fuel Tank Capacity: ~45 gallons

• Hydraulic System Capacity: ~22 gallons

• Hydraulic Flow: ~35 gpm

Dimensions

• Length (with bucket): ~19 ft 0 in

• Width (over tires): ~8 ft 0 in

• Height to Top of Cab: ~9 ft 2 in

• Wheelbase: ~8 ft 0 in

• Turning Radius: ~15 ft 0 in

• Travel Speed: Up to 17 mph

Performance & Design Highlights

• Compact & Maneuverable: Ideal for farm and light industrial use

• Simple Mechanical Systems: Easy to maintain with fewer complexities

• Articulated or Rigid Steering: Available depending on serial range

• Robust Build: Heavy steel axles and components handle rough terrain

• Multi-Purpose Attachment Friendly: Supports forks and small brooms

Routine Maintenance

• Engine Oil & Filter: Every 250 hours

• Hydraulic Fluid & Filter: Fluid every 500 hours; filter every 250 hours

• Fuel Filter: Every 250 hours

• Air Filter: Inspect every 100 hours

• Grease Fittings: Daily on all pivot joints and linkage

• Cooling System: Clean radiator fins weekly; flush annually

• Transmission Fluid: Change every 1,000 hours

Common Issues & Fixes

• Hydraulic Leak Points: Replace brittle hoses and check fittings often

• Transmission Slip: Monitor fluid levels, inspect clutch packs, and clean strainers

• Articulation or Axle Play: Re-grease and check for worn bushings and pins

• Brake Drag: Adjust mechanical brakes and inspect linings

• Cooling System Blockage: Clean fins and inspect hoses frequently
