Model Spotlight

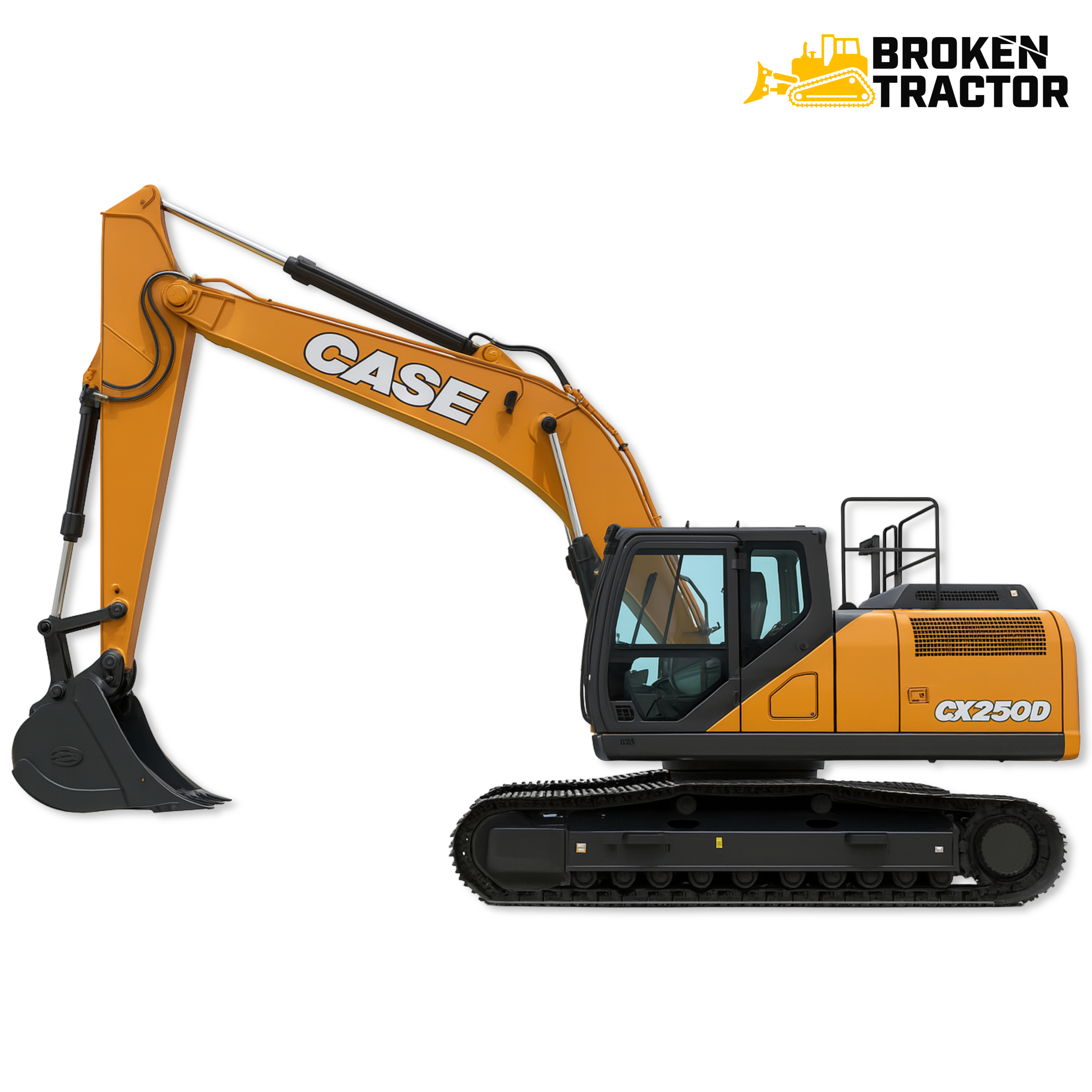

Case CX250D Excavator: 25-Ton D-Series Tier 4 Final Production Class

The Case CX250D is the 25-ton class D-Series excavator — Tier 4 Final emissions, refined cab and control package, and the proven Case hydrostatic dual-path drive on a steel-track undercarriage. It sits between the earlier CX250C and the later CX260E in the Case full-size excavator lineup.

Broken Tractor Editorial Team• Updated May 2026• 8 min read

Where the CX250D fits in the Case excavator line

The CX250D is a 25-ton class D-Series excavator. It sits between the earlier C-Series CX250C and the later E-Series CX260E in Case’s full-size excavator lineup. The D-Series brought the 25-ton Case platform to EPA Tier 4 Final emissions with a refined common-rail diesel, DPF and SCR aftertreatment, modernized cab and joystick controls, and updated electrohydraulic main valve control.

Mechanically the CX250D continues the proven Case full-size excavator architecture: load-sensing main piston pump, electrohydraulic control valves, hydrostatic dual-path propel drive, steel-track undercarriage, and conventional tail swing.

Case CX250D Excavator — Quick Specs

Class: 25-Ton Excavator
Generation: D-Series
Engine: Tier 4 Final Diesel (Common-Rail)
Aftertreatment: DPF + SCR (DEF)
Drivetrain: Hydrostatic Dual-Path
Undercarriage: Steel Track
Tail Swing: Conventional
Serial Plate: Right-hand side of lower cab frame, below the windshield
Predecessor: Case CX250C
Successor: Case CX260E

Locating your serial number On the Case CX250D the serial number plate is located on the right-hand side of the lower cab frame, below the windshield. Confirm the serial before ordering — production-window-specific aftertreatment, ECU, and hydraulic part numbers vary across the D-Series run.

What the D-Series brought to the 25-ton class

Engine. EPA Tier 4 Final common-rail diesel with electronic engine control, cooled EGR, and closed-loop emissions feedback.
Aftertreatment. DPF for particulate control and SCR catalyst with DEF dosing for NOx reduction — new service items not present on the C-Series.
Cab. Sealed-and-pressurized operator station with refined climate control, updated joystick controls, and a full-color monitor display showing engine, hydraulic, propel, swing, and aftertreatment status.
Hydraulics. Updated electrohydraulic main control valve and refined load-sensing pump control for smoother modulation and improved fuel efficiency.
Diagnostics. CAN-bus diagnostics over the in-cab monitor and dealer service tool, with telematics module on equipped units.

Tier 4 Final aftertreatment — service implications The CX250D’s DPF and SCR systems are reliable when fed clean fuel and quality DEF. DEF tank must stay topped up, the DPF will request periodic high-temperature regenerations, and NOx sensors fail occasionally and can trigger derate conditions if not replaced. Factor aftertreatment service into the maintenance budget on any production CX250D.

Engine, hydraulics, and drivetrain

The CX250D runs a Tier 4 Final common-rail diesel through a hydrostatic dual-path drive into a steel-track undercarriage. The main hydraulic pump (load-sensing piston pump) supplies boom, dipper, bucket, swing, and propel circuits through electrohydraulic control valves. Pilot pressure controls the spool positions in response to joystick demand, with the engine ECU and hydraulic ECU coordinating engine load against pump demand for fuel efficiency.

The swing system uses a dedicated swing motor and planetary reduction driving the swing bearing. Propel uses two travel motors with planetary final drives at each track. The undercarriage carries the Case-pattern sealed-and-lubricated steel track chain, rollers, idlers, and recoil springs.

Common service items on the CX250D

Engine internals: Tier 4 Final diesel pistons, rings, sleeves, head gaskets, bearings.
Aftertreatment: DPF service and cleaning, DEF dosing module, SCR catalyst, NOx sensors, DPF differential pressure sensor, EGR cooler.
Fuel system: Common-rail injectors, high-pressure fuel pump, lift pump, primary and secondary fuel filters, water separator.
Cooling system: Radiator, hydraulic oil cooler, charge-air cooler, water pump, thermostat, fan, hoses, belts.
Hydraulic system: Main pump rebuilds, boom / dipper / bucket / swing cylinder seal kits, electrohydraulic control valves, pilot valves, hoses.
Boom and dipper: Pin and bushing service at every joint, bucket pins, thumb attachment hardware, quick-coupler service.
Undercarriage: Steel track chains, track shoes, rollers, idlers, drive sprockets, recoil springs.
Swing system: Swing motor and reduction gear, swing bearing, swing brake.
Electrical / ECU: Engine ECU, hydraulic ECU, instrument cluster / monitor, sensors, harness, telematics module on equipped units.
Cab glass and wipers: KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass cross-fit across Case and Link-Belt excavators.
Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.

Parts we carry for the Case CX250D

Category	Common Parts	Browse
Engine	Tier 4 Final diesel pistons, rings, sleeves, gaskets, bearings	Browse Engine
Aftertreatment	DPF, SCR, NOx sensors, DEF dosing, EGR cooler	Browse Aftertreatment
Fuel System	Common-rail injectors, HP pump, lift pump, filters	Browse Fuel
Cooling	Radiator, water pump, charge-air cooler, hoses	Browse Cooling
Hydraulics	Main pump, cylinders, seal kits, control valves, pilot valves	Browse Hydraulics
Boom / Dipper	Pins, bushings, bucket and quick-coupler hardware	Browse Boom / Dipper
Undercarriage	Steel tracks, rollers, idlers, sprockets, recoil springs	Browse Undercarriage
Swing	Swing motor, reduction gear, swing bearing, brake	Browse Swing
Cab Glass / Wipers	KHN16820 wiper, KHN3046 lower glass, KHN2632 upper glass (Case/Link-Belt cross-fit)	Browse Cab Glass
Electrical / ECU	Engine ECU, monitor, sensors, harness	Browse Electrical
Operator Station	Seat, joysticks, pedal linkage, gauges, HVAC	Browse Operator Station

Need a part for your Case CX250D Excavator?

Tier 4 Final aftertreatment, common-rail injection, and main hydraulic pump parts are the highest-value items on a CX250D. Call our parts team with your machine and engine serial numbers.

Request a Part

What to verify before ordering

Machine serial number. Confirm the serial on the right-hand side of the lower cab frame before ordering year-specific parts.
Engine serial. Engine internal parts must match the engine serial number.
Tier 4 emissions revision. DPF and DEF/SCR components saw running changes during the D-Series production — confirm against the aftertreatment serial tag.
Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension — measure before ordering.
Engine ECU calibration. Common-rail injectors and ECU sensors are calibrated to specific build years.
Bucket and quick coupler. Quick-coupler interface varies — confirm before ordering attachment-side hardware.
Track configuration. Standard and long-undercarriage variants may exist; confirm shoe width and chain pitch.

Why the CX250D still earns a paycheck

The Case CX250D is a 25-ton class production excavator — general site work, utility installation, residential and commercial earthmoving, and mining and quarry work depending on configuration. The D-Series platform brought the proven Case full-size excavator architecture to current emissions standards while retaining the load-sensing hydraulics and hydrostatic propel that have made the Case full-size line a production-grade choice for decades.

Maintenance priorities on a CX250D: clean fuel and tight water separation for common-rail injection, DPF regen behavior tracking, DEF quality, hydraulic oil cleanliness, swing-bearing lubrication, steel-track tension and undercarriage wear monitoring, and pin and bushing service. Broken Tractor maintains parts coverage across the Case excavator family.
