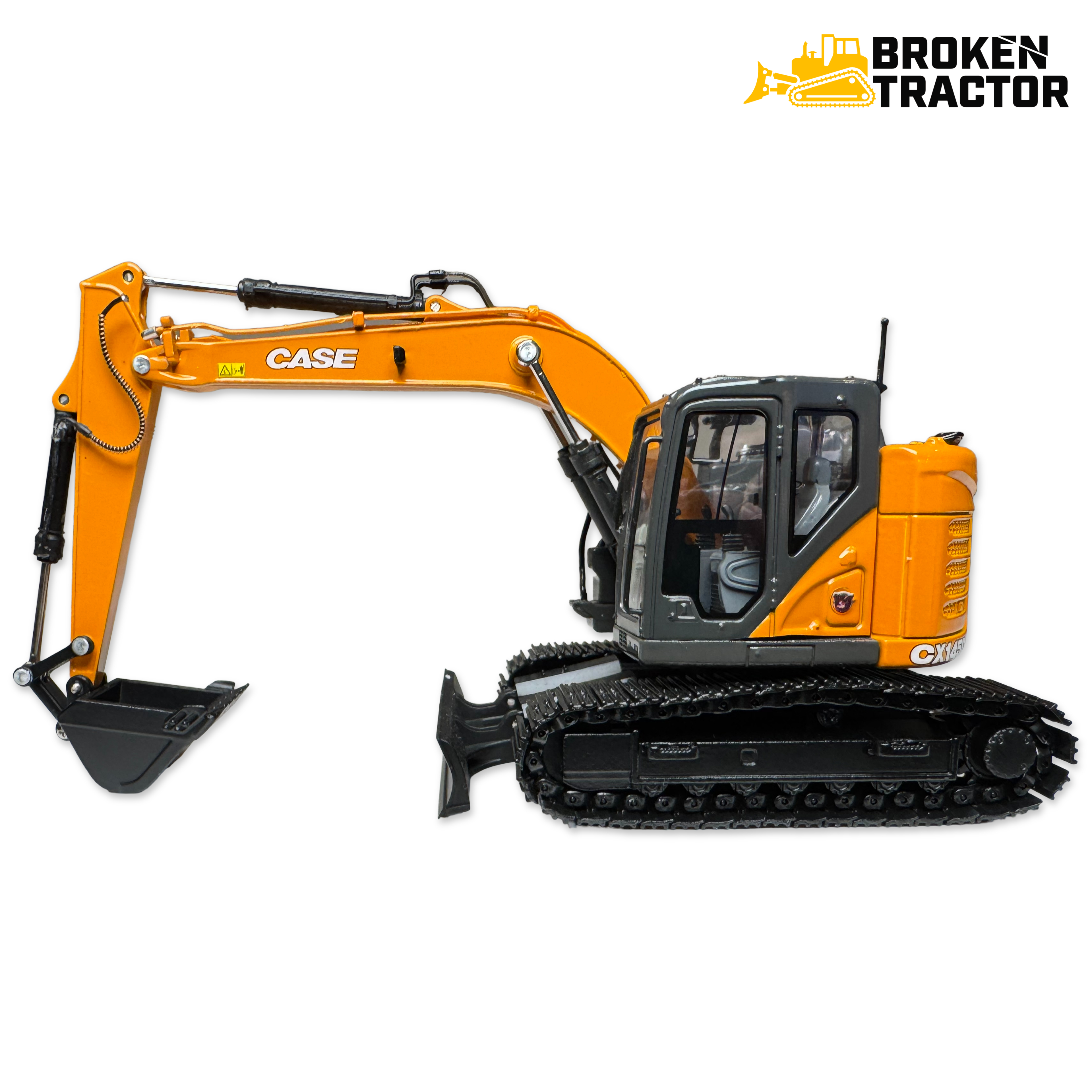

Case CX145D SR Excavator: D-Series Tier 4 Final 14.5-Ton Short-Radius
The Case CX145D SR is a 14.5-ton D-Series short-radius excavator built for confined-space utility, urban, and general site work. The D generation brought Tier 4 Final emissions compliance, electrohydraulic control, and a refined cab to the platform between the smaller CX145C SR and the larger CX160.
Where the CX145D SR fits in the Case excavator line
The CX145D SR is a 14.5-ton class D-Series short-radius excavator. It slots between the CX145C SR and the CX160 in Case’s full-size excavator lineup. Short-radius (SR) geometry keeps the counterweight inside the track width, which is ideal for confined-space utility work, curbside trenching, and tight urban job sites where a conventional tail-swing excavator can’t safely rotate.
The D generation moved the platform to EPA Tier 4 Final emissions with a refined common-rail diesel, DPF and SCR aftertreatment, and electrohydraulic control of the main implement and propel circuits. The cab was modernized with improved climate control, a color monitor, and refined joystick controls.
Case CX145D SR Excavator - Quick Specs
- Class
- 14.5-Ton Short-Radius Excavator
- Generation
- D-Series
- Engine
- Tier 4 Final Diesel
- Aftertreatment
- DPF + SCR (DEF)
- Drivetrain
- Hydrostatic Dual-Path
- Undercarriage
- Steel Track
- Tail Swing
- Short Radius
- Serial Plate
- Frame behind cab near boom base
- Smaller Sibling
- CX145C SR
- Larger Sibling
- CX160
Engine, hydraulics, and drivetrain
The CX145D SR runs a Tier 4 Final common-rail diesel through a hydrostatic dual-path drivetrain into a steel-track undercarriage. The main hydraulic pump - a load-sensing piston pump - feeds boom, dipper, bucket, swing, and propel circuits through electrohydraulic control valves. Electrohydraulic control gives the D-Series smoother modulation and better fine-feathering compared to the earlier C-Series.
Short-radius tail-swing geometry reduces the rear counterweight overhang for confined-space work, at the cost of slightly lower swing-stability at full reach. The undercarriage uses sealed-and-lubricated steel track chain with Case-pattern rollers, idlers, and drive sprockets.
Common service items on the CX145D SR
- Engine internals: Tier 4 Final diesel pistons, rings, sleeves, head gaskets, common-rail injection components.
- Aftertreatment: DPF service and replacement, DEF tank and dosing module, SCR catalyst, EGR cooler service, NOx sensors.
- Fuel system: Common-rail injectors, lift pump, primary and secondary fuel filters, water separator.
- Cooling system: Radiator, water pump, thermostat, fan, charge-air cooler, hoses, belts.
- Hydraulic system: Boom / dipper / bucket / swing cylinder seal kits, main pump rebuild, electrohydraulic control valves, hoses.
- Boom and dipper: Pin and bushing service at every joint, bucket pins, thumb attachment hardware, quick coupler service.
- Undercarriage: Steel track inspection and replacement, rollers, idlers, drive sprockets, recoil springs.
- Swing system: Swing motor and reduction gear service, swing bearing inspection, swing brake.
- Electrical / ECU: Engine ECU, instrument cluster, sensors, harness, telematics module on equipped units.
- Cab glass and wiper: KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass cross-fit across Case and Link-Belt excavators.
- Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.
Parts we carry for the CX145D SR
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Tier 4 Final diesel internals, gaskets, rebuild components | Browse Engine |
| Aftertreatment | DPF, DEF dosing, SCR catalyst, EGR, NOx sensors | Browse Aftertreatment |
| Fuel System | Common-rail injectors, lift pump, filters, water separator | Browse Fuel System |
| Cooling | Radiator, water pump, charge-air cooler, hoses | Browse Cooling |
| Hydraulics | Main pump, swing motor, cylinders, seal kits, valves | Browse Hydraulics |
| Boom / Dipper | Pins, bushings, bucket and quick-coupler hardware | Browse Boom / Dipper |
| Undercarriage | Steel tracks, rollers, idlers, sprockets, recoil springs | Browse Undercarriage |
| Swing | Swing motor, reduction gear, swing bearing, swing brake | Browse Swing |
| Cab Glass / Wiper | KHN16820 wiper, KHN3046 lower glass, KHN2632 upper glass | Browse Cab Glass |
| Electrical / ECU | ECU, sensors, harness, monitor display | Browse Electrical |
| Operator Station | Seat, joysticks, pedal linkage, gauges, HVAC | Browse Operator Station |
Need a part for your Case CX145D SR Excavator?
Common-rail injectors, aftertreatment components, and main hydraulic pump rebuilds are the highest-value items on a CX145D SR. Call our parts team with your machine serial and engine serial.
Request a PartWhat to verify before ordering
- Machine serial number. Confirm the serial on the CX145D SR before ordering year-specific parts - production-window revisions affect hydraulic, electrical, and aftertreatment parts.
- Engine serial. Engine internal parts must match the engine serial.
- Aftertreatment configuration. DPF and DEF/SCR components saw revisions during production - confirm by serial.
- Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension - measure before ordering.
- Engine ECU calibration. Common-rail injectors and ECU sensors are calibrated to specific build years.
- Bucket and quick coupler. Quick-coupler interface varies - confirm before ordering attachment-side hardware.
Why the CX145D SR still earns a paycheck
The Case CX145D SR is a 14.5-ton class production excavator - well-suited to general site work, utility installation, residential and commercial earthmoving, and light mining or quarry work depending on configuration. The short-radius tail-swing geometry adds urban, curbside, and confined-space capability that a conventional tail-swing machine simply can’t match safely.
Maintenance priorities on a CX145D SR are: clean fuel and tight water separation for common-rail injection, DPF regen behavior tracking, DEF quality, hydraulic oil condition, swing-bearing lubrication, steel-track tension and undercarriage wear monitoring, and pin / bushing service at every boom and dipper joint. Broken Tractor maintains parts coverage across the Case CX-series excavator family.
