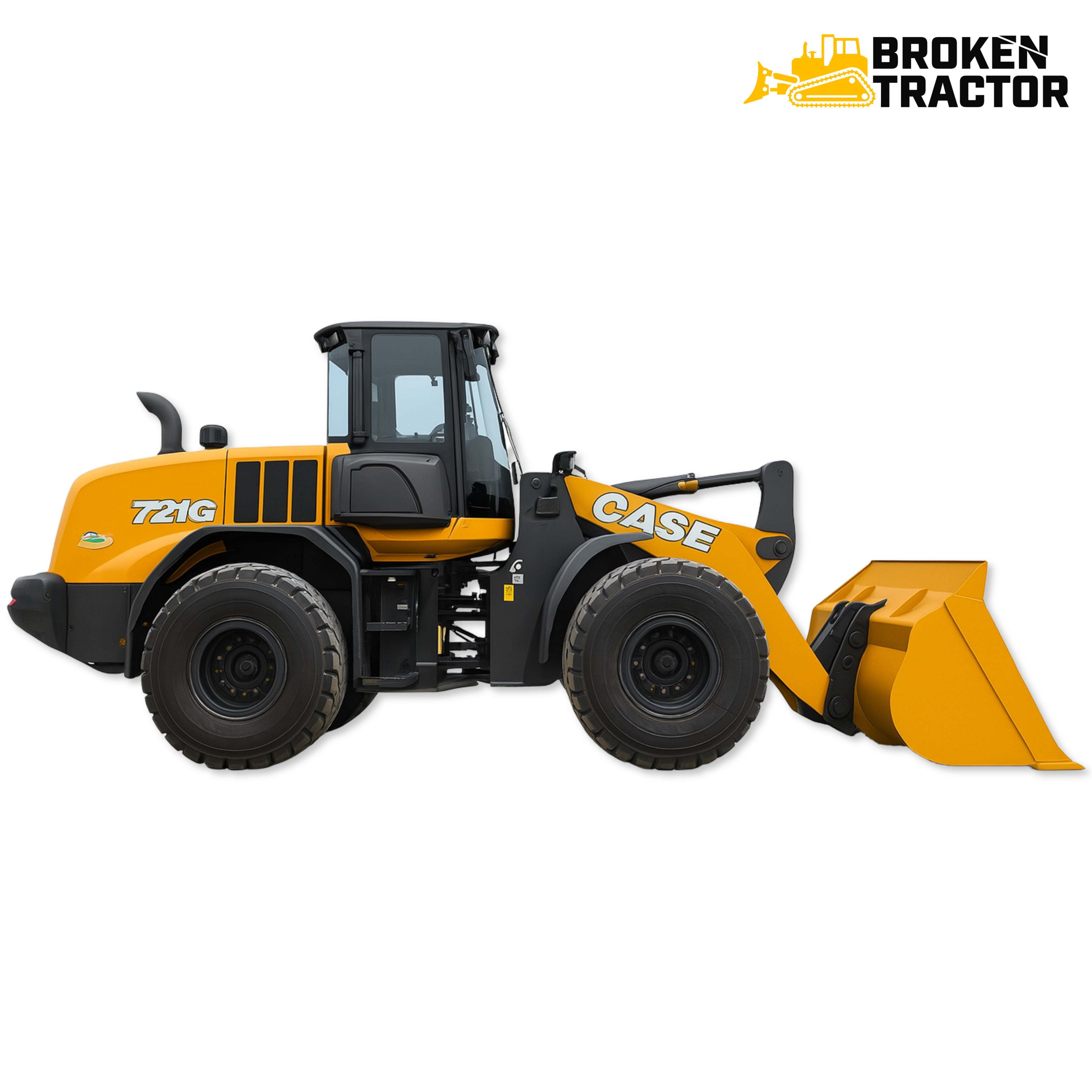

Case 721G Wheel Loader – Parts, Specs

Description:

Serial Number Location:

For Case 721G models (introduced in 2017 and still in production), the serial number plate is typically located on the left side of the machine near the articulation joint, just above the front axle and behind the front left tire. Always verify the serial number before ordering parts, especially to confirm compatibility with emissions tier versions and electronic controls.

Key Specifications

Years Manufactured: 2017 – Present

Engine Model: FPT N67, 6.7L (Tier 4 Final compliant – no DPF required)

Net Horsepower: 195 HP @ 1,800 rpm

Maximum Torque: 711 lb-ft @ 1,800 rpm

Displacement: 409 cu in (6.7 L)

Transmission Type: 5-speed Powershift with lock-up torque converter

Hydraulic Flow Rate: 43.6 gal/min

Hydraulic Pressure: 3,626 psi

Operating Weight: Approx. 32,600 lbs

Bucket Capacity: 3.2 – 3.8 cubic yards

Breakout Force: 31,357 lbs

Top Travel Speed: 25 mph

Dimensions (L×W×H): Approx. 28.3 ft × 8.2 ft × 11.3 ft

Performance & Design Highlights

DPF-Free Emissions System: The 721G meets Tier 4 Final emissions standards using SCR (Selective Catalytic Reduction) without requiring a diesel particulate filter, reducing maintenance frequency.

CASE G Series Command Center: Features a touchscreen display, multi-function controller, customizable work modes, and integrated telematics.

Improved Cooling System: Mid-mounted cooling module and rear-mounted engine improve weight balance and provide easy access for maintenance.

Selectable Power Modes: Economy, Standard, and Max performance settings allow operators to tailor fuel efficiency and responsiveness.

Refined Operator Cab: Low-noise environment with ergonomic layout, optional rearview camera, and suspended seat for improved comfort over long shifts.

Routine Maintenance

• Engine Oil & Filter: Replace every 500 hours

• Hydraulic Fluid & Filters: Replace every 1,000 hours

• Transmission Fluid: Change every 1,000 hours

• Fuel Filters: Replace every 500 hours

• Air Filters: Inspect every 250 hours; replace as needed

• Cooling System: Clean and flush every 2,000 hours or annually in harsh environments

• Grease Points: Lubricate all loader pivot pins daily for optimal component life

Common Issues & Fixes

Hydraulic Leaks Near Loader Arms: Inspect high-pressure hoses and replace with updated assemblies. Be sure to route hoses properly to prevent abrasion.

Intermittent Cab Display Loss: Usually caused by loose CAN connections—check behind the display and reseat all wiring.

Brake Pedal Resistance: Often a sign of air or failure in the brake accumulator—bleed system and inspect for internal leaks.

Overheating in Dusty Environments: Clean the cooling pack frequently and inspect fan drive system for faults.

Stiff Shifting in Cold Starts: Allow proper warm-up time and inspect shift solenoids for moisture-related faults.

Premature Tire Wear: Keep tire pressure within spec and rotate regularly; misalignment due to heavy loads can accelerate wear.
