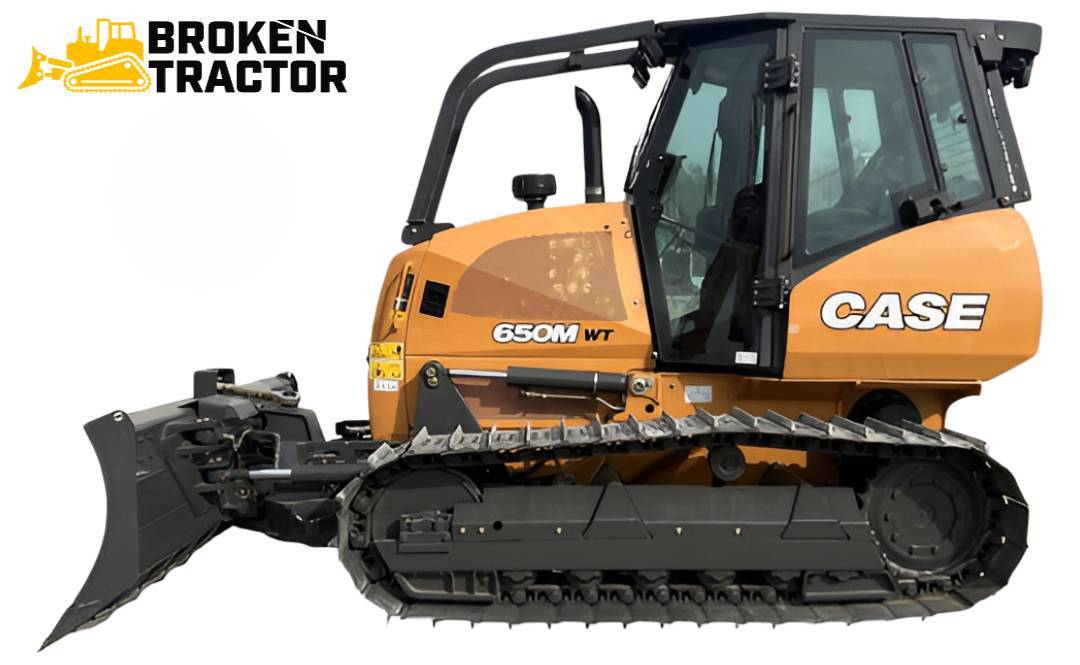

Case 650M Crawler Dozer: Specs, Parts & Common Issues

Produced 2021 onward, the Case 650M is the current-generation mid-frame Case crawler dozer — FPT-built Tier 4 Final / Stage V four-cylinder turbocharged diesel, hydrostatic dual-path transmission, and a substantially refreshed cab with Case SiteWatch / LiveLink Pro telematics and the latest electronic instrumentation. The M-generation builds on the L-generation Tier 4 Final SCR + DEF architecture with cab, controls, and telematics updates.

BT

Broken Tractor Editorial Team• Updated May 2026• 10 min read

The Case 650M Crawler Dozer is the current-production mid-frame Case crawler dozer, in production from approximately 2021 onward. The M-generation is the latest evolution of the modern hydrostatic mid-class Case dozer line and continues the FPT NEF Tier 4 Final SCR + DEF emissions architecture introduced on the 650L. Cab, electronics, and telematics see another refresh on the M, with Case SiteWatch / LiveLink Pro standard or available depending on configuration.

For working operators, the 650M's biggest functional improvements over the 650L are in the operator station — better visibility, more refined HVAC, integrated LiveLink Pro telematics, and additional joystick proportional-control software calibration for low-speed finish grading. The drivetrain and basic chassis architecture continue forward from the 650L.

At-a-glance specifications

How the 650M differs from the 650L predecessor

• Cab refresh — better visibility, refined HVAC, updated instrumentation panel, and improved operator ergonomics. LiveLink Pro telematics integrated by default on many configurations.
• FPT NEF engine continuation — same engine family as the 650L with calibration and emissions software updates for current Tier 4 Final / Stage V compliance.
• Refined hydrostatic calibration — additional software refinement for low-speed grading, joystick proportional response, and steering precision.
• LiveLink Pro telematics — remote monitoring, fault diagnostic alerts, fleet management data, and operational analytics standardized.
• Operator-station parts cross-fit — the 359121A1 Case / New Holland dozer suspension seat covers the broader H/K/L Case dozer family; confirm fitment by serial.

FPT NEF engine (Tier 4 Final / Stage V)

The 650M uses the FPT NEF four-cylinder turbocharged diesel — the same engine family as the 650L with updated calibration for current emissions regulations. FPT NEF engines share architecture with the Iveco / Case IH / New Holland agricultural and industrial lineup, and parts service is supported through the FPT and Case dealer networks.

Routine engine service items: filters (engine oil, fuel, air, DEF supply filter), water pump, alternator, turbocharger. As a current-production machine, OEM parts are the primary source.

Tier 4 Final SCR + DEF aftertreatment

The 650M continues the SCR + DEF aftertreatment architecture introduced on the 650L. DEF is injected into the exhaust stream upstream of the SCR catalyst, breaking NOx into harmless nitrogen and water. Service items: DEF tank refill, DEF supply pump, DEF lines (heated lines for cold-weather operation), DEF injector, NOx sensors (upstream + downstream), and the SCR catalyst itself.

DEF storage and handling remain operator concerns — use only ISO 22241-compliant DEF, watch DEF freezing in cold-weather operation, and replace DEF that's been stored too long or at high temperatures.

Hydrostatic dual-path transmission

The 650M retains the hydrostatic dual-path architecture used since the 650H. Each track has its own variable-displacement pump and hydraulic motor controlled by joystick. The M generation refines the calibration further for low-speed grading and finer proportional control. The underlying transmission hardware is unchanged from the 650L; what's new is the software calibration and integration with LiveLink telematics for fault reporting.

Hydrostatic service items remain consistent across H/K/L/M generations: charge pump, charge filter, hydraulic motor seals, drive pump bearings, control valve degradation. Hydraulic oil cleanliness is critical — the hydrostatic system is intolerant of contamination.

Variants: Standard, LT, LGP

The 650M shipped in three primary track configurations:

• Standard — standard-width track, balanced general-purpose dozing.
• LT (Long Track) — extended-length track frame for additional flotation and stability.
• LGP (Low Ground Pressure) — wider grouser pads and extended track frame for soft-ground / wetlands / agricultural-soil work.

Variant affects undercarriage parts. Confirm Standard vs. LT vs. LGP by serial before ordering.

LiveLink Pro telematics

Case SiteWatch / LiveLink Pro provides remote monitoring of the 650M's operational data — engine hours, fuel and DEF consumption, fault codes, location tracking, and operational analytics. For fleet operators, LiveLink Pro turns the 650M into a connected machine: proactive maintenance scheduling becomes practical, fault codes are visible remotely before the operator notices a warning, and fuel/DEF burn rates feed analytics for site productivity.

Common 650M service items

DEF system service

Same SCR + DEF service profile as the 650L. DEF quality, DEF tank ventilation, DEF supply pump, DEF injector, and heated DEF lines are all routine service items. Many SCR-system fault codes trace back to DEF quality or supply rather than the SCR catalyst itself.

Routine filter changes

Engine oil, fuel, air, DEF supply, and hydraulic filter changes on schedule. The hydrostatic system in particular is intolerant of contamination — follow the recommended filter intervals.

NOx sensor service

NOx sensors are routine wear items. As the 650M fleet ages, NOx sensor replacement will become a routine production-run service item (similar pattern to the 650L).

Cab and electronics

The 650M's electronic instrumentation, joystick electronics, and LiveLink telematics modules are sophisticated and integrated. Most diagnostic codes resolve with software updates or connector service; some require dealer-level diagnostics.

Blade cutting edge wear

Routine blade-related service item. End bits wear faster than the center cutting edge.

Cab and operator station

The M-generation cab is built for operator comfort over long shifts. Seat suspension service, HVAC service, and floor mat replacement are routine operator-station service items.

Cross-fit notes

As a current-production machine, the 650M's parts are mostly available as new OEM. Cross-fit with the 650L is strong on chassis and undercarriage components but less broad on engine, electronics, and emissions parts (which have generation-specific calibration and software). Confirm by part number against serial before assuming a 650L part fits a 650M.

The 359121A1 Case / New Holland suspension seat is the documented seat across the H/K/L Case dozer family — broad cross-fit on operator-station hardware. Confirm fitment by serial.

Parts we carry

For the complete 650M parts inventory, browse the Case Dozer Parts hub or contact the parts desk.

Where the 650M sits in the Case dozer family

The 650M is the current-production mid-frame Case crawler dozer, sitting between the Case 550M and the Case 850M (current-production mid-class line). Its predecessor is the Case 650L (introduced Tier 4 Final SCR + DEF aftertreatment), and the M continues that emissions architecture with cab, controls, and telematics refinements.
