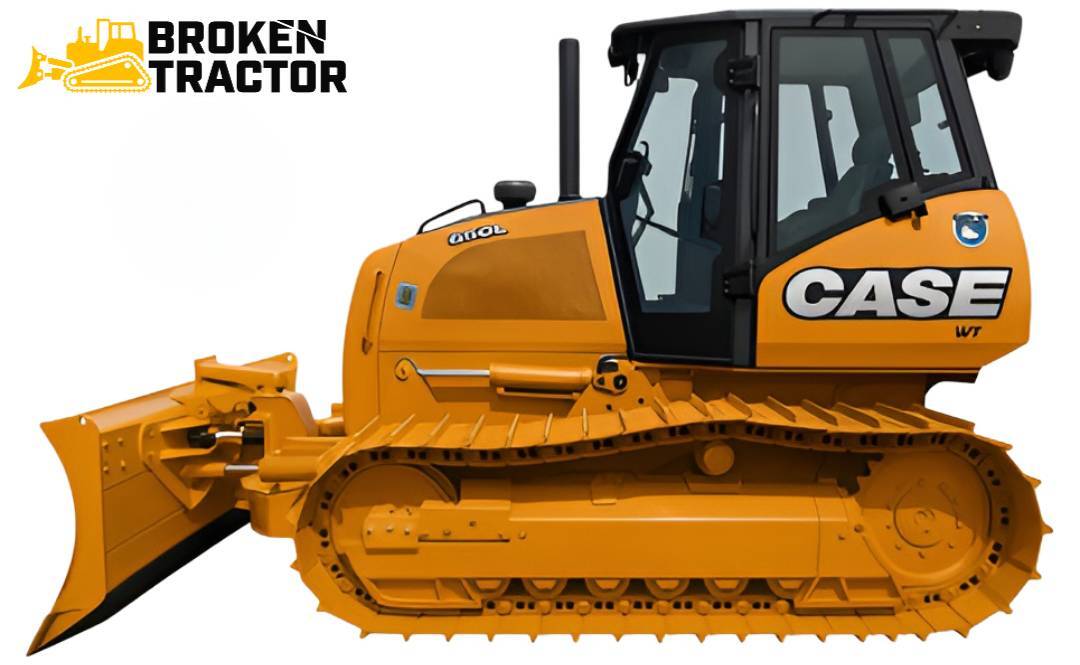

Case 650L Crawler Dozer: Specs, Parts & Common Issues

Produced from approximately 2015 onward, the Case 650L is the L-generation mid-frame Case crawler dozer - Tier 4 Final emissions compliance with SCR (selective catalytic reduction) + DEF (diesel exhaust fluid) aftertreatment, FPT-built Cummins-derived four-cylinder turbocharged diesel, and a continued hydrostatic dual-path drivetrain. The L generation eliminated the DPF used on the 650K Tier 4 Interim engine in favor of SCR - a substantial emissions-system architecture change.

BT

Broken Tractor Editorial Team• Updated May 2026• 11 min read

The Case 650L Crawler Dozer is the L-generation mid-frame Case crawler dozer, in production from approximately 2015 onward. The L generation continues the hydrostatic dual-path drivetrain architecture from the 650H and 650K and adds Tier 4 Final emissions compliance via SCR + DEF aftertreatment. SCR (selective catalytic reduction) uses diesel exhaust fluid (DEF, a urea-water solution) injected into the exhaust stream to break NOx into harmless nitrogen and water. The 650L's emissions architecture is a significant change from the 650K's Tier 4 Interim cooled-EGR-plus-DPF setup.

Operator station and electronics got another refresh on the L: improved LiveLink telematics, electronic instrumentation, and joystick controls with on-throttle proportional behavior. Hydrostatic drivetrain calibration was refined for smoother low-speed grading performance.

At-a-glance specifications

How the 650L differs from the 650K predecessor

• Tier 4 Final SCR + DEF aftertreatment - replaces the 650K's cooled EGR + DPF. SCR uses urea (DEF) injection into the exhaust to break down NOx. Eliminates DPF ash service; adds DEF tank refill and DEF quality concerns.
• FPT NEF engine - the 650L moves to the FPT (Fiat Powertrain Technologies) NEF four-cylinder family, replacing the Cummins B-series used on prior generations. FPT NEF engines share architecture with the Iveco / Case IH agricultural lineup.
• LiveLink telematics - the 650L integrates Case SiteWatch / LiveLink remote monitoring as standard or option, depending on configuration.
• Updated hydrostatic drivetrain calibration - refined control for low-speed precision grading.
• Suspension seat unchanged - the 359121A1 suspension seat fits the 650L (same broad H/K/L Case dozer cross-fit).

FPT NEF engine family

The FPT (Fiat Powertrain Technologies) NEF four-cylinder engine family is built by the Fiat industrial powertrain group. NEF engines are shared with the Iveco / Case IH / New Holland agricultural and industrial lineup, and parts service is supported through the FPT and Case dealer networks.

Routine engine service items: filters (engine oil, fuel, air, DEF supply filter), water pump, alternator, turbocharger. The DEF supply filter is a new service item not present on the 650K - it filters the DEF before injection into the SCR catalyst.

Browse the Case Dozer Parts hub for current 650L-era engine and emissions service kits.

Tier 4 Final SCR + DEF aftertreatment

The SCR + DEF aftertreatment system has several routine service points:

DEF tank and DEF quality

The DEF tank is separate from the diesel fuel tank. Operators refill DEF on a separate schedule - DEF consumption rate is typically 3-5% of diesel consumption depending on duty cycle. DEF freezes below approximately 12°F (-11°C) and degrades when stored for extended periods or at high temperatures. Contaminated or degraded DEF causes SCR-system fault codes and reduced power.

DEF supply pump and DEF lines

The DEF supply pump pulls DEF from the tank, filters it, and pressurizes it for injection into the exhaust stream. Pump failure is a routine service item at production-run age, as is DEF line wear (especially the heated lines that prevent DEF freezing in cold operation).

DEF injector and SCR catalyst

The DEF injector atomizes DEF into the exhaust upstream of the SCR catalyst. Injector clogging from DEF deposits is a routine fault. The SCR catalyst itself has a long service life (10,000+ hours in typical service) but does need eventual replacement.

NOx sensors

Two NOx sensors monitor exhaust before and after the SCR catalyst - they verify that SCR is performing correctly. Sensor failure is routine production-run-age wear.

Hydrostatic dual-path transmission

The 650L retains the hydrostatic dual-path architecture used since the 650H. Each track has its own variable-displacement pump and hydraulic motor. The L generation refines the calibration for smoother low-speed grading and finer joystick proportional control.

Hydrostatic service items remain consistent across H/K/L generations: charge pump, charge filter, hydraulic motor seals, drive pump bearings, control valve degradation. Hydraulic oil cleanliness is critical - the hydrostatic system is intolerant of contamination.

Variants: Standard, LT, LGP

The 650L shipped in three primary track configurations:

• Standard - standard-width track, balanced general-purpose dozing.
• LT (Long Track) - extended-length track frame for additional flotation and stability.
• LGP (Low Ground Pressure) - wider grouser pads and extended track frame for soft-ground / wetlands / agricultural-soil work.

Variant affects undercarriage parts. Confirm Standard vs. LT vs. LGP by serial before ordering.

Cross-fit with the H/K Case dozer family

Several 650L components carry forward from the 650K and 650H - particularly operator-station and blade-carrier hardware. Notable confirmed cross-fits:

• The 359121A1 Case / New Holland dozer suspension seat with headrest covers the 650L (along with 550H, 650H, 650K, 750K, 750L, 850H, 850K, 850L).
• Many blade-carrier slider blocks and wear plates share part numbers across H/K/L generations. Confirm by part number against your serial.

Engine and emissions-system parts are 650L-specific (FPT NEF + Tier 4 Final SCR architecture).

Common 650L service issues

DEF system service

DEF quality, DEF tank ventilation, DEF supply pump, DEF injector, and the heated DEF lines are all routine production-run-age service items. Use only ISO 22241-compliant DEF and confirm storage conditions. Many 650L SCR-system fault codes trace back to DEF quality or DEF supply problems rather than the SCR catalyst itself.

NOx sensor failure

Both upstream and downstream NOx sensors are routine wear items. Sensor replacement is a defined service procedure. Aftermarket sensor availability is generally good.

FPT NEF engine service

Routine engine service items (filters, water pump, alternator, turbocharger) are supported through both Case dealer and FPT parts channels.

Hydrostatic transmission service

Same hydrostatic-system service profile as the H and K generations - charge pump, control valve, motor seal, oil contamination. Hydrostatic diagnosis usually requires dealer service tools for pressure testing.

Blade carrier wear plate replacement

Routine sacrificial service item. Replace as the blade carrier shows play or visible wear.

Cutting edge wear

Cutting edge replacement is the most frequent blade-related service item. End bits wear faster than the center cutting edge.

LiveLink and electronic faults

LiveLink and electronic instrumentation can develop intermittent faults from connector corrosion at production-run age. Most diagnostic codes resolve with a connector clean or replacement; some require dealer-level diagnostics.

Parts we carry

For the complete 650L parts inventory, browse the Case Dozer Parts hub.

Where the 650L sits in the Case dozer family

The 650L is the L-generation mid-frame Case crawler dozer, sitting between the Case 550L and the Case 850L. Its predecessor is the Case 650K (Tier 4 Interim, EGR + DPF) and its successor is the Case 650M - which continues Tier 4 Final SCR with additional cab and electronics updates.
