Case 580K Pin Kits

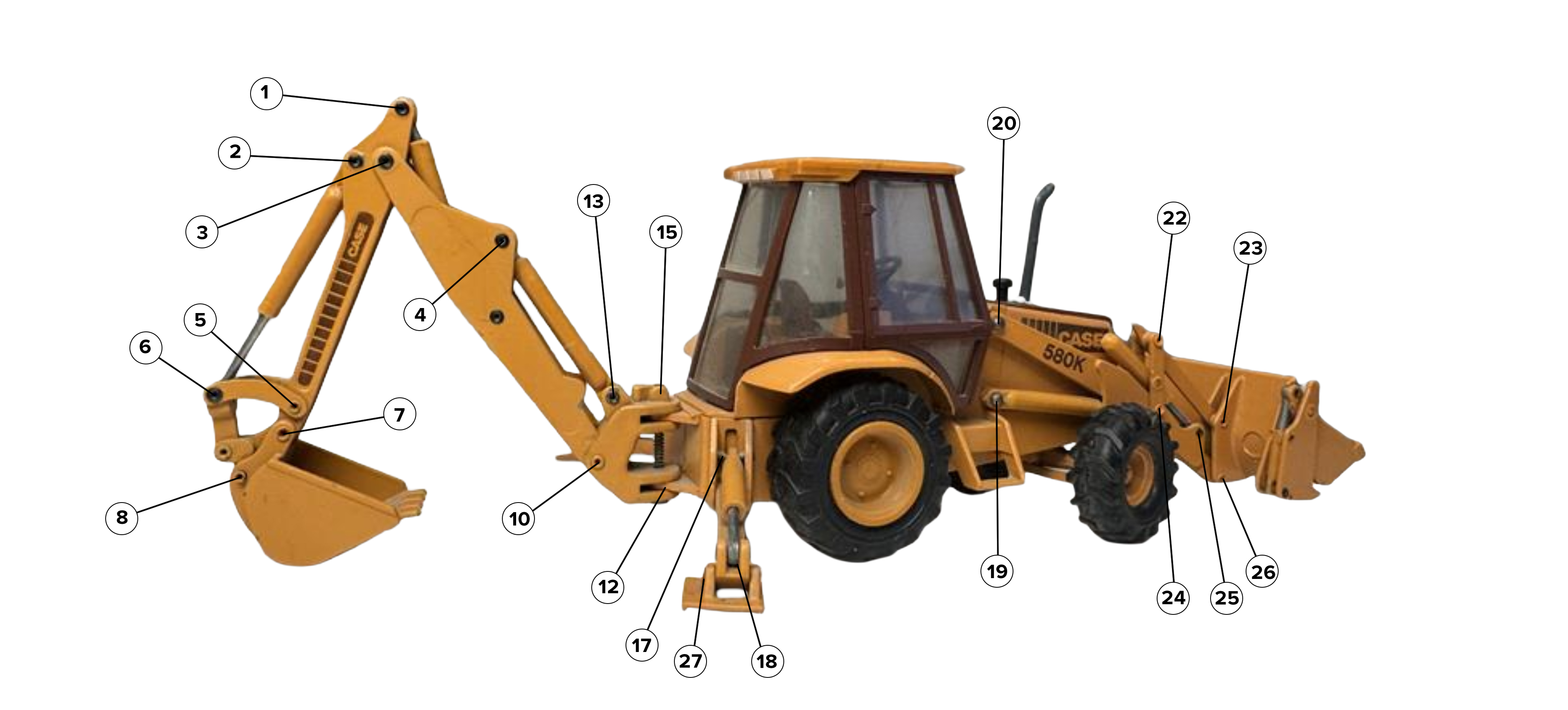

Each number on the image is a "Ref #" that can be matched on the table below.

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Mounts dipper cylinder rod end to dipper stick Includes: (1) Dipper Cylinder to Stick Pin (4) Washers (2) Spacers (2) Snap Rings (4) Bushings (varied sizes) (2)...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Mounts bucket cylinder rod end to dipper stick Includes: (1) Bucket Cylinder to Stick Pin (2) Spacers (2) Washers (2) Snap Rings (4) Bushings (varied sizes) (2)...

Fits Models At A Glance:Case 580 Series: 580K Key Notes: Kit weight: 20 lbs (9.07 kg) Application: Boom to dipper stick Material: Hardened steel pin, high-wear bushings Location: First hole pivot joint at boom-dipper linkage Notes: Includes...

Case 580K Pin Kit, Boom Cylinder to Boom D136518K     D136518 Pin 1 135-824 Grooved Pin 1 D136565 Bushing 1 D137217 Bushing 1 113-700 Bolt 1 D133631 Washer 1 G108417 Bushing 2 219-1 Zerk 1 D123655 Seal 2

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Connects dipper link to the dipper stick on the backhoe arm Includes: (1) Dipper Link to Stick Pin (9) Bushings (varied sizes) (4) Washers (4) Seals (2) Snap...

Fits Models At A Glance: Case 580 Series: 580 Super K Key Notes: Dimensions: Approx. 30 lbs Application: Connects the Y link to the bucket link and cylinder rod on backhoe loader Material: Heat-treated steel pin, precision bushings, greasable...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Key Notes: Application: Mounts backhoe bucket to quick coupler Includes: (1) Coupler to Bucket Pin (4) Bushings (varied sizes) (2)...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Key Notes: Application: Connects 12" wide bucket to standard dipper stick on backhoe arm Includes: (1) Bucket to Dipper Stick Pin (7)...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Connects the boom assembly to the swing tower Includes: (2) Boom to Tower Pins (4) Bushings (4) Seals (2) Grease Zerks Why Choose Broken Tractor? ✅ Precision Fit✅ Built...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Connects boom cylinder base to swing tower bracket Includes: (1) Boom Cylinder Mounting Pin (2) Bushings (1) Grease Zerk Why Choose Broken Tractor? ✅ Precision Fit✅ Built...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Secures lower swing tower mount to chassis frame Includes: (1) Swing Tower to Chassis Pin (1) Large Bushing (1) Small Bushing (2) Snap Rings (3) Shims (2 standard, 1...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Weight: 7 lbs. (3.18 kg) Application: Mounts swing cylinder base to chassis frame Includes: (1) Swing Cylinder to Chassis Pin (1) Mounting Bolt (1) Grease Zerk (2) Bushings (1)...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K Key Notes: Application: Connects upper swing tower bracket to chassis frame Includes: (1) Top Mount Pin (3) Bushings (1) Shim (1) Snap Rings (1) Grease Zerk Why Choose Broken...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Connects stabilizer leg assembly to chassis frame Includes: (1) Leg to Chassis Pin (2) Small Bushings (2) Large Bushings (2) Snap Rings Why Choose Broken Tractor? ✅...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Weight: 8 lbs. (3.63 kg) Application: Connects base end of stabilizer cylinder to chassis/frame Includes: (1) Chassis Mount Stabilizer Cylinder Pin (2) Snap Rings (2) Bushings (1)...

Fits Models At A Glance: Case Backhoe: 580 Super E, 580K Key Notes: Application: Connects rod end of stabilizer cylinder to stabilizer leg Includes: (1) Stabilizer Cylinder to Leg Pin (2) Bushings (2) Snap Rings (1) Grease Zerk Why...

Case 580K, 580 Super K Pin Kit, Loader Lift Cylinder to Loader Frame D135604K     D135604 Pin 40mm OD x 152mm L 1 800-44040 Snap RIng 2 495-81294 Washer 2 D127833 Seal 2 D144895 Bushing 2 800-44035 Snap RIng 1 219-1 Zerk 1

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K Key Notes: Application: Connects loader main frame to machine chassis Includes: (1) Loader Frame to Chassis Pin (4) Bushings (4) Standard Washers (2) Snap Rings Why Choose...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 590 Series Key Notes: Application: Connects bucket cylinder link to loader drag link Includes: (1) Bushing (1) Bolt (1) Lock Nut (2) Washers Why Choose...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K Key Notes: Application: Connects loader bucket drag link to the bucket Includes: (1) Drag Link to Bucket Pin (2) Bushings (2) Snap Rings (1) Grease Zerk Why Choose Broken...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K Key Notes: Application: Mounts bucket cylinder link to loader frame Includes: (1) Spacer (4) Bushings (1) Bolt (1) Lock Nut (2) Washers Why Choose Broken Tractor? ✅ Precision...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K Key Notes: Application: Connects base end of bucket cylinder to loader frame Includes: (1) Loader Bucket Cylinder Rod to Frame Pin (2) Snap Rings (1) Grease Zerk Why Choose...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K Key Notes: Application: Connects loader frame to bucket for pivot action Includes: (1) Frame to Bucket Pin (3) Bushings (2) Snap Rings (1) Grease Zerk Why Choose Broken...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Weight: 7 lbs. (3.18 kg) Application: Connects stabilizer leg to foot with cleat-style (dirt) pad Includes: (1) Pin from cleat-style...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 590 Series Key Notes: Weight: 6 lbs. (2.72 kg) Application: Connects stabilizer leg to street-style stabilizer pad Includes: (1) Pin from street pad to stabilizer...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Application: Connects stabilizer leg to flip-over style outriggers (street or rubber pad type) Function: Secures the flip pad assembly to...

Fits Models At A Glance: Case Backhoe: 580K, 580L, Super K, Super L, 590 Turbo, 590L, 590SL, 590SM Key Notes: Weight: 7 lbs. (3.18 kg) Application: Mounts coupler bracket to Y-link on backhoe boom Includes: (1) Coupler to Y-Link Pin (2)...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Series Key Notes: Weight: 3 lbs. (1.36 kg) Application: Bushings for connection between loader bucket tilt cylinder rod and loader...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Connects rod end of dipper cylinder to boom Includes: (1) Dipper Cylinder to Boom Pin (1) Grooved Retaining Pin (1) Mounting Bolt (1) Washer (4) Bushings (varied...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Application: Connects swing cylinder rod end to swing tower assembly Includes: (1) Swing Cylinder Rod Pin (6) Bushings (varying sizes) (1) Grease Zerk Why Choose Broken Tractor? ✅...

Fits Models At A Glance: • Universal Fit: Designed for multiple equipment types, including dozers, excavators, backhoes, and loaders. Key Notes: • Material: Solid steel construction for maximum impact resistance.• Function: Drives in or...

REF # Image Fits Model Description Part # Price Product Details
1 D138022-Case 580K Backhoe Dipper Cylinder to Dipper Stick Pin Kit See Details 580K Pin Kit, Dipper Cylinder to Dipper Stick D138022K-6 $174.00 View Info
2 Case 580K Backhoe Bucket Cylinder to Dipper Stick Pin Kit See Details 580K Pin Kit, Bucket Cylinder to Dipper Stick D138022K-5 $184.00 View Info
3 Backhoe Boom to Dipper Pin Kit (First Hole) for Case 580K See Details 580K Pin Kit, Boom to Dipper Stick D137218K-4 $155.00 View Info
4 Case 580K Pin Kit, Boom Cylinder to Boom See Details 580K Pin Kit, Boom Cylinder to Boom D136518K $354.00 View Info
5 Case 580K Backhoe Dipper Link to Dipper Stick Pin Kit See Details 580K Pin Kit, Dipper Link to Dipper Stick D138047K-1 $380.00 View Info

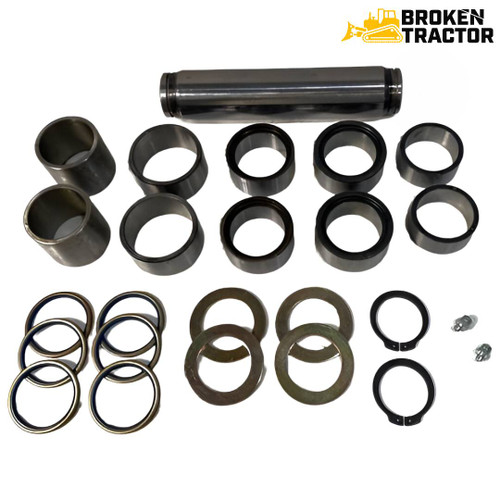

6 Case 580K Pin Kit, Y Link to Bucket Link & Bucket cylinder Rod See Details 580K Pin Kit, Y Link to Bucket Link to Bucket Cylinder Rod D138047K $285.00 View Info
7 Case 580K, 580 Super K, 580L, 580 Super L Pin Kit, Coupler To Backhoe Bucket See Details 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Pin Kit, Bucket to Standard Dipper Stick D37614K-1 $150.00 View Info
7 Case 580K, 580 Super K, 580L, 580 Super L Pin Kit, Bucket to Dipper See Details 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Pin Kit, 12" Bucket to Standard Dipper Stick D150619K-1 $174.00 View Info
10 Case 580K Backhoe Boom to Swing Tower Pin Kit See Details 580K Pin Kit, Boom to Swing Tower D140093K $340.00 View Info
10 Case 580K Backhoe Boom Cylinder to Swing Tower Pin Kit See Details 580K Pin Kit, Boom to Swing Tower D140096K $130.00 View Info
12 Case 580K Backhoe Swing Tower to Chassis Bottom Pin Kit See Details 580K Pin Kit, Swing Tower to Chassis Bottom D136649K $120.00 View Info
12 Case 580K Backhoe Swing Cylinder to Chassis Pin Kit See Details 580K Pin Kit, Swing Tower to Chassis Bottom D129305K $104.00 View Info
15 Case 580K, 580 Super K Backhoe Swing Tower to Chassis Top Pin Kit See Details 580K, 580 Super K Pin Kit, Swing Tower to Chassis Top 105749A1K $194.00 View Info
16 D134723 Case 580K Pin Kit, Stabilizer Leg to Chassis See Details 580K Pin Kit, Stabilizer Leg to Chassis D134723K $180.00 View Info
17 Case 580K Backhoe Stabilizer Cylinder Chassis Pin Kit See Details 580K Pin Kit, Stabilizer Cylinder to Chassis D133509K $98.00 View Info
18 Case 580K Stabilizer Cylinder to Leg Pin Kit See Details 580 Super E, 580K Pin Kit, Stabilizer Cylinder to Leg D26002K-1 $76.00 View Info
19 Case 580K, 580 Super K Pin Kit, Loader Lift Cylinder to Loader Frame See Details 580K, 580 Super K Pin Kit, Loader Lift Cylinder to Loader Frame D135604K $354.00 View Info
20 Case 580K, Super K Loader Frame to Chassis Pin Kit See Details 580K, 580 Super K Pin Kit, Loader Frame to Chassis D136526K $398.00 View Info
22 Case 580K, 580 Super K, 580L, 580 Super L Pin Kit, Bucket Cylinder Link to Drag Link See Details 580K, 580 Super K, 580L, 580 Super L, 590 Series Kit, Bucket Cylinder Link to Drag Link D132076K-2 $84.00 View Info
23 Case 580K, Super K Backhoe Loader Bucket Drag Link Pin Kit See Details 580K, 580 Super K Pin Kit, Loader Bucket Drag Link to Bucket D129257K $92.00 View Info
24 Case 580K, Super K Bucket Cylinder Link to Frame Bushing Kit See Details 580K, 580 Super K Pin Kit, Bucket Cylinder Link to Loader Frame D132076K-3 $144.00 View Info
25 Case 580K, Super K Backhoe Bucket Cylinder to Loader Frame Pin Kit See Details 580K, 580 Super K Pin Kit, Bucket Cylinder Rod to Loader Frame D129279K $76.00 View Info
26 Case 580K, 580 Super K Pin Kit, Loader Frame to Bucket See Details 580K, 580 Super K Pin Kit, Loader Frame to Bucket D129256K $110.00 View Info
27 Case Backhoe Stabilizer Foot Pin Kit See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin Kit, Stabilizer Leg to Foot (Dirt Pad) D28648K $30.00 View Info
27 Case Backhoe Street Pad Pin Kit See Details 580K, 580 Super K, 580L, 580 Super L, 590 Series Pin Kit, Foot to Leg Street Pad D39256K $60.00 View Info
27 Stabilizer leg to flip pad pin kit for Case 580K See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin Kit, Stabilizer Leg to Foot (Flip Over Pad) D149033K $138.00 View Info
xx Case Backhoe Y Link Coupler Pin Kit See Details 580K, 580L, Super K, Super L, 590 Turbo, 590L, 590SL, 590SM Pin Kit, Coupler to Y Link D146288K-2 $168.00 View Info
xx Case Backhoe Bucket Cylinder Bushing Kit See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Series Bushing Kit, Bucket Cylinder to Bucket Cylinder Link D151034K $94.00 View Info
xx Case 580K Backhoe Dipper Cylinder to Boom Pin Kit See Details 580K Pin Kit, Dipper Cylinder to Boom D132492K $184.00 View Info
xx Case 580K Pin Kit, Swing Cylinder Rod to Swing Tower See Details 580K Pin Kit, Swing Cylinder Rod to Swing Tower D132517K $170.00 View Info
Bushing driver removal tool for heavy equipment See Details Universal – Fits dozers, excavators, loaders, and backhoes Bushing Driver Removal Tool BushingDriver $44.00 View Info

Case 580K Pin KitsCase 580K Pin Kits

Key Notes:

  • Application: Pin and bushing replacement kits for stabilizers, boom, dipper, and loader arms

  • Includes: Heavy-duty steel pins, hardened bushings, and retaining hardware (varies by kit)

  • Function: Rebuilds worn pivot points, restores tight operation, reduces slop in backhoe and loader linkages

  • Part Numbers: (Insert part numbers listed in the sub-products from the category page)

  • Location: Available for stabilizer arms, boom pivot, dipper stick, loader arm, and bucket connections

  • Material: Machined steel pins and precision-fit bushings designed for long-term use

  • Weight: Varies by kit (typically 5–20 lbs depending on assembly)

Why Choose Broken Tractor:

  • ✅ Complete Pin & Bushing Kits Matched to Your Case 580K

  • ✅ Durable, Precision-Made Components for Extended Service Life

  • ✅ Fast Shipping and Expert U.S.-Based Customer Support
