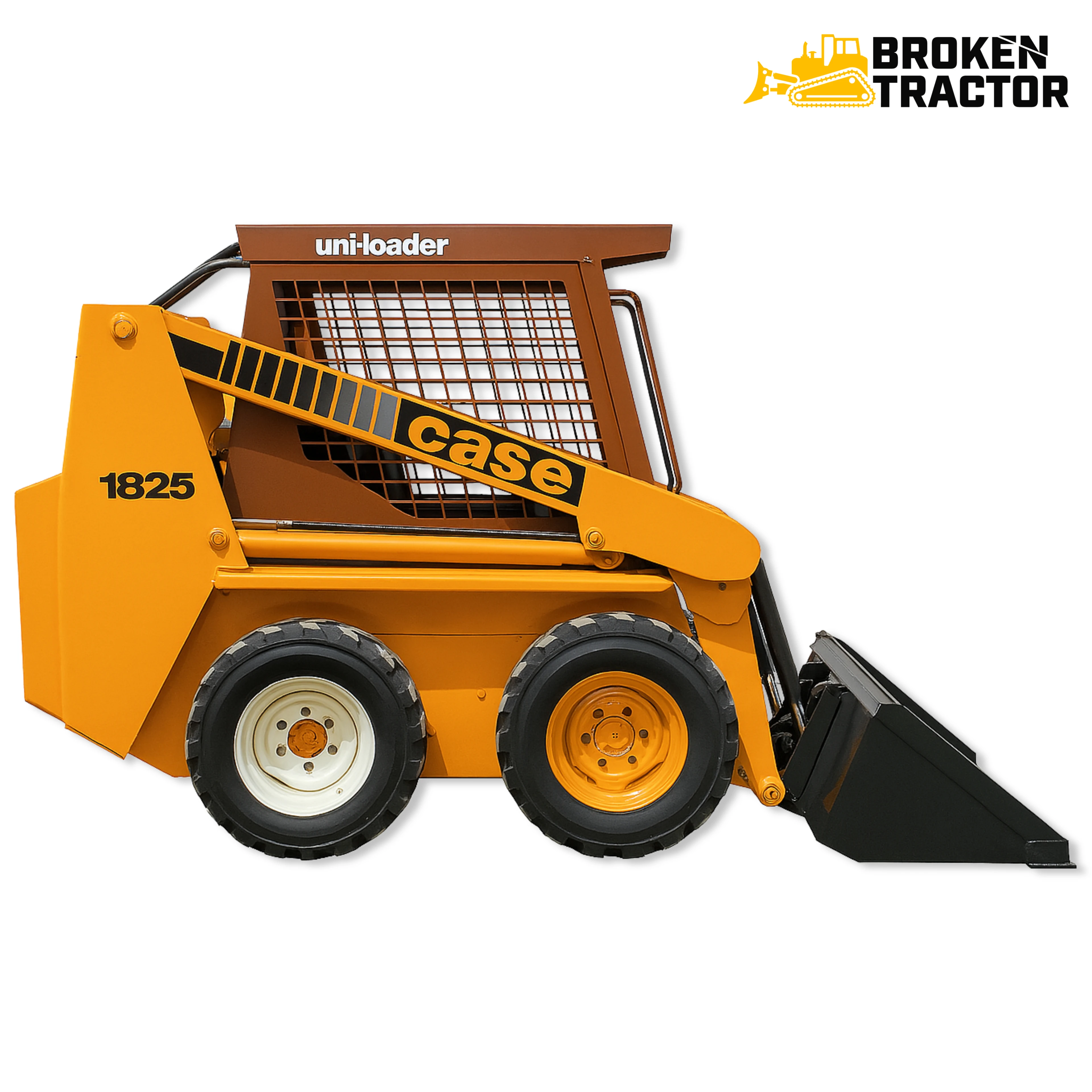

Case 1825 Skid Steer Loader – Parts, Specs & Serial Numbers

SKU:
Case 1825 Skid Steer Loader – Parts, Specs & Serial Numbers
exclude_in_klevu_search:
1
Case 1825 Skid Steer Loader – Parts, Specs
Fits Models:
Placeholder
Part # Case 1825 Skid Steer Loader – Parts, Specs & Serial Numbers

Description:

Serial Number Location:

For Case 1825 models, the serial number plate is typically located on the left-hand side of the machine frame, near the front handrail. Some models may also feature a serial plate inside the cab on the operator’s console. Always verify your serial number when ordering year-specific parts.

Key Specifications

Feature Specification
Years Manufactured 1995 – 1996
Engine Model Nissan H20 (2.0L, 4-cylinder gasoline)
Net Horsepower 30 HP @ 2,500 rpm
Transmission Type Hydrostatic
Hydraulic Flow Rate 9.3 gal/min (35.2 l/min)
Hydraulic Pressure 2,300 psi (159 bar)
Operating Weight 3,028 lbs (1,373 kg)
Rated Operating Capacity 800 lbs (363 kg)
Tipping Load 1,600 lbs (726 kg)
Bucket Breakout Force 1,795 lbs (814 kg)
Boom Breakout Force 1,730 lbs (785 kg)
Travel Speed 5.8 mph (9.3 km/h)
Dimensions (L×W×H) 9' × 3'7" × 5'10" (2.74 × 1.09 × 1.78 m)

Performance & Design Highlights

  • Compact Size – Ideal for tight spaces and urban job sites.

  • Radial-Lift Design – Provides strong digging performance.

  • Universal Quick Attach System – Compatible with a wide range of attachments.

  • Simple Controls – User-friendly interface for ease of operation.

  • Durable Construction – Robust frame and components for longevity.

Maintenance & Common Issues

Routine Maintenance

Component Service Interval
Engine Oil & Filter Replace every 100 hours
Hydraulic Fluid & Filter Service every 500 hours
Air Filter Inspect every 50 hours; replace as needed
Fuel Filter Replace every 250 hours
Drive Chains Inspect and adjust every 100 hours
Cooling System Clean and inspect every 250 hours

Common Issues & Fixes

Issue Quick Fix
Hydraulic Leaks Inspect hoses, fittings, seals; replace worn parts
Electrical Charging Problems Inspect alternator and voltage regulator; replace faulty components
Engine Stalling Clean or replace carburetor; check ignition system
Drive Chain Wear Regularly inspect and adjust tension; replace chains if excessively worn
Fuel System Clogging Replace fuel filter; clean fuel lines and tank
