| REF # | Image | Fits Model | Description | Part # | Price | Product Details |
| 13 |
See Details
|
Rotary Tiillers | Side Gearbox | 184069 | $630.00 | View Info |
| 1 |
See Details
|
Rotary Tiller Side Gearbox | Retainer Ring, 90mm | 902005 | $19.00 | View Info |
| 2 |
See Details
|
Rotary Tiller Side Gearbox | Retainer Ring, 40mm | 902006 | $12.00 | View Info |
| 3 |
See Details
|
Rotary Tiller Side Gearbox | Pressure Relief Plug | 902007 | $13.00 | View Info |
| 4 |
See Details
|
Rotary Tiller Side Gearbox | Square Head Plug | 902008 | $3.00 | View Info |
| 5 |
See Details
|
Rotary Tiller Side Gearbox | Spacer Washer (Main) | 902009 | $12.00 | View Info |
| 6 |
See Details
|
Rotary Tiller Gearbox | Bolt Set, Front Plate | 502296 | $4.00 | View Info |
| 7 |
See Details
|
Rotary Tiller Side Gearbox | Bolt, Gearbox | 902011 | $4.00 | View Info |
| 8 |
See Details
|
Rotary Tiller Side Gearbox | Bolt Set, Cover Plate | 502247 | $11.00 | View Info |
| 9 |
See Details
|
Rotary Tiller Side Gearbox | Lock Washer | 902010 | $2.00 | View Info |
| 10 |
See Details
|
Rotary Tiller Side Gearbox | Bolt Set | 502207 | $6.00 | View Info |
| 11 |
See Details
|
Rotary Tiller Side Gearbox | Spacer (5/16" Thick) | 902015 | $36.00 | View Info |
| 12 |
See Details
|
Rotary Tiller Side Gearbox | Spacer (7/16" Thick) | 902016 | $34.00 | View Info |
| 13 |
See Details
|
Rotary Tiller Side Gearbox | Double Lip Seal Set | 505017 | $32.00 | View Info |
| 14 |
See Details
|

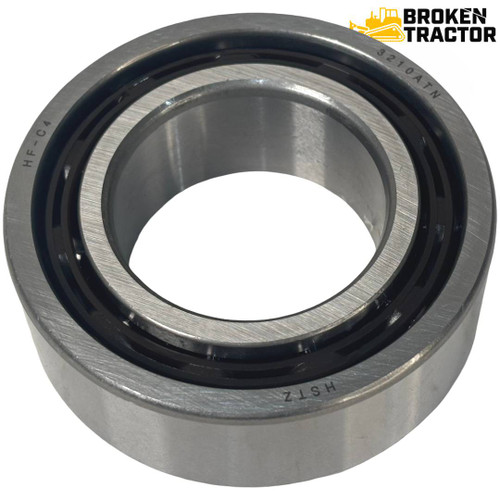

Rotary Tiller Side Gearbox | 3210C Double Ball Bearing | 902018 | $134.00 | View Info |
| 15 |
See Details
|
Rotary Tiller Side Gearbox | 1310 Self-Aligning Bearing | 902019 | $181.00 | View Info |
| 16 |
See Details
|
Rotary Tiller Side Gearbox | Gear (34 Teeth) | 902021 | $237.00 | View Info |
| 17 |
See Details
|
Rotary Tiller Side Gearbox | Gear (16 Teeth) | 902022 | $166.00 | View Info |
| 18 |
See Details
|
Rotary Tiller Side Gearbox | Gear (28 Teeth) | 902020 | $139.00 | View Info |
| 19 |
See Details
|
Rotary Tiller Side Gearbox | Side Cover Plate | 902001 | $87.00 | View Info |
| 18 |
See Details
|
Rotary Tillers | Outboard Hub & Cover Plate | 184070 | $160.00 | View Info |
| 20 |
See Details
|
Rotary Tiller Side Gearbox | Outboard Hub Housing | 902002 | $72.00 | View Info |
| 21 |
See Details
|
Rotary Tiller Side Gearbox | Housing | 902003 | $354.00 | View Info |
| 22 |
See Details
|
Rotary Tiller Side Gearbox | Gasket, Side Gearbox Plate | 902004 | $33.00 | View Info |
| 23 |
See Details
|
Rotary Tiller Side Gearbox | Grease Zerk | 902349 | $1.00 | View Info |
| 24 |
See Details
|
Rotary Tiller Side Gearbox | Bolt, Outboard Hub to Housing | 902345 | $2.00 | View Info |
| 25 |
See Details
|
Rotary Tiller Side Gearbox | Outboard Hub Housing | 902341 | $102.00 | View Info |
| 26 |
See Details
|
Rotary Tiller Side Gearbox | Outboard Hub Cap | 902342 | $69.00 | View Info |
This is the navigation bar. This shows the category you're currently viewing and allows you to explore back to previous categories.
King Kutter Side Gearbox

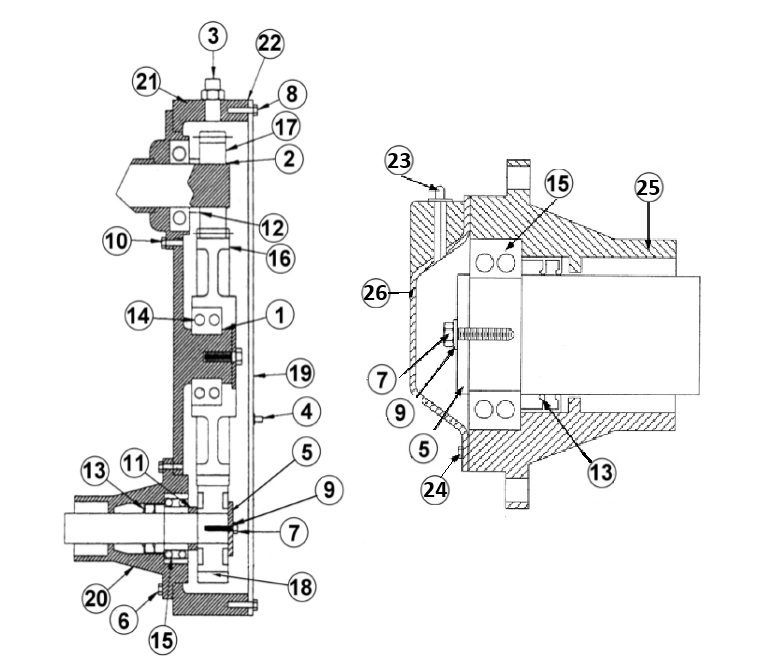

Each number on the image is a "Ref #" that can be matched on the table below.
King Kutter Rotary Tillers
Don’t churn over the hassle of repairs for your King Kutter Rotary Tillers. We have you taken care of at Broken Tractor when you are in need of ordering parts such as the Tiller Tailgate Rod, Tiller Tine Set, Rotor Assembly Tiller, or more. Broken Tractor provides a variety of parts for all King Kutter Rotary Tillers like the 4ft, 5 ft, 6ft, 7ft, and other new and used models. For a fraction of the cost, we will ship any King Kutter part right to your door at wholesale price.
