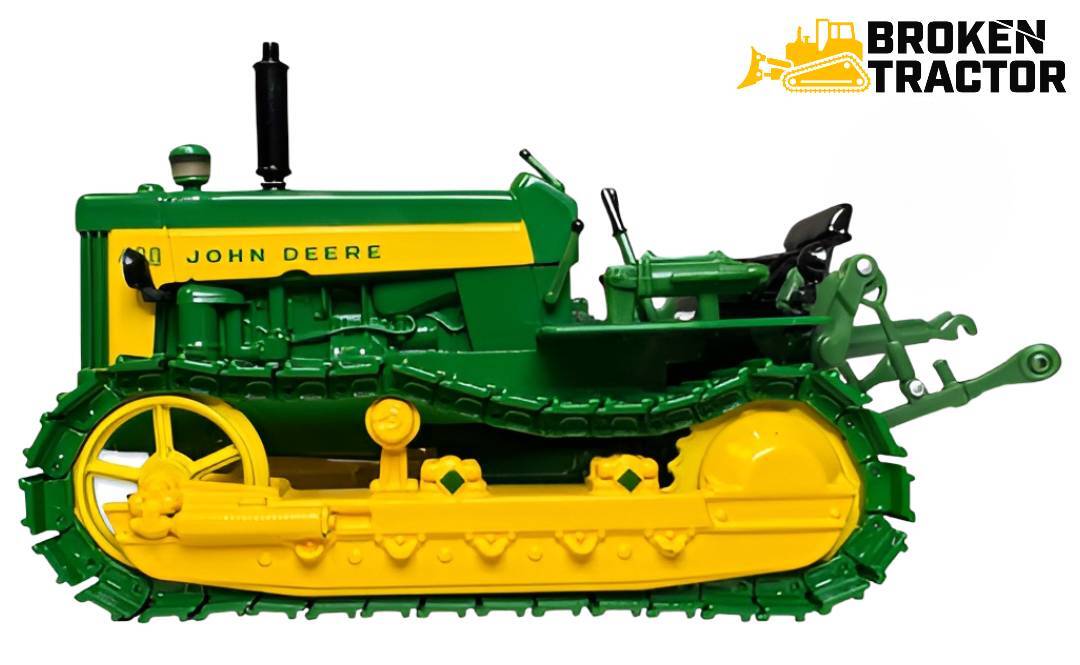

John Deere 430 Crawler Tractor: Specs, Parts & Common Issues
Produced 1958 – 1960, the John Deere 430 Crawler Tractor is one of the earliest Deere crawler tractors — compact frame, John Deere 2-cylinder gasoline, LP, or diesel engine options, and a mechanical drivetrain. The 430 Crawler was the tracked version of the popular John Deere 430 tractor and served small farm and light industrial applications in the late 1950s. A foundational machine in the John Deere crawler dozer lineage that eventually produced the 350, 450, 550, 650, 750, and 850 series.
The John Deere 430 Crawler Tractor is one of the earliest Deere crawler tractors in the line. Produced from 1958 through 1960, the 430 Crawler is the tracked version of the standard John Deere 430 wheel tractor — sharing the same engine family, drivetrain architecture, and operator station while substituting a steel-track crawler undercarriage for the rubber-tired chassis. The 430 Crawler served small farm and light industrial applications: light dozing, snow plowing, orchards, and steep-slope work where wheel tractors couldn’t operate effectively.
The 430 Crawler is a foundational entry in the John Deere crawler tractor lineage that eventually evolved through the JD 1010, JD 2010, JD 350, JD 440 Industrial, JD 450, JD 550, and modern hydrostatic series. For collectors and operators today, the 430 Crawler is a sought-after vintage machine — historically significant, still field-serviceable, and with a parts ecosystem supported by the broader John Deere 2-cylinder engine collector community.
At-a-glance specifications
John Deere 430 Crawler Tractor — factory specifications
- Production years
- 1958 – 1960
- Engine options
- John Deere 2-cylinder gasoline, LP, or diesel
- Displacement
- 113 cu in (~1.85 L) — gasoline and LP variants
- Power
- ~30 horsepower (configuration dependent)
- Transmission
- 4-speed mechanical with reverse
- Hydraulics
- Optional Powr-Trol hydraulic system
- Operating weight
- ~5,000 – 6,000 lb depending on configuration
- Implement options
- Dozer blade, front-end loader, scraper, plow
- Serial plate location
- Transmission case behind gearshift lever, or near operator station
John Deere 2-cylinder engine
The 430 Crawler uses the classic John Deere 2-cylinder engine — the iconic “Johnny Popper” architecture that defined John Deere tractors through the 1950s. Engine options included gasoline, LP-gas (propane), and diesel configurations, with displacement of approximately 113 cubic inches (~1.85 L) for the gas and LP variants. The diesel variant used a slightly different block.
The John Deere 2-cylinder engine ecosystem is exceptionally broad — these engines were used across multiple John Deere tractor models of the era, and the collector / restoration parts ecosystem is one of the deepest in vintage farm equipment. Cylinder kits, pistons, rings, bearings, head gaskets, water pumps, magnetos, distributors, carburetors, injection pumps (diesel), starters, and complete engine overhaul parts are widely available through specialist suppliers, John Deere dealer channels, and aftermarket vintage tractor parts vendors.
Browse the John Deere Dozer Parts hub for current 430 Crawler engine service kits.
Transmission and drivetrain
The 430 Crawler uses a 4-speed mechanical transmission with reverse. Power transfers from the engine through a clutch to the transmission, and from the transmission to the final drives and track sprockets. Steering is by track-disconnect clutches — pulling on the steering lever disengages drive to that track, causing the machine to pivot.
The 4-speed mechanical drivetrain is simple, field-serviceable, and well-documented. Routine wear items: clutch facing replacement, transmission gear and bearing service, steering clutch facings, and final drive bearings. The drivetrain is straightforward to rebuild on a budget — many collector restorations involve a complete drivetrain overhaul.
Track undercarriage
The 430 Crawler undercarriage is compact — small sprockets, idlers, and rollers sized for the light-class chassis. Track shoes are steel-grouser style. Sprocket bolt patterns, idler geometries, and master pin dimensions are 430 Crawler-specific. Track chain elongation, sprocket tooth wear, roller seal failure, and idler bushing wear are all routine items on a 60-plus-year-old machine.
Aftermarket undercarriage components for the 430 Crawler are available through specialist vintage JD parts suppliers and through the broader JD crawler parts catalog. Browse the John Deere Dozer Parts hub for current 430 Crawler undercarriage availability.
Optional dozer blade and implements
The 430 Crawler was commonly equipped with a front-mounted dozer blade, front-end loader, or other implements. Blade hydraulics ran off the optional Powr-Trol hydraulic system. The 430 Crawler dozer blade is sized for light-class work — agricultural site prep, snow plowing, orchard maintenance, light commercial landscaping.
Common service items on a 60-plus-year-old 430 Crawler
Engine accessory aging
The John Deere 2-cylinder engine is robust and well-supported, but 60+ year service life means routine accessory work. Water pump rebuilds, magneto / distributor service (gasoline / LP), injection pump rebuilds (diesel), starter overhauls, generator rebuilds, and carburetor service (gas/LP) are all part of bringing a 430 Crawler back to working condition or maintaining one in service.
Clutch and steering clutch service
The main engine clutch and the steering clutches wear with use. Replacement clutch facings, springs, and pressure plate service are routine. Steering clutch wear shows up as the machine being unable to hold a straight line under load, or pulling consistently to one side.
Track undercarriage replacement
Track chain, sprocket, idler, and roller wear are all routine on 60-year-old undercarriage. Aftermarket replacement components are available.
Hydraulic seal failure (Powr-Trol equipped units)
Hydraulic cylinder seals on Powr-Trol equipped 430 Crawlers fail with age. Cylinder rod chrome corrosion and seal weep are typical. Aftermarket seal kits are available.
Operator station and ROPS
Original seat cushions, floorboard wear, fender corrosion, and the lack of factory ROPS on most early units. Owners often add aftermarket ROPS during restoration for safety.
Wiring and electrical
60-plus-year-old wiring harnesses are routinely degraded. Many restorations include complete wiring harness replacement.
Parts and cross-fit components for the John Deere 430 Crawler
| Component area | What to look for | Notes |
|---|---|---|
| Sprockets & segments | Light-class track sprocket assemblies, bolt-on segments | 430 Crawler family — confirm by serial. |
| Idlers & rollers | Front idler assemblies, top and bottom roller sets | Light-class compact crawler undercarriage. |
| Track recoil & adjusters | Recoil spring, adjuster yoke, chrome rod | Confirm by serial. |
| Master pins | Track master pin and bushing | 430 Crawler-class specific. |
| Blade cutting edges | Light-class cutting edges, end bits | Aftermarket cutting edges widely available for the 430 Crawler dozer blade. |
| Engine clutch & steering clutch parts | Clutch facings, springs, pressure plates | Routine wear items on the 430 Crawler drivetrain. |
| Engine accessory parts (JD 2-cyl) | Water pump, magneto / distributor, starter, generator, carburetor (gas/LP), injection pump (diesel) | John Deere 2-cylinder engine parts ecosystem is broad through vintage JD parts suppliers. |
| Radiators & cooling | Radiator cores, fan belts, hose sets | Vintage JD 2-cyl cooling system. |
| Filter service kits | Engine oil, fuel, air filter sets | Vintage JD filter kits. |
| Operator seat | Vintage tractor seat with mount | Universal vintage tractor seats fit with adapter brackets. |
For 430 Crawler-era parts inventory and cross-fit confirmation, browse the John Deere Dozer Parts hub or contact our parts desk directly.
Working on a John Deere 430 Crawler?
The 430 Crawler is one of the earliest John Deere crawler tractors. Our specialists can verify gas / LP / diesel engine configuration by serial and help source vintage JD 2-cylinder engine and undercarriage parts.
Mon – Fri, 7:00 AM – 5:00 PM CT
Request a PartWhy the 430 Crawler is still in service
The 430 Crawler holds a special place in vintage John Deere tractor history. Collectors restore them for show; small farms still run them for light dozing, snow work, and orchard duty; and historical operators value the simple field-serviceable mechanical drivetrain. The John Deere 2-cylinder engine collector community keeps these machines supportable indefinitely.
