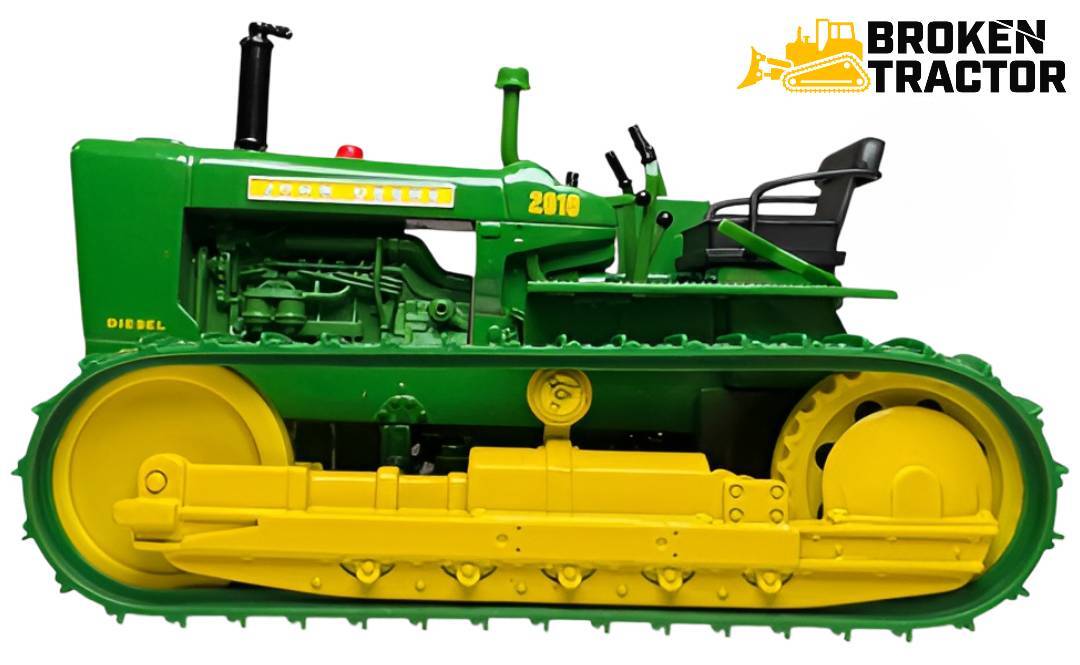

John Deere 2010 Crawler Dozer: Specs, Parts & Common Issues
Produced 1961 – 1965, the John Deere 2010 Crawler Dozer is the mid-class entry in the early John Deere “New Generation” crawler line — John Deere 4-cylinder gasoline or diesel engine, mechanical drivetrain, and a chassis sized for general farm and light commercial dozing applications. Larger and more capable than the 1010 Crawler, the 2010 Crawler served the mid-size crawler dozer market before being superseded by the John Deere 450 series in 1965.
The John Deere 2010 Crawler Dozer is the mid-class entry in the early John Deere “New Generation” crawler dozer line. Produced from 1961 through 1965, the 2010 Crawler shares engine and drivetrain components with the 2010 wheel tractor and offers more displacement, power, and operating weight than the smaller 1010 Crawler. The 2010 Crawler served general farm and light commercial dozing applications during the early 1960s before being replaced by the John Deere 450 series — Deere’s mid-class crawler line that became the long-running flagship through the 1980s and beyond.
For owners and operators today, the 2010 Crawler is a vintage mid-class crawler dozer with a modern (for its era) 4-cylinder engine, simple mechanical drivetrain, and a parts ecosystem supported by both the broader John Deere catalog and vintage JD restoration parts suppliers.
At-a-glance specifications
John Deere 2010 Crawler Dozer — factory specifications
- Production years
- 1961 – 1965
- Smaller-class contemporary
- John Deere 1010 Crawler Dozer (1960 – 1965)
- Successor
- John Deere 450 Dozer (introduced 1965)
- Engine options
- John Deere 4-cylinder gasoline or diesel
- Power
- ~55 horsepower flywheel (configuration dependent)
- Transmission
- 4-speed mechanical with reverse (or 8-speed option)
- Hydraulics
- Implement hydraulics for dozer blade
- Operating weight
- ~9,000 – 10,500 lb depending on configuration
- Implement options
- Dozer blade, front-end loader, scraper
- Serial plate location
- Tag mounted on clutch housing or near operator station
How the 2010 Crawler compared to the 1010
The 2010 Crawler sits above the 1010 Crawler in the early John Deere New Generation crawler line. Compared to the 1010:
- Larger 4-cylinder engine — more displacement and ~20 HP more output than the 1010 Crawler.
- Heavier chassis — approximately 3,000 lb heavier operating weight, providing more pushing power.
- Larger blade — wider dozer blade for more material capacity per pass.
- Heavier-duty undercarriage — larger sprockets, idlers, and rollers sized for the heavier chassis.
Both the 1010 and 2010 Crawler shared the New Generation 4-cylinder engine family and similar transmission architecture — making the 2010 a natural step up from the 1010 for operators who needed more pushing power without moving to a heavy-class machine.
John Deere 4-cylinder engine
The 2010 Crawler uses the John Deere 4-cylinder engine in either gasoline or diesel configuration — same engine family as the 2010 wheel tractor and shared architecture with the 1010 Crawler. The engine sits within the broader John Deere New Generation engine lineup of the early 1960s.
Routine engine service items: water pump, alternator/generator, starter, fuel injection (diesel) or carburetor (gas), head gasket, cylinder kits, bearings. Browse the John Deere Dozer Parts hub for current 2010 Crawler engine service kits.
Transmission and drivetrain
The 2010 Crawler uses a mechanical transmission — 4-speed standard with 8-speed option (Hi-Lo). Steering is by track-disconnect clutches. The mechanical drivetrain is field-serviceable and well-documented. Routine wear items: clutch facing replacement, transmission gear and bearing service, steering clutch facings, final drive bearings.
Track undercarriage
The 2010 Crawler undercarriage is mid-class — heavier than the 1010 Crawler but lighter than the later 450 series. Sprocket bolt patterns, idler geometries, and master pin dimensions are 2010-specific. Track chain elongation, sprocket tooth wear, roller seal failure, and idler bushing wear are routine items on a 55-plus-year-old machine.
Browse the John Deere Dozer Parts hub for current 2010 Crawler undercarriage availability.
Common service items on a 55-plus-year-old 2010 Crawler
Engine accessory aging
Water pump, alternator / generator, starter, fuel injection (diesel) or carburetor (gas), and head gasket are routine service items on 55+ year old John Deere 4-cylinder engines.
Clutch and steering clutch service
Main engine clutch and steering clutches wear with use. Replacement clutch facings, springs, and pressure plate service are routine.
Track undercarriage replacement
Track chain, sprocket, idler, and roller wear are all routine on 55-year-old undercarriage. Aftermarket replacement components are available.
Hydraulic seal failure
Blade cylinder seals fail with age. Cylinder rod chrome corrosion and seal weep are typical.
Operator station
Original seat cushions, floorboard wear, and the lack of factory ROPS on most early units. Aftermarket ROPS during restoration are common for safety.
Wiring and electrical
55-plus-year-old wiring harnesses are routinely degraded.
Parts and cross-fit components for the John Deere 2010 Crawler
| Component area | What to look for | Notes |
|---|---|---|
| Sprockets & segments | Mid-class track sprocket assemblies, bolt-on segments | 2010 Crawler family — confirm by serial. |
| Idlers & rollers | Front idler assemblies, top and bottom roller sets | Mid-class JD crawler undercarriage. |
| Track recoil & adjusters | Recoil spring, adjuster yoke, chrome rod | Confirm by serial. |
| Master pins | Track master pin and bushing | 2010 Crawler-class specific. |
| Blade cutting edges | Mid-class cutting edges, end bits | Aftermarket cutting edges widely available. |
| Engine clutch & steering clutch parts | Clutch facings, springs, pressure plates | Routine wear items on the 2010 Crawler drivetrain. |
| Engine accessory parts (JD 4-cyl) | Water pump, alternator, starter, fuel injection or carburetor | John Deere 4-cyl engine parts ecosystem. |
| Radiators & cooling | Radiator cores, fan belts, hose sets | 2010 Crawler cooling system. |
| Filter service kits | Engine oil, fuel, air filter sets | Vintage JD filter kits. |
| Hydraulic seal kits | Blade cylinder seal kits | Confirm cylinder dimensions before ordering. |
| Operator seat | Vintage tractor seat with mount | Universal vintage tractor seats fit with adapter brackets. |
For 2010 Crawler-era parts inventory and cross-fit confirmation, browse the John Deere Dozer Parts hub or contact our parts desk directly.
Working on a John Deere 2010 Crawler?
The 2010 Crawler is the mid-class entry in the early John Deere New Generation crawler line. Our specialists can verify gas vs. diesel engine configuration and help source vintage JD 4-cylinder engine and undercarriage parts.
Mon – Fri, 7:00 AM – 5:00 PM CT
Request a PartWhy the 2010 Crawler matters
The 2010 Crawler bridges the era between John Deere’s earliest crawler tractors (430 Crawler, 1010 Crawler) and the long-running JD 450 series that became Deere’s mid-class crawler flagship from 1965 onward. For collectors and small-scale operators, the 2010 Crawler offers more pushing power than the 1010 in a simple field-serviceable package. The John Deere 4-cylinder engine family is well-supported.
