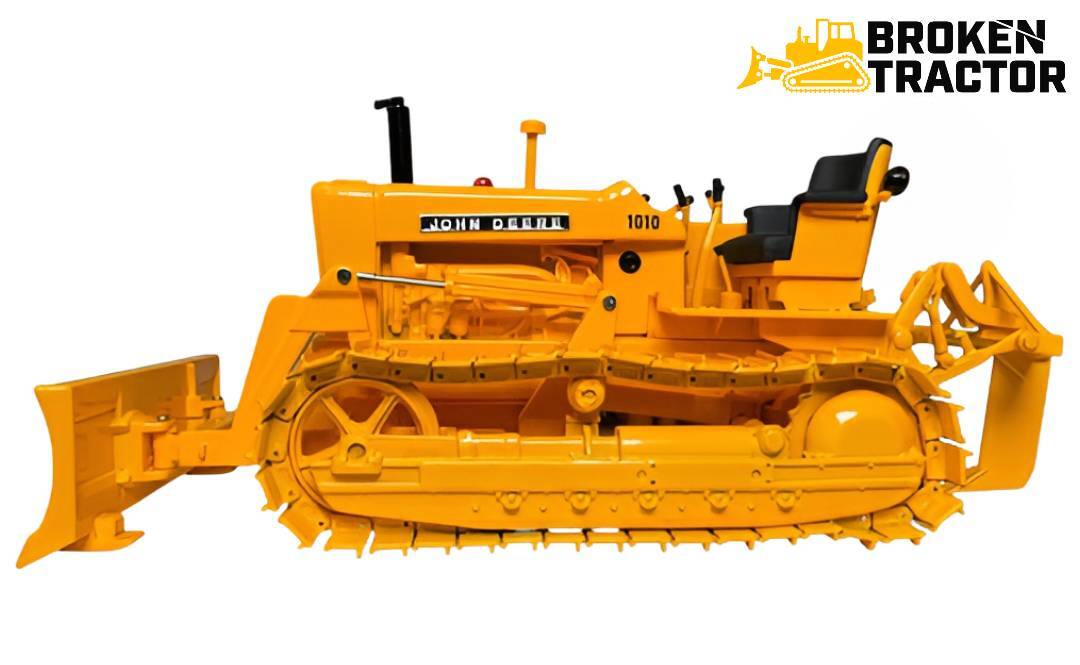

John Deere 1010 Crawler Dozer: Specs, Parts & Common Issues
Produced 1960 – 1965, the John Deere 1010 Crawler Dozer is the compact crawler dozer that bridged the John Deere “New Generation” tractor transition — John Deere 4-cylinder gasoline or diesel engine, mechanical drivetrain, and a chassis sized for small farm and light commercial dozing applications. The 1010 Crawler shared engine and drivetrain components with the 1010 wheel tractor line, and was one of the first John Deere crawler dozers in the modern (post-2-cylinder) Deere tractor era.
The John Deere 1010 Crawler Dozer is a compact crawler dozer produced from 1960 through 1965. The 1010 Crawler was introduced shortly after John Deere’s “New Generation” tractor launch, replacing the legacy 2-cylinder engine architecture (used on the 430 Crawler predecessor) with a modern 4-cylinder engine family. Gasoline and diesel variants were offered, sharing engine and drivetrain components with the John Deere 1010 wheel tractor line.
For owners and operators today, the 1010 Crawler is a compact, field-serviceable vintage crawler dozer. The transition from the 2-cylinder 430 Crawler architecture to the modern 4-cylinder 1010 engine family marked a significant shift for John Deere’s crawler line — the 1010 set the chassis pattern that the larger 2010 and the later 350 / 450 dozer families refined.
At-a-glance specifications
John Deere 1010 Crawler Dozer — factory specifications
- Production years
- 1960 – 1965
- Predecessor
- John Deere 430 Crawler Tractor (2-cyl era)
- Successor
- John Deere 350 Dozer (introduced 1965)
- Engine options
- John Deere 4-cylinder gasoline or diesel
- Power
- ~36 horsepower flywheel (configuration dependent)
- Transmission
- 4-speed mechanical with reverse
- Hydraulics
- Implement hydraulics for dozer blade
- Operating weight
- ~6,500 – 7,500 lb depending on configuration
- Implement options
- Dozer blade, front-end loader, scraper
- Serial plate location
- Clutch housing or transmission housing beneath operator’s seat; may also appear on left-hand side of engine
How the 1010 Crawler bridged eras
The 1010 Crawler arrived as part of John Deere’s “New Generation” transition — moving the entire Deere tractor line from the legacy 2-cylinder engine architecture to modern multi-cylinder engines. The 1010 was one of the smaller machines in the New Generation lineup, and the 1010 Crawler took that modern 4-cylinder powertrain into a crawler chassis.
Compared to the 430 Crawler predecessor, the 1010 Crawler offered:
- Modern 4-cylinder engine — replaced the 2-cylinder Johnny Popper architecture with a 4-cylinder gas or diesel, providing smoother power delivery and easier starting.
- Larger chassis — bigger than the 430 Crawler, with more pushing power.
- Updated operator station — refined controls and operator ergonomics.
- Modern hydraulics — improved implement hydraulic system.
John Deere 4-cylinder engine
The 1010 Crawler uses the John Deere 4-cylinder engine family in either gasoline or diesel configuration. The engine was part of the broader John Deere “New Generation” engine lineup used across the 1010 wheel tractor and other small Deere machines of the early 1960s. The 4-cylinder Deere engine ecosystem is well-supported through the broader John Deere parts catalog and vintage JD parts suppliers.
Routine engine service items: water pump, alternator/generator, starter, fuel injection (diesel) or carburetor (gas), spark / glow plug system, head gasket, cylinder kits, bearings. Browse the John Deere Dozer Parts hub for current 1010 Crawler engine service kits.
Transmission and drivetrain
The 1010 Crawler uses a 4-speed mechanical transmission with reverse. Power transfers from the engine through a clutch to the transmission and final drives to the track sprockets. Steering is by track-disconnect clutches — pulling on the steering lever disengages drive to that track, causing the machine to pivot.
Routine drivetrain wear items: clutch facing replacement, transmission gear and bearing service, steering clutch facings, final drive bearings.
Track undercarriage
The 1010 Crawler undercarriage is compact — small sprockets, idlers, and rollers sized for the light-class chassis. Sprocket bolt patterns, idler geometries, and master pin dimensions are 1010-specific. Track chain elongation, sprocket tooth wear, roller seal failure, and idler bushing wear are all routine items on a 55-plus-year-old machine.
Browse the John Deere Dozer Parts hub for current 1010 Crawler undercarriage availability.
Common service items on a 55-plus-year-old 1010 Crawler
Engine accessory aging
Water pump, alternator / generator, starter, fuel injection (diesel) or carburetor (gas), and head gasket are all routine service items on 55+ year old John Deere 4-cylinder engines.
Clutch and steering clutch service
Main engine clutch and steering clutches wear with use. Replacement clutch facings, springs, and pressure plate service are routine.
Track undercarriage replacement
Track chain, sprocket, idler, and roller wear are all routine on 55-year-old undercarriage. Aftermarket replacement components are available.
Hydraulic seal failure
Blade cylinder seals fail with age. Cylinder rod chrome corrosion and seal weep are typical.
Operator station
Original seat cushions, floorboard wear, and the lack of factory ROPS on most early units. Aftermarket ROPS during restoration are common for safety.
Wiring and electrical
55-plus-year-old wiring harnesses are routinely degraded.
Parts and cross-fit components for the John Deere 1010 Crawler
| Component area | What to look for | Notes |
|---|---|---|
| Sprockets & segments | Light-class track sprocket assemblies, bolt-on segments | 1010 Crawler family — confirm by serial. |
| Idlers & rollers | Front idler assemblies, top and bottom roller sets | Light-class compact crawler undercarriage. |
| Track recoil & adjusters | Recoil spring, adjuster yoke, chrome rod | Confirm by serial. |
| Master pins | Track master pin and bushing | 1010 Crawler-class specific. |
| Blade cutting edges | Light-class cutting edges, end bits | Aftermarket cutting edges widely available. |
| Engine clutch & steering clutch parts | Clutch facings, springs, pressure plates | Routine wear items on the 1010 Crawler drivetrain. |
| Engine accessory parts | Water pump, alternator, starter, fuel injection or carburetor | John Deere 4-cyl engine parts ecosystem. |
| Radiators & cooling | Radiator cores, fan belts, hose sets | 1010 Crawler cooling system. |
| Filter service kits | Engine oil, fuel, air filter sets | Vintage JD filter kits. |
| Hydraulic seal kits | Blade cylinder seal kits | Confirm cylinder dimensions before ordering. |
| Operator seat | Vintage tractor seat with mount | Universal vintage tractor seats fit with adapter brackets. |
For 1010 Crawler-era parts inventory and cross-fit confirmation, browse the John Deere Dozer Parts hub or contact our parts desk directly.
Working on a John Deere 1010 Crawler?
The 1010 Crawler bridged the 2-cylinder and modern 4-cylinder JD eras. Our specialists can verify gas vs. diesel engine configuration by serial and help source vintage JD 4-cylinder engine and undercarriage parts.
Mon – Fri, 7:00 AM – 5:00 PM CT
Request a PartWhy the 1010 Crawler matters
The 1010 Crawler represents a key chapter in John Deere crawler history — the transition from the 2-cylinder Johnny Popper era to the modern multi-cylinder Deere tractor era. For collectors, the 1010 Crawler is historically significant. For working operators, it’s a compact field-serviceable crawler dozer for light farm and commercial work where modern hydrostatic machines would be overkill.
