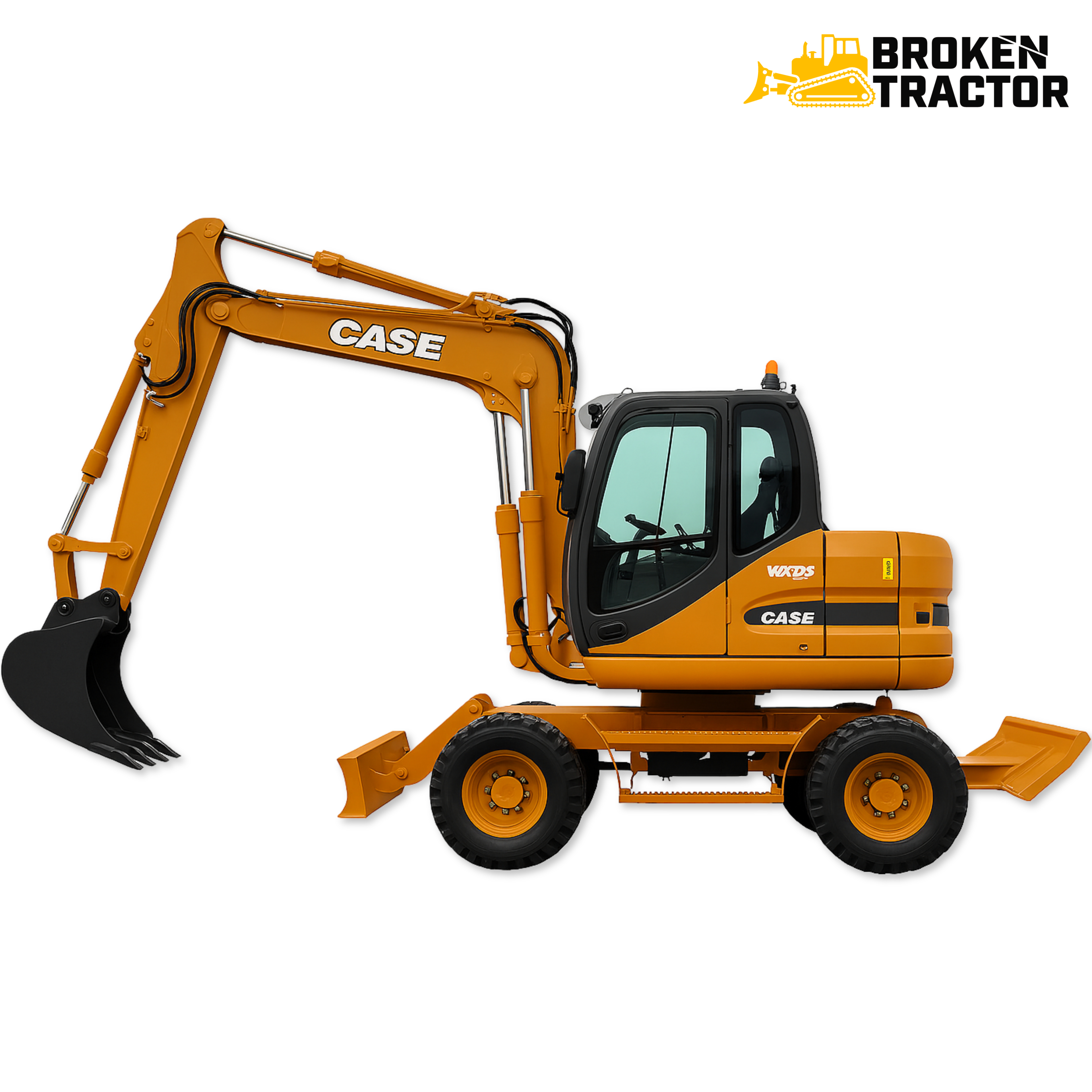

Case WX95 Wheeled Excavator – Parts, Specs

Description:

Serial Number Location

The serial number plate is typically located on the right-hand side of the cab, beneath the front windshield, or inside the cab near the operator’s seat. Always confirm this number before ordering parts.

Key Specifications

Model Years: 2019 – Present
Engine: Case 439TA, 4-cylinder turbocharged diesel, Tier 3/Tier 4 Final (depending on year)
Net Power: 95 hp (71 kW) @ 2,200 rpm
Operating Weight: Approx. 21,750 lb (9,870 kg)
Fuel Tank Capacity: 40 gallons
Hydraulic Oil Capacity: 29 gallons
Hydraulic Pump Flow: 50 gpm (190 L/min)
Hydraulic Pressure: Approx. 4,800 psi
Transmission: 2-speed hydrostatic powershift
Travel Speed: Up to 21 mph (34 km/h)
Swing Speed: 9 rpm
Swing Torque: Approx. 13,000 lb-ft (17,650 Nm)
Drive: 4-wheel drive with oscillating front axle

Dimensions

Overall Length: Approx. 23 ft
Transport Width: 7 ft 6 in
Shipping Height: 9 ft 2 in
Tail Swing Radius: 6 ft
Wheelbase: 7 ft 6 in
Ground Clearance: 1 ft 1 in
Turning Radius: Approx. 19 ft

Working Range

Max Digging Depth: Approx. 13 ft
Max Reach at Ground: Approx. 23 ft
Max Loading Height: Approx. 18 ft

Performance & Design Highlights

• Tier 3 or Tier 4 Final engines offer reliable power and compliance

• Four-way hydraulic system with ride control for smoother operation

• Comfortable cab with adjustable air suspension seat and joystick controls

• Compact tail design for tight applications

• Quick-access engine and hydraulic service compartments

• Available chassis options include outriggers and front-mounted blade

Routine Maintenance

• Engine Oil & Filter: Every 500 hours

• Fuel Filters: Every 1,000 hours

• Hydraulic Oil: Replace every 3,000 hours; hydraulic filters every 1,000 hours

• Cooling System: Clean radiator and screen every 250 hours

• Daily Checks: Grease boom and swing pins, inspect hoses, check tire wear and fluid levels

Common Issues & Fixes

• Hydraulic Leaks: Inspect seal, hose and coupler connections routinely; replace as needed

• Cooling Overheat: Dust and debris may accumulate—clean cooling fins and screens daily

• Tire Wear: Rotate tires regularly to ensure even tread, especially if used frequently on pavement

• Pivot Pin Wear: Boost greasing frequency if performance degrades or play develops
