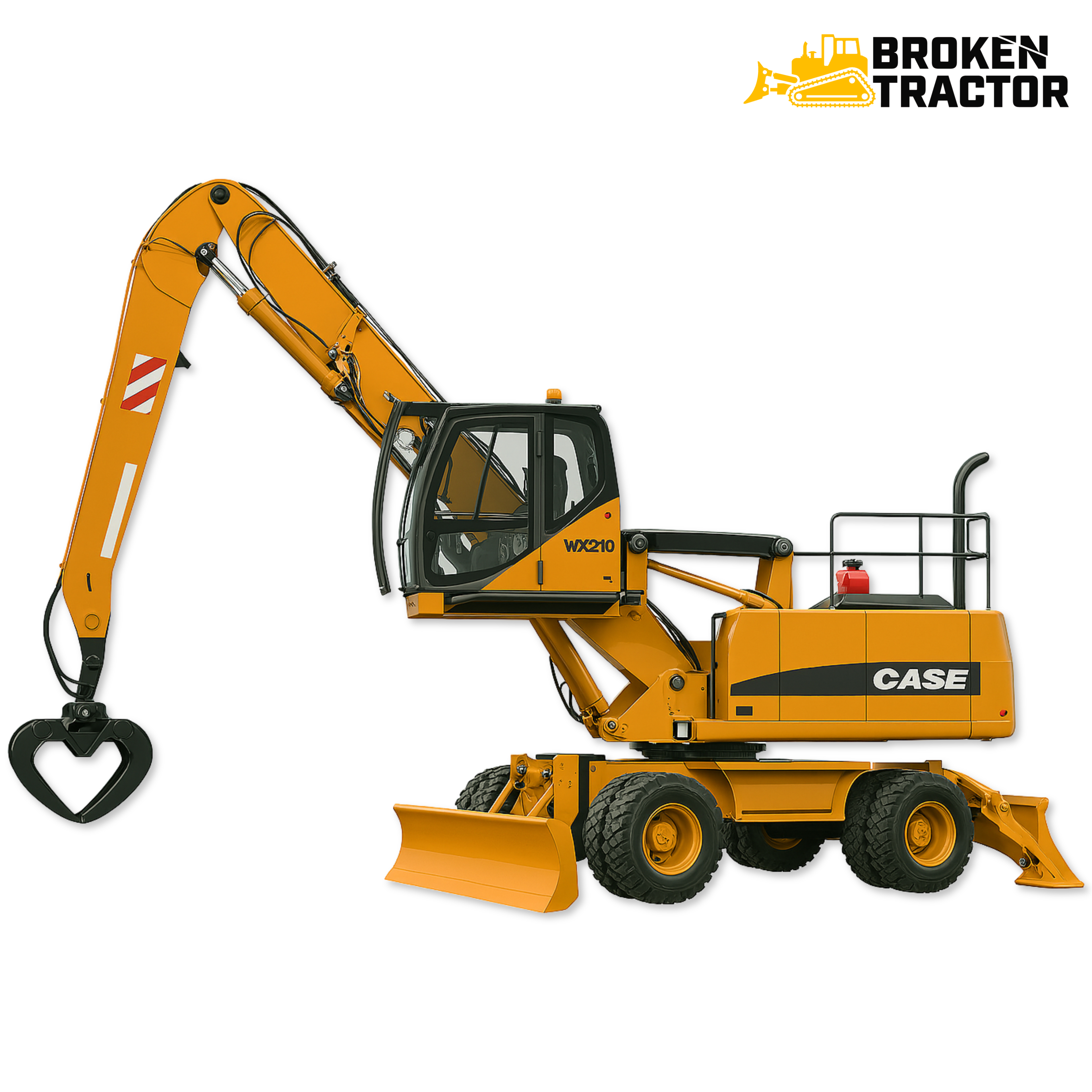

Case WX210 Wheeled Excavator – Parts, Specs

Description:

Serial Number Location

The serial number plate is located on the right-hand side of the cab below the front windshield or inside the cab next to the operator’s seat. Always verify this number before ordering parts to ensure compatibility.

Key Specifications

Model Years: 2023 – Present
Engine: Cummins B6.7, 6‑cylinder turbocharged diesel, Tier 4 Final/Stage V
Net Power: 200 hp (149 kW) @ 2,200 rpm
Operating Weight: 46,000 lb (approx. 20,865 kg)
Fuel Tank Capacity: 80 gallons
DEF Tank Capacity: 15 gallons
Hydraulic Fluid Capacity: 40 gallons
Hydraulic Pump Flow: 90 gpm (341 L/min)
Hydraulic Pressure: 5,200 psi
Transmission: 2‑speed hydrostatic powershift
Travel Speed: Up to 25 mph (40 km/h)
Swing Speed: 9 rpm
Swing Torque: ~33,000 lb‑ft
Drive: 4‑wheel drive with active oscillating axle
Tail Swing: Conventional or reduced-tail options available

Dimensions

Overall Length: Approx. 27 ft 6 in (configurable)
Transport Width: 8 ft 8 in
Shipping Height: 10 ft 4 in
Tail Swing Radius: 7 ft 8 in (conventional), 5 ft 6 in (reduced)
Wheelbase: 9 ft 2 in
Ground Clearance: 1 ft 4 in
Turning Radius: Approx. 21 ft

Working Range

Max Digging Depth: Approx. 19 ft 6 in
Max Reach at Ground: Up to 32 ft
Max Loading Height: Approx. 22 ft

Performance & Design Highlights

• High-output Cummins engine with automatic after‑treatment

• Four selectable power modes: industrial-grade, Standard, Eco, Custom

• Advanced load‑independent hydraulic system with ride‑control

• Spacious ergonomic cab with heated air‑suspension seat and touchscreen

• Full 360° visibility with multi‑camera system and radar object detection

• Optional stabilizer blades, twin tires, and trailer hitch available

• Service checkpoints grouped for easy access and reduced maintenance time

• Available in both standard and reduced-tail swing configurations

Routine Maintenance

• Engine Oil & Filter: Every 800 hours

• Fuel Filters: Every 1,000 hours

• Hydraulic Oil: Replace every 5,000 hours; filters every 1,000 hours

• Cooling System: Clean radiator fins and air intake screens every 250 hours

• Daily Checks: Grease all pivot joints, inspect hoses and tire wear, ensure DEF level is adequate

Common Issues & Fixes

• Hydraulic Leaks: Inspect hoses and seals regularly; replace at first sign of wear

• Cooling Overheat: Dust buildup can restrict airflow—clean cooling components daily in dusty environments

• Tire Wear: Rotate when road travel is frequent to even out tread wear

• Electronic Alerts: Use onboard diagnostics to identify and resolve sensor or wiring issues promptly
