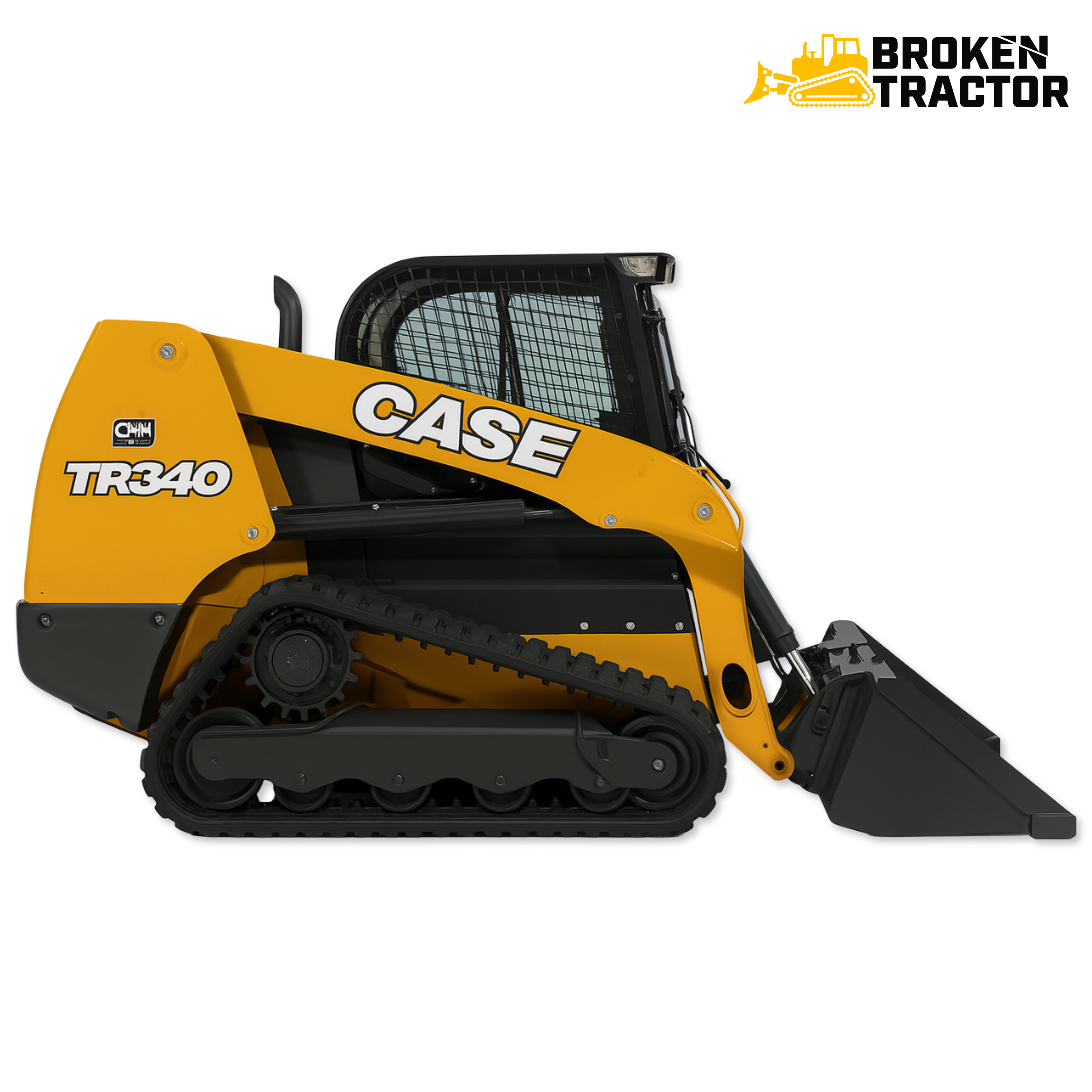

Case TR340 Compact Track Loader: Alpha-Series Radial-Lift CTL
The Case TR340 is part of Case’s alpha-series TR (radial-lift) compact track loader range — Tier 4 Final compact diesel, hydrostatic dual-path drive on a tracked undercarriage, and the alpha-series cab. Radial-lift geometry on a CTL chassis gives the flotation of tracks with the ground-level reach pattern of a radial-lift loader.
Where the TR340 fits in the Case skid steer / CTL line
The TR340 sits in Case’s alpha-series TR (radial-lift) compact track loader range between the Case TR320 and the Case TR340B. Tracked undercarriage, radial-lift loader geometry, Tier 4 Final aftertreatment. Where the SR/SV-series rides on wheels and the TV-series uses vertical-lift geometry on tracks, the TR-series pairs radial lift with a CTL undercarriage for jobs that need flotation and ground-level reach.
Case TR340 Compact Track Loader - Quick Specs
- Class
- Compact Track Loader
- Generation
- TR (Alpha) Radial-Lift
- Engine
- Tier 4 Final Compact Diesel
- Aftertreatment
- DPF + SCR (DEF)
- Drivetrain
- Hydrostatic Dual-Path, Tracked Undercarriage
- Lift Geometry
- Radial
- Smaller Sibling
- Case TR320
- Larger Sibling
- Case TR340B
Engine, hydraulics, and drivetrain
The TR340 runs a Tier 4 Final compact diesel through a hydrostatic dual-path drivetrain into a tracked undercarriage — closed-loop hydrostatic pumps drive final-drive motors at each track. Loader hydraulics use a load-sensing piston pump with electrohydraulic control valves.
The CTL undercarriage gives the TR340 flotation on soft material that a wheeled skid steer can’t match. The trade is that track wear monitoring (track tension, sprocket and roller wear, idler condition) becomes the largest single recurring cost on the machine. Built right and tracked carefully, undercarriage components stretch out their service life — ignored, they punish the budget.
Common service items on the TR340
- Engine internals: Tier 4 Final compact diesel pistons, rings, sleeves, bearings, gaskets. Common-rail high-pressure injection on Tier 4 builds.
- Tier 4 aftertreatment: DPF service intervals, DEF tank and dosing module, SCR catalyst, EGR cooler service.
- Fuel system: Common-rail injectors, lift pump, very tight water-separator filtration.
- Cooling system: Radiator, water pump, thermostat, fan, charge-air cooler, hoses, belts.
- Hydraulics: Loader lift and bucket tilt cylinder seal kits (86570919 / 86570931 / 86570922 cross-fit on NH/Case alpha-series), piston-pump rebuilds, electrohydraulic control valves.
- Drivetrain: Hydrostatic dual-path pumps and drive motors, charge pump, filters. CTL undercarriage adds track chains, sprockets, idlers, and rollers.
- Bucket coupler hardware: 47396814K bucket pin kit cross-fits L216–L230, C232–C238, SR160–SR250, SV185–SV300, TV380, TR270–TR340 — high-volume coupler service kit.
- Hardware: 191048A2 axle stud & nut cross-fits broadly across the Case skid steer line.
- Brakes / control: Park brake, control linkage, 48139268 control shock absorber on Case/NH alpha-series control valves.
- Electrical / ECU: Engine ECU, machine controller, instrument cluster, sensors, wiring harness, telematics module.
- Cab / operator station: Cab HVAC, seat, gauges, joystick controls, cab glass, 47405956 windshield wiper blade on cab-equipped units.
Parts we carry for the Case TR340
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Tier 4 compact diesel internals | Browse Engine |
| Aftertreatment | DPF, DEF, SCR, EGR components | Browse Aftertreatment |
| Fuel System | Common-rail injectors, lift pump, filters | Browse Fuel |
| Cooling | Radiator, water pump, charge-air cooler, hoses | Browse Cooling |
| Hydraulics | Lift/tilt cylinder seal kits, piston pump, valves | 86570919 Tilt Seal Kit |
| Drivetrain | Hydrostatic pumps/motors + CTL undercarriage | Browse Undercarriage |
| Bucket Coupler | 47396814K pin kit (cross-fits L216-L230, C232-C238, SR160-SR250, SV185-SV300, TV380, TR270-TR340) | 47396814K Pin Kit |
| Brakes / Control | 48139268 control shock absorber | 48139268 Shock Absorber |
| Cab | 47405956 wiper blade, HVAC, controls | 47405956 Wiper Blade |
| Electrical / ECU | ECU, harness, instrument cluster, sensors | Browse Electrical |
| Operator Station | Seats, joysticks, cab glass | Browse Operator Station |
Need a part for your Case TR340 Compact Track Loader?
Aftertreatment components, hydrostatic drive parts, and CTL undercarriage are the highest-value items on a TR340. Call our parts team with your serial number.
Request a PartWhat to verify before ordering
- Aftertreatment + undercarriage generation. Tier 4 Final aftertreatment configuration varies by build year; CTL undercarriage components (tracks, sprockets, idlers, rollers) saw revisions — confirm by serial.
- Serial number. Confirm the serial on the Case TR340 before ordering year-specific parts.
- Engine serial. Internal engine parts must match the engine serial number.
- Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension — measure before ordering.
- Cab vs. ROPS canopy. Operator station equipment varied between configurations — HVAC, glass, and wiper components only apply to cab-equipped units.
Why the TR340 still earns a paycheck
The Case TR340 is an alpha-series CTL for operations that need the flotation and ground-pressure profile of tracks with the ground-level reach pattern of radial-lift geometry. Landscape, sensitive turf, soft material, and any operation where wheels would sink — the TR340 keeps working.
Maintenance priorities on a TR340: clean fuel and tight water separation, DPF regen behavior, hydrostatic charge pressure, and undercarriage wear monitoring (track tension, sprocket and roller wear, idler condition). CTL undercarriage life is the single largest recurring cost on this machine — service-life tracking matters. Broken Tractor stocks coupler hardware, seal kits, control components, and cab service items that cross-fit the broader Case/NH alpha-series, alongside model-specific aftertreatment and drivetrain parts for the TR340.
