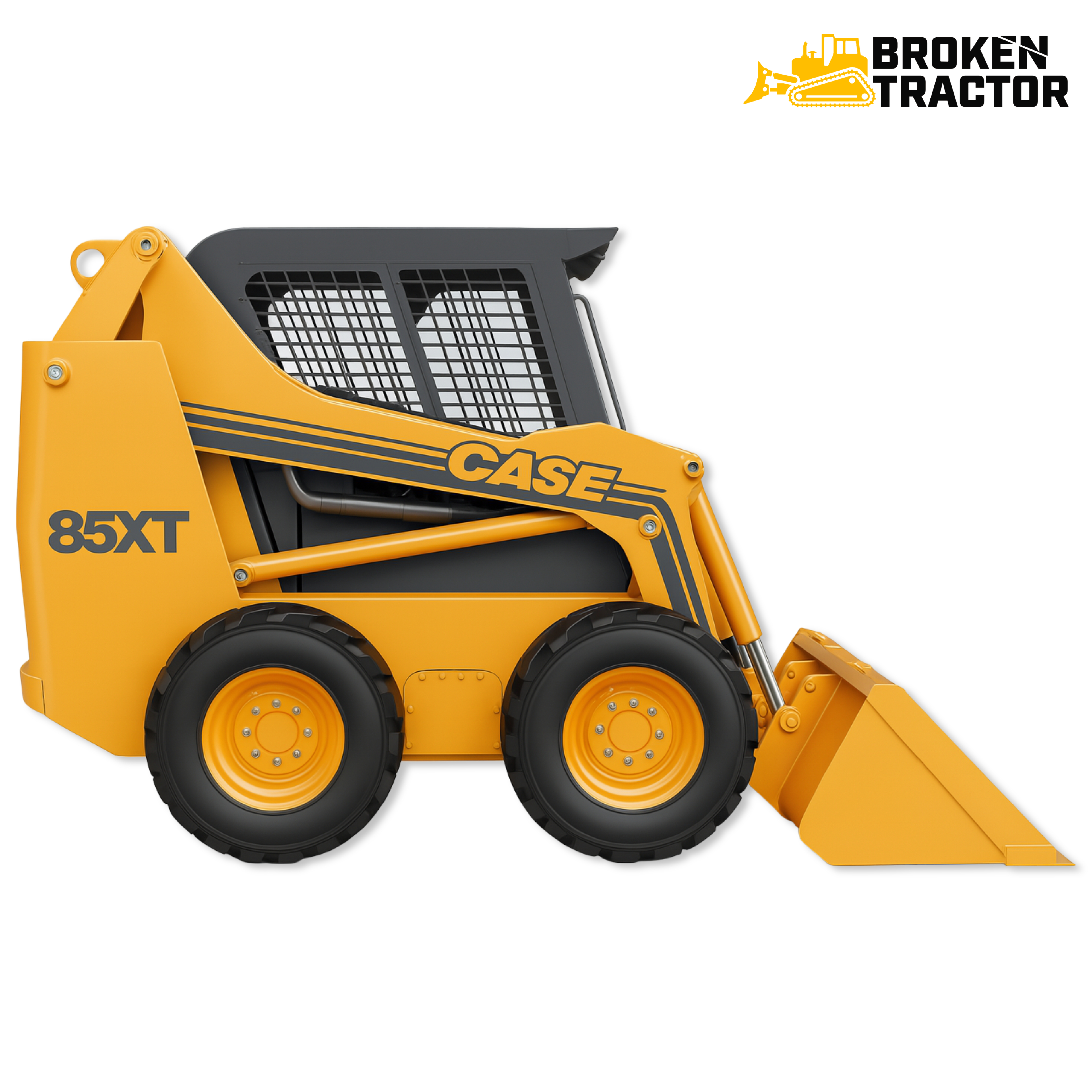

Case 85XT Skid Steer Loader: XT-Series Cummins-Powered Skid Steer
The Case 85XT is part of the XT-series Case skid steer line built in the early 2000s — Cummins-powered, hydrostatic dual-path drivetrain, and a modernized cab and electrical layout versus the vintage 18-series predecessors. It bridges the gap between the old 18-series simplicity and the alpha-series modern electronics that followed.
Where the 85XT fits in the Case skid steer line
The 85XT sits in the XT-series Case skid steer range between the Case 75XT and the Case 90XT. Cummins industrial diesel power, hydrostatic dual-path drive, and the XT-series cab with improved ergonomics over the 18-series predecessors. The XT-series ran in the early 2000s and was Case’s last skid steer family before the alpha-series introduced modern electronic controls and the more refined operator interface that defines current production machines.
Case 85XT Skid Steer — Quick Specs
- Class
- Skid Steer Loader
- Generation
- XT-Series
- Production
- 2001 – 2005
- Engine
- Cummins Industrial 4-cyl Diesel
- Drivetrain
- Hydrostatic Dual-Path
- Predecessor
- Case 1845C (18-series)
- Successor
- Case alpha-series (e.g. 410)
Engine, hydraulics, and drivetrain
The 85XT runs a Cummins industrial four-cylinder diesel through a hydrostatic dual-path drivetrain — closed-loop pumps drive sprocket-shaft motors that turn the drive chains and wheels. Loader hydraulics use a piston pump feeding electrohydraulic-pilot or mechanical control valves and direct-acting lift and tilt cylinders.
The Cummins 4B-family engine in the 85XT shifted from mechanical injection on early units to electronic injection on later units during the production run. Confirm by serial when ordering fuel-system parts — injectors, lift pumps, and ECU components differ between the variants.
Common service items on the 85XT
- Engine internals: Cummins 4B or 4BT pistons, rings, sleeves, bearings, gaskets. Mechanical-injection (early) and electronic (late) variants exist — confirm by serial.
- Fuel system: Cummins fuel injection components, injectors, lift pump, fuel filters, water separator.
- Cooling system: Radiator, water pump, thermostat, fan, charge-air cooler (turbo variants), hoses, belts.
- Loader hydraulics: Lift and bucket tilt cylinder seal kits, piston-pump rebuilds, control valves, hoses. The DMEL1075 cylinder spanner wrench is the proper tool for cylinder service.
- Drivetrain: Hydrostatic dual-path pumps and drive motors, drive chains, sprockets, axles. The D64175 sprocket shaft needle bearing cross-fits broadly across Case skid steer drive axles.
- Axle hardware: The 191048A2 axle stud and nut cross-fits a wide range of Case skid steer axle studs.
- Brakes and control linkage: Park brake components, control linkage, and the 48139268 control shock absorber for Case and New Holland skid steer control valves.
- Electrical: Starter, alternator, wiring harness, gauges, switches, and the 47405956 windshield wiper blade on cab-equipped XT units.
- Cab / operator station: Seat, cab glass, ROPS canopy, gauges, joystick controls.
Parts and cross-fit components for the Case 85XT
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Cummins 4-cyl pistons, rings, sleeves, bearings, gaskets | Browse Engine |
| Fuel System | Cummins injectors, lift pump, filters, water separator | Browse Fuel System |
| Cooling | Radiator, water pump, charge-air cooler, hoses, belts | Browse Cooling |
| Loader Hydraulics | Lift/tilt cylinder seal kits, piston pump, control valves | DMEL1075 Spanner Wrench |
| Drivetrain | Hydrostatic pumps and motors, drive chains, sprockets | D64175 Sprocket Bearing |
| Hardware | 191048A2 axle stud and nut (broad Case skid steer fit) | 191048A2 Stud and Nut |
| Brakes / Control | 48139268 control shock absorber, park brake, linkage | 48139268 Shock Absorber |
| Cab | 47405956 wiper blade, gauges, joystick controls | 47405956 Wiper Blade |
| Electrical | Starter, alternator, wiring harness, switches | Browse Electrical |
| Operator Station | Seats, joysticks, ROPS canopy components | Browse Operator Station |
Need a part for your Case 85XT Skid Steer Loader?
Cummins fuel-system parts, hydrostatic drive components, and cylinder seal kits are the highest-demand items on a 85XT. Call our parts team with your serial number and we’ll match the right component to your machine.
Request a PartWhat to verify before ordering
- Machine serial number. Confirm the serial on the Case 85XT before ordering year-specific parts — XT-series saw running revisions.
- Engine serial. Internal Cummins parts must match the engine serial. Mechanical vs. electronic injection variants existed across the run.
- Hydraulic cylinder bore. Cylinder seal-kit fit depends on bore dimension — measure before ordering.
- Cab vs. ROPS canopy. Operator station equipment varied between configurations — cab-equipped units carry glass, wiper, and HVAC parts that ROPS-canopy units do not.
- Hydraulic control type. Mechanical-pilot vs. electrohydraulic-pilot control valves carry different solenoid and linkage parts.
Why the 85XT still earns a paycheck
The Case 85XT is the XT-series Case skid steer that bridges vintage 18-series simplicity and the alpha-series modern electronics. Cummins diesel reliability, hydrostatic dual-path service-friendliness, and modern-enough cab ergonomics keep these machines on contractor yards two decades after production ended.
Maintenance priorities on a 85XT: clean fuel and quality filtration on the Cummins, hydraulic oil kept at temperature and clean, drive-chain tension on schedule, cylinder seal replacement when leaks start, and brake and control linkage service. Broken Tractor maintains parts coverage across the XT-series and the broader Case skid steer family.
