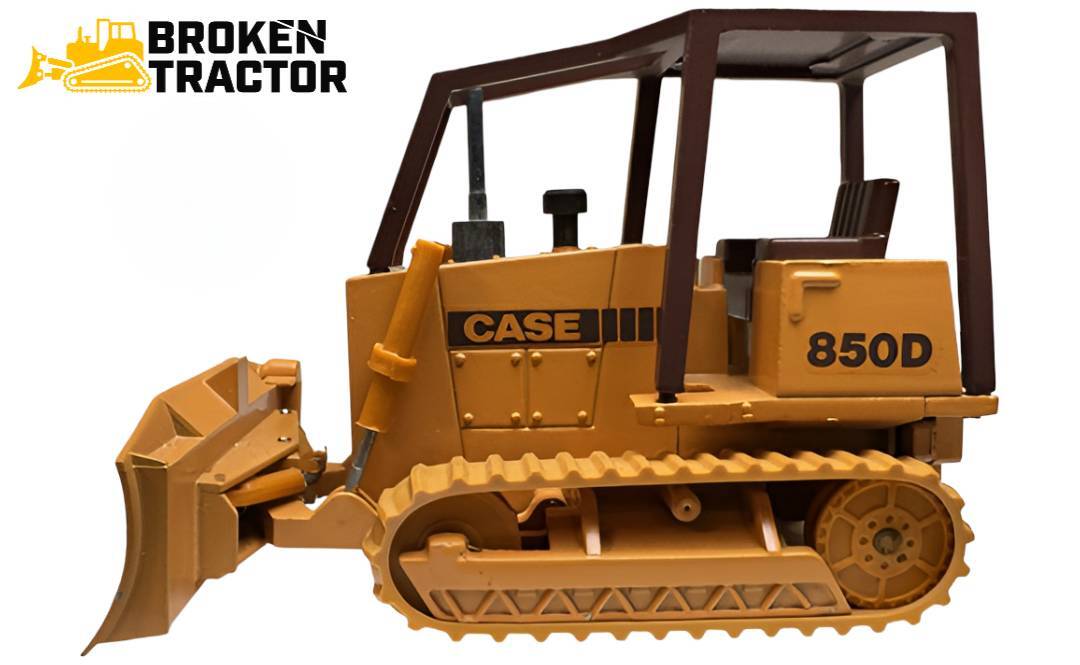

Case 850D Crawler Dozer: Specs, Parts & Common Issues

Produced 1980 - 1994, the Case 850D is the D-generation mid-large frame Case crawler dozer - a 14-year production run that includes naturally aspirated Case 6-cylinder diesel and (on later production) turbocharged Cummins 6BT-derived 6-590 variants, power shift transmission with torque converter, and progressive refinements across the long production window. The 850D is the most widely deployed pre-G-generation 850 in the field today.

Broken Tractor Editorial Team• Updated May 2026• 11 min read

The Case 850D Crawler Dozer is the D-generation mid-large frame Case crawler dozer, in production from 1980 through 1994 - a 14-year window that ran parallel to the 850C (1981-1987) early in its life and continued well past the 850C and 850E (1987-1990). The 850D's long production run means it's the most widely deployed pre-G-generation 850 in the used market today. Early-production 850Ds use the Case A336 6-cylinder family; later-production units transitioned to the Case 6-590 (Cummins 6BT-derived) inline six-cylinder. Power shift transmission with torque converter is standard across the production run.

For owners and operators today, the 850D offers a compelling combination: a long-running production platform (so parts availability is strong), a known engine family (Case A336 early, Cummins 6BT-derived 6-590 late), proven power shift drivetrain, and broad parts cross-fit with the 850B, 850C, and 850E machines.

14-year production window means major running changes A 14-year run is unusual for a Case construction machine. Early-production 850Ds (early 1980s) are not the same as late-production 850Ds (early 1990s) - engine family transitioned mid-run, accessory packaging evolved, undercarriage components were updated, and the operator station saw refinements. When ordering parts, always confirm by serial number. Two 850Ds built ten years apart can have visible differences in nearly every system.

At-a-glance specifications

Case 850D - factory specifications

Production years: 1980 - 1994
Predecessor: Case 850C (1981 - 1987) and 850B (1976 - 1981)
Successor: Case 850E (1987 - 1990) and 850G
Engine - early production: Case A336 inline 6-cylinder diesel (5.5 L)
Engine - later production: Case 6-590 inline 6-cylinder diesel (Cummins 6BT-derived, 5.9 L)
Power: ~85 - 95 horsepower flywheel (configuration dependent)
Transmission: Power shift with torque converter
Hydraulics: Open-center implement circuit, refined across production run
Variants: Standard, LGP (Low Ground Pressure)
Operating weight: ~22,500 - 26,000 lb depending on configuration and engine
Blade: 6-way bulldozer blade - angle and tilt blade options
Serial plate location: Right side of operator's platform / chassis frame

How the 850D differs across the production run

Engine transition mid-production - early-production 850Ds use the Case A336 6-cylinder. Later-production units transition to the Case 6-590 (Cummins 6BT-derived inline six-cylinder, 5.9 L displacement). Confirm engine designation by your engine plate before ordering engine-specific parts.
Accessory packaging evolution - water pump, alternator, starter, and accessory belt routing all saw updates over the 14-year run.
Undercarriage refinements - track adjuster hardware, idler seal designs, and roller bushing dimensions updated across production.
Operator station updates - ROPS canopy hardware, control layout, and gauge cluster updates over the run.
Power shift transmission consistent - the power shift with torque converter architecture is consistent across the production run, with running improvements to clutch packs and oil cooler design.

Engine: Case A336 to Case 6-590 transition

The 850D's most significant production-run change is the engine transition. Early-production 850Ds inherit the Case A336 inline six-cylinder diesel from the 850C and earlier 850 family - 336 cubic inches (5.5 L) of displacement, well-documented and well-supported parts ecosystem.

Later-production 850Ds transition to the Case 6-590 - the Case-branded version of the Cummins 6BT inline six-cylinder, 5.9 L displacement. The 6BT family is one of the most widely produced industrial / commercial diesel engines in the world, used across Cummins industrial applications, medium-duty trucks (Dodge Ram and others), and Case construction equipment. The 6BT parts ecosystem is enormous - filters, injectors, water pumps, turbochargers (on T variants), and complete rebuild components are all readily available through both Case dealer and aftermarket Cummins channels.

The engine transition is the single biggest reason to confirm your 850D's serial and engine plate before ordering engine-specific parts. Browse the Case Dozer Parts hub for current 850D engine service kits.

Power shift transmission with torque converter

The 850D uses a power shift transmission with torque converter throughout the production run. Clutchless gear changes under load, multiple forward and reverse speeds, torque converter providing smooth power transfer. Routine service items include shift solenoids and pressure switches, clutch packs, torque converter, transmission oil cooler, and transmission filter.

The torque converter is a routine rebuild item on high-hour 850Ds and is often paired with a transmission filter change at the same service interval. Symptoms of transmission service needs include shift hesitation, slipping under load, or harsh engagement.

Undercarriage

The 850D undercarriage shares broad component cross-fit with the 850B and 850C family. Sprocket bolt patterns, idler geometries, and master pin dimensions cross-fit on multiple components - confirm by part number against your serial. Track chain, roller, idler, and sprocket are all routine wear items at production-run age. The 850D's long production run means most field-service machines have seen multiple undercarriage rebuilds.

Browse the Case Dozer Parts hub for current 850D-era undercarriage availability.

Blade system and hydraulics

The 850D ships with a 6-way bulldozer blade - angle and tilt control hydraulically actuated. Blade cylinders, blade-carrier slider blocks, and cutting edges are routine service items. Cutting edge replacement is generally needed every few hundred to few thousand hours of dozing depending on material and operator habit.

Hydraulic implement-circuit pressure is moderate by modern standards - open-center hydraulic systems were standard in this era. Seal kit availability for the blade cylinders is generally good, with aftermarket kits supporting most 850D-era cylinder dimensions.

Common 850D service items

Engine accessory aging

Water pump, alternator, starter, and injection pump on the Case 6-cyl (whether A336 or 6-590) are routinely rebuilt or replaced over the engine's service life. Cooling system service (radiator core flush or replacement, fan belt, hose set) is a routine maintenance milestone on 30-plus-year-old machines.

Power shift / torque converter service

Shift solenoid failure, clutch pack wear, torque converter degradation, and transmission oil cooler service are routine items at production-run age. The transmission filter and fluid should be on a scheduled service interval - most experienced operators recommend more frequent change-out than the original service manual called for, particularly on high-hour machines.

Hydraulic seal failure

Blade cylinder seal failures are common at this age. Cylinder rod chrome corrosion and seal weep are typical symptoms. Seal kit rebuilds address most cases; severe rod corrosion requires rod replacement.

Undercarriage replacement cycles

Track chains, rollers, idlers, and sprockets all have measurable wear lives. The 850D's long production run means most machines in field service have seen multiple undercarriage rebuilds.

Operator station and ROPS

Cab and canopy hardware, seat cushion replacement, and floorboard wear are typical aging-machine issues. ROPS structural integrity should be verified before resale.

Wiring and electrical

30-plus-year-old wiring harnesses are routinely brittle. Hard starts, intermittent gauges, and dim lights are often traced to harness corrosion or insulation failure rather than the underlying component.

The 6-590 engine advantage

For late-production 850D owners, the Case 6-590 / Cummins 6BT engine connection is a real practical advantage. The 6BT is one of the most widely deployed inline six-cylinder diesels in industrial / commercial / automotive history - and the parts and rebuild ecosystem reflects that. Engine parts that would be expensive or hard to source on a less-common engine are routine commodity items on the 6BT family. For owners doing a major engine rebuild or sourcing performance / aftermarket parts, the 6BT ecosystem is the strongest in this size class.

Parts and cross-fit components

Component area	What to look for	Notes
Sprockets & segments	Track sprocket assemblies, bolt-on segments	Many 850D-era sprockets cross-fit the 850B / 850C / 850E family on shared bolt patterns.
Idlers & rollers	Front idler assemblies, top and bottom roller sets	Idler and roller bushings see broad mid-large crawler cross-fit.
Track recoil & adjusters	Recoil spring, adjuster yoke, chrome rod	Confirm by serial - multi-decade production-run changes apply.
Master pins	Track master pin and bushing	Master pins share geometry across the 850 family.
Cutting edges & end bits	Standard and severe-duty cutting edges, end bits	Aftermarket cutting edges widely available.
Blade cylinder seal kits	Angle, tilt, lift cylinder seal kits	Confirm cylinder dimensions before ordering.
Engine accessory parts - early A336	Water pump, alternator, starter, fuel injection	Case A336 accessories share parts with other Case industrial 6-cyl applications.
Engine accessory parts - late 6-590	Cummins 6BT parts ecosystem	Enormous parts ecosystem from Cummins industrial / commercial / automotive applications.
Radiators & cooling	Radiator cores, fan belts, hose sets	Aftermarket radiator and cooling cross-fit available.
Filter service kits	Engine oil, fuel, air, hydraulic filter sets	Filter kits packaged by application speed routine service. A336 vs 6-590 may require different kits.
Power shift transmission parts	Shift solenoids, clutch packs, oil cooler, torque converter	Transmission service parts cross-fit with the 850B / 850C / 850E power shift family.
Operator seat	Universal industrial seat with mount kit	Universal Case industrial seats fit the 850D operator station with standard mount kits.

For 850D-era parts inventory and cross-fit confirmation, browse the Case Dozer Parts hub or contact our parts desk directly.

Working on a Case 850D?

The 850D is a 14-year-production-run machine - early units have the Case A336 engine; later units have the Case 6-590 (Cummins 6BT). Our specialists can verify engine and fitment by serial and walk you through the 850 family's cross-fit options.

Mon - Fri, 7:00 AM - 5:00 PM CT

Request a Part

Why the 850D is the most popular pre-G 850

The 850D's combination of long production run, late-production Cummins 6BT-family engine (on later units), proven power shift drivetrain, and broad parts cross-fit with the 850 family make it the most popular pre-G-generation 850 in the used market today. For commercial dirt work, agricultural site prep, private road maintenance, and major land-clearing, an 850D in good mechanical condition remains a productive machine. The Cummins 6BT-derived 6-590 engine on later production has an enormous parts ecosystem, making engine service economical.
