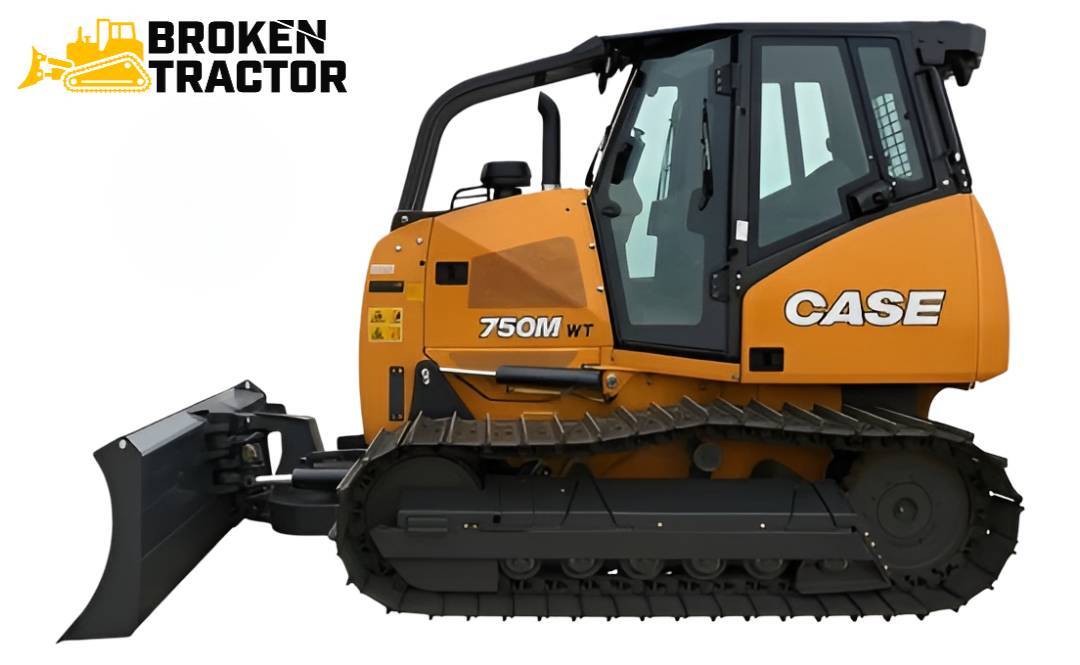

Case 750M Dozer – Parts, Specs

Description:

Serial Number Location:

For Case 750M Dozers (introduced in 2014 and still in production), the serial number plate is located on the left side of the frame near the articulation joint, just behind the front blade lift cylinder. Always confirm the serial number when ordering parts—especially to distinguish between early Tier 4 Interim and Tier 4 Final models.

Key Specifications

Years Manufactured: 2014 – Present

Engine Model: FPT 6.7L turbocharged diesel (Tier 4 Final compliant – no DPF)

Net Horsepower: 92 HP @ 2,200 rpm

Displacement: 409 cu in (6.7 L)

Transmission Type: Dual-path hydrostatic transmission with electronic control

Undercarriage Type: Available in Standard and LGP (Low Ground Pressure) configurations

Hydraulic Flow Rate: 23.5 gal/min

Hydraulic Pressure: 2,500 – 2,700 psi

Operating Weight: 20,000 – 21,500 lbs

Blade Capacity: 2.8 – 3.4 cubic yards

Top Travel Speed: 5.9 mph

Dimensions (L×W×H): Approx. 16 ft × 8.1 ft × 9.3 ft

Performance & Design Highlights

Tier 4 Final Engine with SCR: The FPT engine meets emissions requirements without a diesel particulate filter (DPF), reducing regeneration cycles and downtime.

Advanced Hydrostatic Drive: Electronically controlled dual-path system allows for precise maneuvering, counter-rotation, and improved grading performance.

Efficient Cooling System: Mid-mounted cooling module provides excellent access and maintains consistent performance in dusty or hot environments.

Factory-Ready for Machine Control: The 750M comes pre-plumbed for GPS or laser grade control systems, ideal for fine finish work.

Ergonomic Cab Design: Low-noise cab includes full HVAC, color monitor, electro-hydraulic controls, and adjustable seat with suspension.

Routine Maintenance

• Engine Oil & Filter: Replace every 500 hours

• Hydraulic Fluid & Filters: Change every 1,000 hours

• Transmission Fluid: Replace every 1,000 hours

• Fuel Filters: Replace every 500 hours

• Air Filters: Inspect every 250 hours; replace when needed

• Final Drive Oil: Check every 100 hours; replace every 1,000 hours

• DEF System: Refill DEF tank as needed; clean tank screen every 1,000 hours

Common Issues & Fixes

DEF System Warnings: Often due to contaminated DEF or faulty sensors—use fresh ISO-certified DEF and replace sensor if needed.

Hydrostatic Surge or Hesitation: Replace dirty charge filters and recalibrate system using onboard diagnostics.

Hydraulic Cylinder Drift: Rebuild tilt or lift cylinders with OEM seal kits; inspect rod surfaces for scoring.

Fuel Priming Problems: Caused by air leaks or low fuel pressure—inspect primer bulb and replace fuel filters regularly.

Cab Display Fault Codes: Check for corroded connectors near the ECM or behind the display—clean and reseat all plugs.

Track Tension Loss: Grease cylinder seals may be worn—install new seals and verify spring preload.
