Case 586G Forklift – Parts, Specs & Serial Numbers

Description:

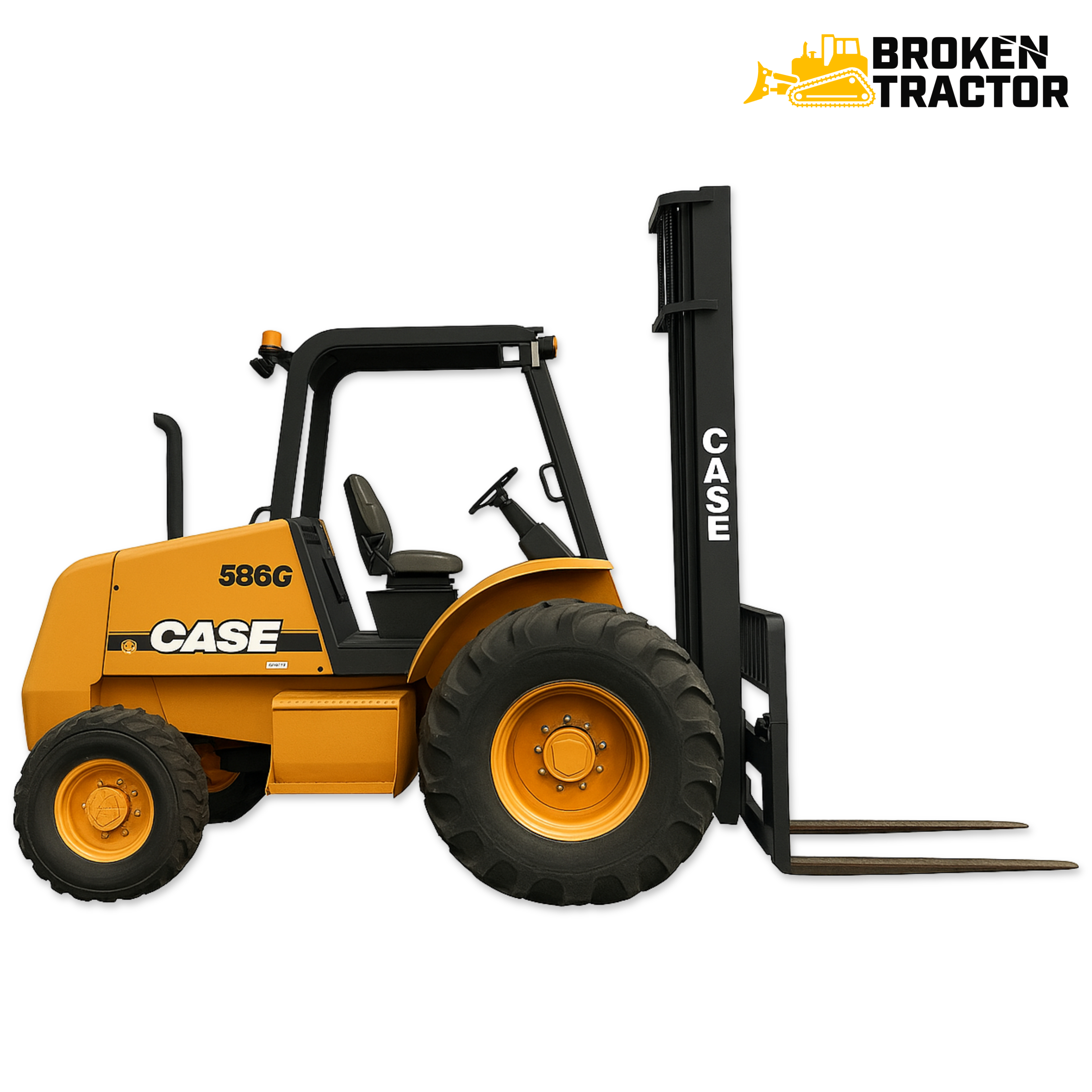

The Case 586G is a heavy-duty rough terrain forklift built for high-capacity lifting in demanding construction, lumber, and agricultural environments. With a powerful Tier 3 turbocharged engine and a rugged 4WD option, the 586G delivers outstanding traction, lift height, and ground clearance for uneven terrain.

Built as part of Case’s “G Series,” the 586G features modern upgrades over previous models including better operator visibility, improved hydraulic response, and easier serviceability. With a 6,000 lb lifting capacity and a maximum lift height exceeding 22 feet (with a 3-stage mast), the 586G is ideal for bulk handling and large material movement.

Specifications:

Engine:

• Model: Case Family III 445T/M2 Turbocharged Diesel

• Displacement: 274 cu in (4.5L)

• Horsepower: 80 HP @ 2200 RPM (Tier 3 emissions)

• Fuel Capacity: 30 gallons

• Cooling System: Liquid-cooled

Transmission:

• Type: Synchromesh with torque converter

• Speeds: 4 forward / 4 reverse (power shuttle)

• Drive Options: Standard 2WD; 4WD optional

Hydraulic System:

• Pump Flow: ~25 GPM

• Hydraulic Pressure: ~2500 psi

• Functions: Lift, tilt, optional side shift

• Control: Mechanical levers (pilot-optional)

Performance:

• Lift Capacity: 6,000 lbs @ 24" load center

• Lift Height: Up to 22 ft (with 3-stage mast)

• Drawbar Pull: ~10,000 lbs (varies with tires and surface)

• Mast Tilt: 15° forward / 10° back

Dimensions:

• Operating Weight: ~14,500 lbs

• Wheelbase: 88 inches

• Overall Width: 85 inches

• Ground Clearance: ~14 inches

• Turning Radius: ~14 feet

Maintenance Essentials:

• Filters: Replace fuel, oil, air, and hydraulic filters regularly. Shop 586G Filter Kits

• Hydraulic Cylinders: Tilt and mast cylinders often wear seals. Find 586G Hydraulic Cylinder Kits

• Transmission Leaks: Input and output shaft seals are known to fail. Browse power shuttle seal kits

• Cooling System: Clean radiator and replace hoses periodically to prevent overheating.

Common Issues & Quick Fixes:

• Hydraulic Slowdown in Cold Weather: Switch to cold-weather-rated hydraulic fluid or inspect the suction screen.

• No Forward or Reverse Movement: Likely a shuttle clutch issue or low pressure. Power shuttle kits available.

• Brake Fade: Internal seal wear or contaminated fluid. Use OEM-compatible brake fluids and replace discs or seals.

• Engine Overheating: Clogged radiator or fan failure – ensure cooling fins are clean and belt tension is correct.

Serial Number Location:

• Primary Location: On left side of the machine frame behind the front tire or near the operator platform.

• Format: Often begins with “JJG” or similar, followed by numeric sequence (e.g., JJG01XXXXXX)

Pro Tip:

The 586G is optimized for high-cycle operations. Keep extra hydraulic filters on hand and inspect lift cylinder seals monthly when working in dusty or sandy environments. Upgrade to LED lighting for enhanced visibility in low-light job sites.
