Case 580K & 580 Super K Swing Tower Parts

1 - Bushing, Swing Tower at Boom Cylinder 2 - Bushing, Inner Boom Pivot 3 - Bushing, Outer Boom Pivot 4 - Pin, Swing Tower to Frame (Upper) 5 - Bushing, Upper Swing Tower Pivot (Top) 6 - Bushing, Upper Swing Tower Pivot (Bottom) 7 - Pin, Swing Tower to Frame (Lower) 8 - Bushing, Lower Swing Tower Pivot (Top) (Slotted) 9 - Bushing, Lower Swing Tower Pivot (Bottom) 10 - Pin, Boom Cylinder to Swing Tower 11 - Pin, Swing Tower to Boom 12 - Pin, Swing Cylinder to Tower 13 - Bushing, Swing Cylinder Pivot 14 - Bushing, Swing Cylinder Pivot
Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.

Fits Models At A Glance: Case 580 Super K Key Points: Location: Swing tower at the boom cylinder connection.  Dimensions: Inner Diameter (ID): 70.19 mm | 2.76 inches Outer Diameter (OD): 94 mm | 3.7 inches Length: 35.8 mm | 1.41 inches ...

Fits Models At A Glance: Dipper Stick at Boom Connection: Fits Case 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M. Swing Tower at Boom Cylinder Connection: Fits Case 580K. Key Features: Size: 70.19 mm ID x 94 mm OD x 40 mm...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K Key Notes: Part Number: D135742 Location: Inner Swing Tower at Boom Weight: 1.1 lbs (0.50 kg) Special Feature: Inner swing tower bushings have a lip, while outer swing tower bushings do...

Fits Models At A Glance: Case 580L Series 2: After Serial # JJG0239360 Case 580M: All Serial Numbers Key Notes: Dimensions: 70.19 mm ID × 90 mm OD × 21.5 mm Length Part Number: 329998A1 Application: Swing tower bushing at boom...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L-I, 580 Super L, 580M, 580 Super M Key Notes: Part Number: D135741 Location: Swing Tower at Boom, Outer Dimensions: Inner Diameter: 70.19 mm (2-3/4") Outer Diameter: 90 mm...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K Key Notes: Location: Upper Swing Tower to Frame Weight: 11 lbs. Greasable Pin Interchanges With: 105749A1, D140091, D140657 Why Choose Broken Tractor? High-Quality Parts: Designed for a...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Location: Top Upper Swing Tower Pivot at Frame Bushing Inner Diameter: 70mm (2.76 inches) Outer Diameter: 85mm (3.35 inches) Length: 30mm (1.18...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Points: Function: Lower Pin for connecting the Swing Tower to the Frame Replaces part number D151065, D138038 Dimensions: Length: 6 inches Outer...

Fits Models At A Glance: Case Backhoes: 580K Key Notes: Part Number: D135558 Location: Swing Tower at Lower Swing Pivot Pin, Upper Fork Slotted Bushing  Dimensions: Inner Diameter: 70.19 mm (2-3/4") Outer Diameter: 86 mm (3-3/8") Length: 34 mm...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Part Number: D151073, D138042 Location: Lower Swing Tower Pivot (Upper Fork) Dimensions: Inner Diameter: 70.19 mm (2-3/4") Outer Diameter: 86...

its Models At A Glance: Case Backhoe: 580K Key Notes: Style: Greasable Pin with Bolt Hole Through Center Heat Treated: 65 Rockwell Part Number: D140096 Location: Connects Swing Tower to Boom Cylinder Tube Retaining Bolt: Uses 9/16" Bolt Grease...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K Key Notes: Part Number: 105752A1, D140093 Location: Connects Boom to Swing Tower Pin Diameter: 70 mm Greaseable Pin for easy maintenance Weight: 9 lbs. Why Choose Broken Tractor? Durable and...

Fits Models At A Glance: Fits Case Backhoe: 580 Super K Key Notes: Function: Connects Swing Cylinder Rod End to Swing Tower Part Number: Replaces D146779 Weight: 4 lbs (1.81 kg) Length: 6.25" (158.75 mm) Diameter: 40 mm (1.57") Why Choose Broken...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Style: Pin with Snap Ring Grooves Part Number: D144420 Not Greaseable Location: Connects Swing Tower to Boom Cylinder Weight: 10 lbs. Why Choose Broken Tractor? Durable Construction: Heavy-duty...

Fits Models At A Glance: Case Backhoe: 580 Super K Key Notes: Style: Pin with Snap Ring Grooves Part Number: D151068 Location: Connects Swing Tower to Boom Cylinder Weight: 10 lbs. Why Choose Broken Tractor? Precision Fit: Designed specifically for...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Part Number: D132517 Location: Connects Swing Cylinder to Swing Tower Secured with: Bolt and Washer at the top Weight: 4 lbs. Why Choose Broken Tractor? Precise Fit: This pin is specifically...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K Key Notes: Part Number: D136570 Dimensions: Inner Diameter: 40.19 mm (1-9/16") Outer Diameter: 55 mm (2-3/16") Length: 30 mm (1-3/16") Weight: 0.6 lbs (0.27 kg) Location: Swing Tower above...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K Key Notes: Part Number: D136571 Location: Swing Tower Below Swing Cylinder Rod Dimensions: Inner Diameter: 40.19 mm (1-9/16") Outer Diameter: 55 mm (2-3/16") Length: 38 mm (1-1/2") Weight: 0...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Part Number: Replaces D139267 Location: Connects Swing Cylinder Tube to Frame Weight: 4 lbs. Why Choose Broken Tractor? Reliable Replacement: Precisely engineered to replace part # D139267 for a...

Fits Models At A Glance: Case Backhoe: 580 Super K Key Notes: Part Number: D147894 Pin Diameter: 40 mm Length: 7.5 inches Location: Connects Swing Cylinder Tube to Frame Weight: 5 lbs. Why Choose Broken Tractor? High-Quality Fit: This pin is...

Fits Models At A Glance: Case Backhoes: 580K Key Notes: Part Number: D132514 Manufacturer: PVE Products Made in USA – High-quality construction for durability Weight: 1.6 lbs (0.73 kg) Designed for Secure Fit – Retains swing cylinder in...

Fits Models At A Glance: Case Backhoes: 580 Super K, 580 Super L, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Key Notes: Weight: 6 lbs. Interchanges with Part Numbers: 102923A1, 122995A1, 87347274, 87377727, 87443661, 87443847,...

Fits Models: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M Key Features: Designed for 1.5" diameter pins. Replaces Part # D25279,...

Fits Models At A Glance: Case 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Key Features: Specially designed for 1 3/4" diameter pins Replaces Part Numbers: D25280,...

Fits Models At A Glance: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, and more Key Notes: Fits 2" Diameter Pins – Designed for...

Fits Models At A Glance Case: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, and more Key Notes Weight: 0.05 lbs (0.02 kg) Part Number: U11649 Application: Washer for...

Fits Models At A Glance: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc. Key Notes: Fits: 1.5" (38.1 mm) Pins Thickness: 14 Gauge (0.078" / 1.98...

Fits Models At A Glance: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Key Notes: Fits 1.75" diameter pins 10 gauge 0.14"...

Fits Models At A Glance Case: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, and more Key Notes Weight: 0.05 lbs (0.02 kg) Part Number: 30575 Application: Washer for...

Fits Models At A Glance: • Universal Fit: Designed for multiple equipment types, including dozers, excavators, backhoes, and loaders. Key Notes: • Material: Solid steel construction for maximum impact resistance.• Function: Drives in or...

REF # Image Fits Model Description Part # Price Product Details
1 Case 580 Super K Backhoe Swing Tower Bushing for Boom Cylinder, Part #D151072 See Details 580 Super K Bushing, Swing Tower at Boom Cylinder 0 D151072
$66.00
View Info
Several Case Backhoe Bushing for Dipper Stick at Boom Connection - Fits 580 Series See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, Dipper at Boom, (580K - Swing Tower) D150121
$24.00
View Info
2 Case 580K Swing Tower Bushing Inner at Boom D135742 See Details 580K, 580 Super K Bushing, Swing Tower (Inner at Boom) D135742
$23.00
View Info
3 Case 580L swing tower bushing replacement See Details 580L-II, 580M Bushing, Swing Tower at Boom 329998A1
$38.00
View Info
3 Case 580K Swing Tower Bushing D135741 See Details 580K, 580 Super K, 580L-I, 580 Super L, 580 Super M Bushing, Swing Tower at Boom D135741
$38.00
View Info
4 Case 580K Upper Swing Tower Pin See Details 580K, 580 Super K Pin, Swing Tower to Frame (Upper) 105749A1
$98.00
View Info
5 Case Backhoe Top Upper Swing Tower Pivot Frame Bushing See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, Upper Swing Tower Pivot (Top) D135557
$28.00
View Info

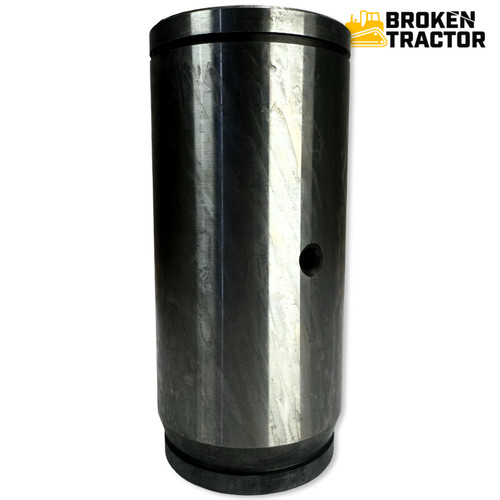

7 D138038 Replacement Swing Tower to Frame Pin for Case 580 Backhoes, 2 3/4" Diameter See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin, Swing Tower to Frame (Lower) D151065
$75.00
View Info
8 Case 580K Lower Swing Tower Pivot Bushing D135558 See Details 580K Bushing, Lower Swing Tower Pivot (Top) (Slotted) D135558
$20.00
View Info
8 Upper Fork Bushing for Case 580 Super K Swing Tower See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, Lower Swing Tower Pivot (Top) D151073
$38.00
View Info
10 Case 580K Swing Tower to Boom Cylinder Pin See Details 580K Pin, Swing Tower to Boom Cylinder (Bolt Retainer) D140096
$88.00
View Info
12 Case 580 Super K Boom Pin See Details 580K, 580 Super K Pin, Boom to Swing Tower 105752A1
$114.00
View Info
12 Case 580 Super K Swing Cylinder Rod Pin See Details 580 Super K Pin, Swing Cylinder to Tower D146779
$58.00
View Info
13 Case 580K Swing Tower Pin with Snap Ring Grooves See Details 580K Pin, Swing Tower to Boom Cylinder (Snap Ring Grooves) D144420
$104.00
View Info
13 Swing Tower to Boom Cylinder Pin for Case Backhoe See Details 580 Super K Pin, Swing Tower to Boom Cylinder D151068
$114.00
View Info
12 Case 580K Stabilizer Leg Pin See Details 580K Pin, Swing Cylinder to Tower D132517
$54.00
View Info
13 Case 580K Swing Tower Pivot Bushing D136570 See Details 580K, 580 Super K Bushing, Swing Tower Above Swing Cylinder Rod D136570
$22.00
View Info
14 Case 580K Swing Tower Bushing D136571 See Details 580K, 580 Super K Bushing, Swing Tower Below Swing Cylinder Rod D136571
$20.00
View Info
Swing Cylinder Tube to Frame Pin for Case 580K Backhoe See Details 580K Pin, Swing Cylinder Tube 0 D139267
$64.00
View Info
Case 580 Super K Swing Cylinder Pin See Details 580 Super K Pin, Swing Cylinder Tube to Frame D147894
$94.00
View Info
Case 580K Swing Cylinder Retainer Plate D132514 See Details 580K Retainer Plate, Swing Cylinder D132514
$26.00
View Info
Case Backhoe Rubber Boom and Swing Tower Bumper See Details 580 Super K, 580 Super L, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Rubber Bumper, Boom Lock 87611723
$64.00
View Info
Case Backhoe Snap Ring for 1.5" Diameter Pins | D25279 See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (1.5" Pins) D25279
$4.50
View Info
Heavy Duty Pin Retainer Snap Ring for Case Backhoes at Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (1.75" Pin) 103-16175
$3.75
View Info
Case Backhoe Snap Ring for 2" Pins -- 84158898 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (2" Pins) 84158898
$6.00
View Info
Case Backhoe Washer - 1.5", 10 Gauge Thickness -- U11649 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.5" Pins) (10-Gauge / 0.140" Thick) U11649
$4.00
View Info
Case Backhoe Pin Washer | D28610 See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.5" Pins) (14-Gauge / 0.078" Thick) 495-81292
$3.25
View Info
1.75" Pin Washer for Case Backhoes | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Washer, 1.75" Pin Diameter 495-81226
$4.00
View Info
Case Washer 1.75" - 14 Gauge -- 30575 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.75" Pins) 30575
$3.25
View Info
Bushing driver removal tool for heavy equipment See Details Universal – Fits dozers, excavators, loaders, and backhoes Bushing Driver Removal Tool BushingDriver
From $44.00
View Info

Case Backhoe Swing Tower Parts - Case 580K, 580 Super K



Fits Models At A Glance:

  • Case Backhoe: 580K, 580 Super K

Key Notes:

  • Application: Replacement swing tower pins, bushings, and hardware for Case 580K and 580 Super K backhoes

  • Function: Restores smooth swing operation and removes looseness from worn pivot points

  • Components Available: Swing tower pins, bushings, retainers, and complete rebuild kits

  • Location: Swing tower assemblies connecting the boom to the mainframe

  • Material: Heavy-duty machined steel pins and hardened bushings for long-term durability

  • Part Numbers: (Insert specific part numbers from product listings in this category)

Why Choose Broken Tractor:

  • ✅ Complete Swing Tower Pins & Bushings for Case 580K–580 Super K

  • ✅ Heavy-Duty Construction for Maximum Wear Life

  • ✅ Fast Shipping and Knowledgeable U.S.-Based Support
