Case 580K & 580 Super K Extendahoe Dipper Stick

1 - Inner Dipper Stick 2 - Bushing, Inner Dipper at Dipper Cylinder 2 - Bushing, Inner Dipper at Dipper Cylinder 3 - Bushing 3 - Bushing 4 - Pin, Inner Dipper to Dipper Cylinder 5 - Pin, Boom to Dipper 6 - Nut, Boom to Dipper Pin 7 - Not Available 8 - Not Available 9 - Not Available 10 - Not Available 11 - Not Available 12 - Outer Dipper Stick 13 - Pin, Inner Dipper and Dipper Cylinder 14 - Bushing, Dipper at Bucket 14 - Bushing, Dipper at Bucket
Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.

Fits Models At A Glance: Case Backhoes: 580 Super K, 580 Super L, 580 Super M Note: For models equipped with an extendible dipper stick Key Notes: Replaces Part Number(s): 140453A1, 244536A1 Origin: Made in USA Material: US Sourced Steel Manufacturer:...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K Case Backhoes: 580L, 580 Super L, 580M, 580 Super M Bushing, Inner Dipper at Dipper Cylinder Fits: Case 580K, 580 Super K Bushing, Bucket Link Fits: Case 580K, 580 Super K,...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Part #: 129041A1 Connections: Connects dipper cylinder rod end to dipper stick Connects bucket cylinder to dipper stick Compatibility: Fits...

Fits Models: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Features: Replaces Part Number: D132494 Size: 2 3/4" (70 mm) outside diameter 13" (331 mm) overall length. Weight: 20 lbs. Application: Connects the backhoe...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K Key Features: Dimensions: 2 3/4" (70 MM) Outside Diameter. 2" (50 MM) Inside Diameter. 2 1/8" (54 MM) Wide. Weight: 2 lbs. Replaces Part # D137217. Verification Required:...

Fits Case Models: Application: Lower Swing Tower to Frame Pin: 580D, 580 Super E Application: Boom to Dipper Stick Pin: 580K, 580SK, 580L, 580SL, 580M, 580SM, 580N, 580SN, 590SL, 590SM, 590SN Key Features: Size: 1.75" Nut. Part Numbers:...

Case Backhoe Extendible Dipper Stick Wear Pad Fits Case Backhoes: (580K, 580 Super K If Used), 580L, 580 Super L, (590 Turbo If Used), 590 Super L, 590 Super M Interchanges with Case Part #'s 132716A1 and 363321A1 Four used per machine, Sold...

Fits Models: Case Backhoe: 580K Before Serial # JJG0020000 Compatible with both standard dipper stick and extendahoe. Key Points: Greaseable Pin: Designed for easy maintenance, ensuring longevity and smooth operation. Weight: 10...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Key Notes: Note: Used only on backhoes without a Bucket Quick Coupler Part Number: D141076 Inner Diameter (ID): 57.17...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580 Super L, 580 Super M Fits models with Extendahoe (Extendable Dipper Stick) Key Notes: Interchanges with Part Number(s): D129900, D141890, D147989, 102649A1, 129445A1, 362951A1,...

Fits Models At A Glance: Fits Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Note: 580K: Fit 101631A1 Dippers, Check OD Dimensions and Specifications: Inner Diameter (ID): 2.0 inches (50 mm) Outer Diameter (OD): 2.375 inches (2...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Part Number: D141666 Weight: 7 lbs Length: 7 1/8 inches (between snap rings) Overall Length: 199 mm (7.83 inches) Diameter: 50 mm (1.97 inches)...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Key Notes: Outside Diameter: 40 mm (1.57 inches) Length: 136 mm (5.35...

Fits Models At A Glance: Case Backhoes: 580K (After Serial Number JJG0020000), 580 Super K, 580 Super L, 580 Super M Key Notes: Part Number: D138022 Style: Pin with Snap Ring Grooves Length: 8-5/8 inches (between snap ring grooves) Diameter: 50...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Points: Function: Acts as a spacer between the dipper and quick coupler, ensuring a snug and secure fit. Interchangeable Part...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 590 Turbo Fits Backhoes with Buckets wider than 12" Key Points: Connects Dipper stick to backhoe bucket Style with Ear and retaining pin hole Larger of the two bucket pins Diameter: 1-3/4"...

Fits Models At A Glance: Dipper Stick at Dipper Cylinder Rod: 580K, 580 Super K, 580M, 580 Super M Boom at Dipper Cylinder Tube: 580K, 580 Super K Steering Axle, Rear Pivot Bushing (2WD): 580K, 580 Super K, 580L, 580 Super L, 580M, 580...

Fits Models At A Glance: Dipper Stick at Boom Connection: Fits Case 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M. Swing Tower at Boom Cylinder Connection: Fits Case 580K. Key Features: Size: 70.19 mm ID x 94 mm OD x 40 mm...

Fits Models At A Glance: Case Backhoe: 580K Key Notes: Part Number: G108525 Weight: 0.80 lbs (0.36 kg) Application: Rod eye bushing for bucket cylinder Dimensions: Inside Diameter: 50.19 mm (1.976") Outside Diameter: 66.68 mm (2...

Fits Models At A Glance: Fits Case Backhoes: 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Key Points: Fits Models with Extendable Dippers Part Number: 184297A1, 103270A1 Weight: 1 lb. OEM Quality Why...

Fits Models: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M Key Features: Designed for 1.5" diameter pins. Replaces Part # D25279,...

Fits Models At A Glance: Case 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Key Features: Specially designed for 1 3/4" diameter pins Replaces Part Numbers: D25280,...

Fits Models At A Glance: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, and more Key Notes: Fits 2" Diameter Pins – Designed for...

Fits Models At A Glance Case: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, and more Key Notes Weight: 0.05 lbs (0.02 kg) Part Number: U11649 Application: Washer for...

Fits Models At A Glance: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc. Key Notes: Fits: 1.5" (38.1 mm) Pins Thickness: 14 Gauge (0.078" / 1.98...

Fits Models At A Glance: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Key Notes: Fits 1.75" diameter pins 10 gauge 0.14"...

Fits Models At A Glance Case: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, and more Key Notes Weight: 0.05 lbs (0.02 kg) Part Number: 30575 Application: Washer for...

Fits Models At A Glance: Application-Specific: Compatible with various Case equipment (contact to confirm specific fitment) Key Notes: Part Numbers: 495-81282, 87690482, 86625259 Size: 2" ID x 3" OD (50.8 mm x 76.2 mm) Weight: 0.05 lbs. (0.02...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M Key Notes: Part Number: D140247 Weight: 2.1 lbs (0.95 kg) Dimensions: Outer Diameter: 25.4 mm...

Fits Models At A Glance: Case Backhoes: 580K (after serial # JJG0020000) Fits: Boom Cylinder Rod, Dipper Cylinder Rod & Tube, Bucket Cylinder Tube 580 Super K Fits: Boom Cylinder Rod, Dipper Cylinder Rod & Tube, Bucket Cylinder...

Fits Models At A Glance: • Universal Fit: Designed for multiple equipment types, including dozers, excavators, backhoes, and loaders. Key Notes: • Material: Solid steel construction for maximum impact resistance.• Function: Drives in or...

REF # Image Fits Model Description Part # Price Product Details
1 Case Backhoe Inner Dipper Stick for 244536A1 | Broken Tractor See Details 580 Super K, 580 Super L, 580 Super M Inner Dipper Stick (New) 244536A1 $5,080.00 View Info
2 / 14 Case Backhoe Inner Dipper Bushing at Dipper Cylinder See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, (1-3/8" Long) D149079 $24.00 View Info
4 Case Dipper Stick to Bucket and Cylinder Pin for 580K Backhoe See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin, Dipper to Dipper / Bucket Cylinder Rod 129041A1 $68.00 View Info
5 Case Backhoe Pin for Boom to Dipper Stick, Part D132494, for 580 Series See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin, Boom to Dipper D132494 $74.00 View Info
6 & 8 High-Quality Dipper Bushing for Case 580K, 580 Super K Backhoes, Part # D137217 See Details 580K, 580 Super K Bushing, Boom & Dipper (2-3/4" OD) D137217 $29.00 View Info
6 Case Backhoe Nut, Boom to Dipper Pin 590 Super L, 590 Super M -- 181042A1 See Details 580D*, 580SE*, 580K, 580SK, 580L, 580SL, 580M, 580SM, 580N, 580SN, 590SL, 590SM, 590SN Nut, Boom to Dipper Pin 181042A1 $42.00 View Info
7 Case Backhoe Extendahoe Wear Plate -- 363321A1 | Broken Tractor See Details 580K*, 580 Super K*, 580L, 580 Super L, 590 Turbo*, 590 Super L, 590 Super M Wear Plate (Extendible Dipper) 363321A1 $75.00 View Info
8 Greaseable Dipper Stick to Bucket Link Pin for Case 580K Backhoe, Part #D132493 See Details 580K Before Serial Number JJG0020000 Pin, Bucket Link to Dipper Stick D132493 $113.00 View Info
9 Case Backhoe Dipper Stick Spacer Bushing See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Spacer, Bucket Links D141076 $84.00 View Info
12 Case Backhoe Outer Dipper Stick by Broken Tractor 87600242 | Broken Tractor See Details 580K, 580 Super K, 580 Super L, 580 Super M Outer Dipper Stick (New) 87600242 $4,645.00 View Info
12, 16 Case Backhoe Replacement Bushing for Enhanced Dipper Performance See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, Dipper Stick D140029 $18.00 View Info
13 Case 580K Bucket Cylinder Pin See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin, Dipper Stick to Bucket and Dipper Cylinder D141666 $54.00 View Info
13 Case 580K Extendahoe Cylinder Pin See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Pin, Extendahoe Cylinder Tube End 300588A1 $44.00 View Info

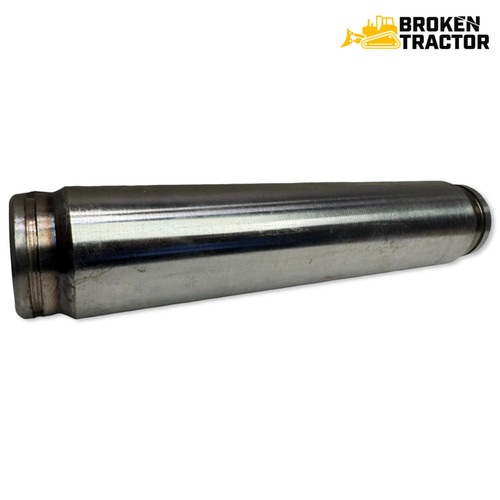

15 Case 580K Dipper Cylinder Rod Pin See Details 580K*, 580 Super K, 580 Super L, 580 Super M Pin, Dipper and Bucket Cylinder Rod End D138022 $74.00 View Info
19 Case Backhoe Bushing, Dipper to Quick Coupler 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M -- 307186A1 See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, Dipper to Quick Coupler 307186A1 $34.00 View Info
(8-Bucket), (10-Dipper) Bucket Pin for Case 580K Backhoe See Details 580K, 580 Super K, 590 Turbo Pin, Bucket to Dipper (13"+) D140655 $58.00 View Info
(10 & 17-Bucket), (6-Front Axle) D138047 Bushing for Case 580K to 590 Super N See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N, 585G, 586G, 588G, 586H, 588H, 570LXT, 570MXT, 570NXT Bushing (60mm OD) D138047 $24.00 View Info
Several Case Backhoe Bushing for Dipper Stick at Boom Connection - Fits 580 Series See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, Dipper at Boom, (580K - Swing Tower) D150121 $24.00 View Info
Case 580K Backhoe Bucket Cylinder Rod Eye Bushing See Details 580K Bushing, Backhoe Bucket Cylinder Rod Eye G108525 $26.00 View Info
Case Backhoe Hydraulic Line Rubber Support Cushion See Details 580K-III, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Hydraulic Line Support 184297A1 $98.00 View Info
Case Backhoe Snap Ring for 1.5" Diameter Pins | D25279 See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (1.5" Pins) D25279 $4.50 View Info
Heavy Duty Pin Retainer Snap Ring for Case Backhoes at Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (1.75" Pin) 103-16175 $3.75 View Info
Case Backhoe Snap Ring for 2" Pins -- 84158898 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (2" Pins) 84158898 $6.00 View Info
Case Backhoe Washer - 1.5", 10 Gauge Thickness -- U11649 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.5" Pins) (10-Gauge / 0.140" Thick) U11649 $4.00 View Info
Case Backhoe Pin Washer | D28610 See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.5" Pins) (14-Gauge / 0.078" Thick) 495-81292 $3.25 View Info
1.75" Pin Washer for Case Backhoes | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Washer, 1.75" Pin Diameter 495-81226 $3.50 View Info
Case Washer 1.75" - 14 Gauge -- 30575 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.75" Pins) 30575 $3.25 View Info
Case Washer 2" x 3" OD 495-81282 See Details 2-Inch Diamter Pin Washer 87690482 $4.00 View Info
Case Backhoe Extendahoe Locking Pin D140247 See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M Locking Pin, Extendahoe D140247 $38.00 View Info
Bushing for Case 580K Boom Cylinder Rod D141555 See Details 580K, 580 Super K, 580 Super L, 580 Super M Hydraulic Cylinder Bushing (Click for Locations) D141555 $18.00 View Info
Bushing driver removal tool for heavy equipment See Details Universal – Fits dozers, excavators, loaders, and backhoes Bushing Driver Removal Tool BushingDriver $44.00 View Info

Case Backhoe Extendahoe Dipper Stick Pins and Bushings - Case 580K, 580 Super K



Fits Models At A Glance:

  • Case Backhoe: 580K, 580 Super K (Extendahoe Dipper)

Key Notes:

  • Application: Replacement pins, bushings, and hardware for Extendahoe dipper sticks on Case 580K and 580 Super K backhoes

  • Function: Rebuilds worn Extendahoe pivot points, restoring strength, tightness, and digging performance

  • Components Available: Extendahoe dipper pins, bushings, wear sleeves, and rebuild kits

  • Location: Extendahoe dipper stick pivot and slide assemblies

  • Material: Heavy-duty machined steel pins and precision-fit bushings designed for long service life

  • Part Numbers: (Insert part numbers from the individual products listed under this category)

Why Choose Broken Tractor:

  • ✅ Complete Extendahoe Dipper Stick Pin & Bushing Kits for Case 580K–580 Super K

  • ✅ Heavy-Duty Steel Construction for Rugged Loader Backhoe Use

  • ✅ Fast Shipping and Reliable U.S.-Based Support
