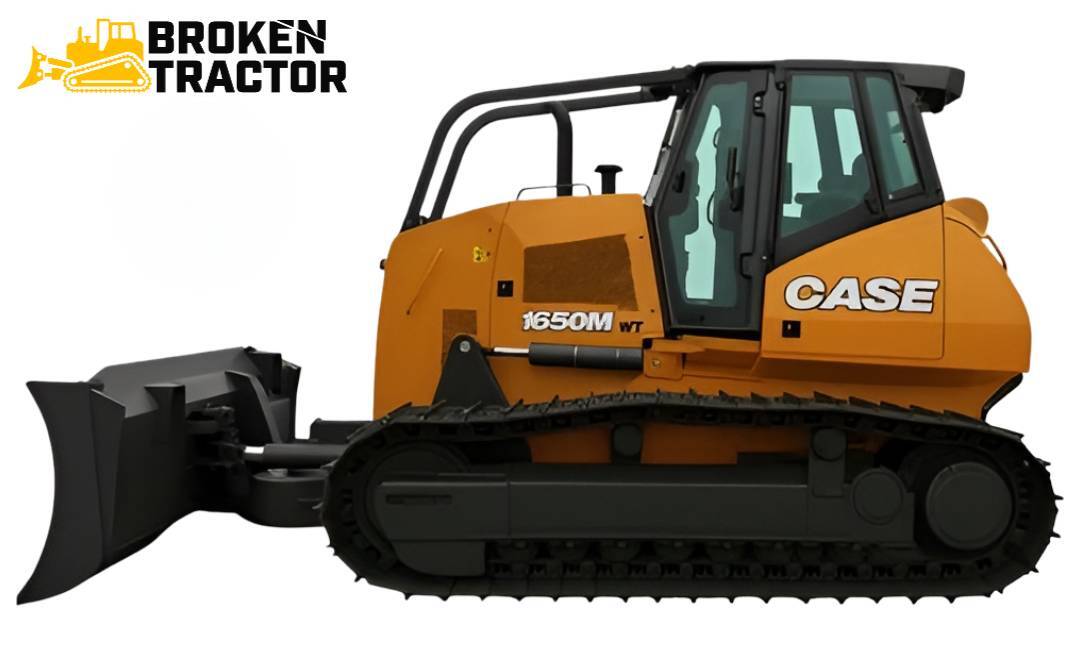

Case 1650M Crawler Dozer: Specs, Parts & Common Issues

Produced 2013 onward, the Case 1650M is the current-production heavy-class Case crawler dozer - FPT-built Tier 4 Final / Stage V six-cylinder turbocharged diesel with SCR + DEF aftertreatment, hydrostatic dual-path transmission, and the most refined cab and electronics in the 1650 line. The M-generation builds on the L-generation Tier 4 Interim platform with the SCR + DEF emissions transition, LiveLink Pro telematics, and improved operator ergonomics.

Broken Tractor Editorial Team• Updated May 2026• 10 min read

The Case 1650M Crawler Dozer is the current-production heavy-class Case crawler dozer, in production from approximately 2013 onward. The M-generation continues the hydrostatic dual-path drivetrain architecture used since the 1150H / 1650K and moves to Tier 4 Final emissions compliance via SCR (selective catalytic reduction) + DEF (diesel exhaust fluid) aftertreatment. The 1650M’s engine is built by FPT (Fiat Powertrain Technologies) - the Iveco / Case IH / New Holland industrial engine group - replacing the Cummins QSB-family used on prior 1650 generations.

SCR + DEF is fundamentally different from the Tier 4 Interim DPF used on the 1650L. The 1650M has no DPF - it uses DEF (a urea-water solution) injected into the exhaust to break down NOx instead. The trade-off is a new set of service items: DEF tank, DEF supply pump, DEF injector, NOx sensors. Cab, controls, and telematics see substantial refreshes on the M generation.

The 1650M is the current-production heavy-class Case dozer The 1650M is in active production. Parts are available as new OEM, with aftermarket and reconditioned options developing as the field service population grows. Service literature is the most recent edition of Case’s heavy-class dozer documentation.

At-a-glance specifications

Case 1650M - factory specifications

Production years: 2013 onward (current production)
Predecessor: Case 1650L (Tier 4 Interim)
Engine: FPT (Fiat Powertrain Technologies) NEF 6-cyl turbocharged diesel, Tier 4 Final
Displacement: ~6.7 L (configuration dependent)
Power: ~215 - 235 horsepower flywheel (configuration dependent)
Transmission: Hydrostatic dual-path
Emissions tier: Tier 4 Final (North America) / Stage V (Europe markets)
Aftertreatment: SCR (Selective Catalytic Reduction) + DEF (Diesel Exhaust Fluid)
Variants: Standard, LT (Long-Track), LGP (Low Ground Pressure)
Operating weight: ~46,000 - 50,000 lb depending on variant
Hydraulic system: Load-sensing implement hydraulics
Telematics: Case SiteWatch / LiveLink Pro
Blade: 6-way bulldozer blade with refined geometry
Serial plate location: Right side of cab platform, near operator entry

How the 1650M differs from the 1650L predecessor

Tier 4 Final SCR + DEF aftertreatment - replaces the 1650L’s cooled EGR + DPF. SCR uses urea (DEF) injection into the exhaust to break down NOx. Eliminates DPF ash service; adds DEF tank refill and DEF quality concerns.
FPT NEF six-cylinder engine - the 1650M moves to the FPT NEF six-cylinder family, replacing the Cummins QSB-family used on the 1650L. FPT NEF engines share architecture with the Iveco / Case IH / New Holland industrial lineup.
LiveLink Pro telematics - the 1650M integrates Case SiteWatch / LiveLink Pro remote monitoring.
Cab refresh - improved visibility, refined HVAC, updated instrumentation panel, improved operator ergonomics.
Refined hydrostatic calibration - additional software refinement for low-speed grading and joystick proportional response.

FPT NEF six-cylinder engine (Tier 4 Final / Stage V)

The 1650M uses the FPT (Fiat Powertrain Technologies) NEF six-cylinder turbocharged diesel - the same engine family used on the 1150M, 850M, 750M, and 650M. FPT NEF engines share architecture with the Iveco / Case IH / New Holland agricultural and industrial lineup, and parts service is supported through the FPT and Case dealer networks.

Routine engine service items: filters (engine oil, fuel, air, DEF supply filter), water pump, alternator, turbocharger. The DEF supply filter is a new service item not present on the 1650L.

Browse the Case Dozer Parts hub for current 1650M-era engine and emissions service kits.

Tier 4 Final SCR + DEF aftertreatment

The SCR + DEF aftertreatment system has several routine service points:

DEF tank and DEF quality

The DEF tank is separate from the diesel fuel tank. Operators refill DEF on a separate schedule - DEF consumption rate is typically 3-5% of diesel consumption. DEF freezes below approximately 12°F (-11°C) and degrades when stored for extended periods or at high temperatures. Contaminated or degraded DEF causes SCR-system fault codes and reduced engine power.

DEF supply pump and DEF lines

The DEF supply pump pulls DEF from the tank, filters it, and pressurizes it for injection into the exhaust stream. Pump failure is a routine service item at production-run age, as is DEF line wear (especially the heated lines that prevent DEF freezing in cold operation).

DEF injector and SCR catalyst

The DEF injector atomizes DEF into the exhaust upstream of the SCR catalyst. Injector clogging from DEF deposits is a routine fault. The SCR catalyst itself has a long service life but does need eventual replacement.

NOx sensors

Two NOx sensors monitor exhaust before and after the SCR catalyst - they verify SCR is performing correctly. Sensor failure is routine production-run-age wear.

Hydrostatic dual-path transmission

The 1650M retains the hydrostatic dual-path architecture used since the 1150H / 1650K. Each track has its own variable-displacement pump and hydraulic motor controlled by joystick. The M generation refines the calibration further with LiveLink telematics integration for fault reporting.

Hydrostatic service items remain consistent across H/K/L/M generations: charge pump, charge filter, hydraulic motor seals, drive pump bearings, control valve degradation.

Variants: Standard, LT, LGP

The 1650M shipped in three primary track configurations:

Standard - standard-width track, balanced general-purpose dozing.
LT (Long Track) - extended-length track frame for additional flotation and stability.
LGP (Low Ground Pressure) - wider grouser pads and extended track frame for soft-ground / wetlands / agricultural-soil work.

Variant affects undercarriage parts. Confirm Standard vs. LT vs. LGP by serial before ordering.

LiveLink Pro telematics

Case SiteWatch / LiveLink Pro provides remote monitoring of the 1650M’s operational data - engine hours, fuel and DEF consumption, fault codes, location tracking, and operational analytics. For fleet operators, LiveLink turns the 1650M into a connected machine: proactive maintenance scheduling becomes practical, fault codes are visible remotely before the operator notices a warning.

Common 1650M service items

DEF system service

DEF quality, DEF tank ventilation, DEF supply pump, DEF injector, and the heated DEF lines are all routine production-run-age service items. Many SCR-system fault codes trace back to DEF quality or supply problems rather than the SCR catalyst itself.

Routine filter changes

Engine oil, fuel, air, DEF supply, and hydraulic filter changes on schedule. The hydrostatic system in particular is intolerant of contamination.

NOx sensor service

NOx sensors are routine wear items.

Cab and electronics

The 1650M’s electronic instrumentation, joystick electronics, and LiveLink telematics modules are sophisticated and integrated. Most diagnostic codes resolve with software updates or connector service; some require dealer-level diagnostics.

Blade cutting edge wear

Routine blade-related service item. End bits wear faster than the center cutting edge.

Parts and cross-fit components for the Case 1650M

Component area	What to look for	Notes
Engine filter service kit	Engine oil, fuel, air filters	1650M-specific (FPT NEF Tier 4 Final).
DEF supply filter	DEF filtration cartridge	1650M-specific (SCR system). Filters DEF before injection.
NOx sensors (upstream + downstream)	Exhaust NOx monitoring sensors	1650M-specific Tier 4 Final emissions. Routine wear items.
Blade cutting edges & end bits	Standard and severe-duty cutting edges, end bits	Aftermarket cutting edges widely available for the 1650M’s heavy-class blade.
Blade cylinder seal kits	Angle, tilt, lift cylinder seal kits	1650M-specific. Confirm cylinder dimensions before ordering.
Track undercarriage	Track pads, idlers, rollers, master pins	1650M-specific by variant (Std / LT / LGP).
Hydrostatic system service parts	Charge pump, charge filter, drive pump components	Hydrostatic-specific service items.
FPT NEF engine accessories	Water pump, alternator, starter, fuel injection	FPT industrial parts ecosystem.
Turbocharger	FPT NEF turbocharger	1650M-specific turbocharger.
Radiators & cooling	Radiator cores, fan belts, hose sets	1650M-specific cooling system.
Operator seat	Suspension seat with mount kit	Universal Case industrial seats fit the 1650M operator station.

For the complete 1650M parts inventory, browse the Case Dozer Parts hub.

Working on a Case 1650M?

The 1650M is current-production - OEM parts are the primary source and our specialists can verify Standard vs. LT vs. LGP fitment by serial. We can also walk you through the SCR / DEF service profile and LiveLink fault diagnostics.

Mon - Fri, 7:00 AM - 5:00 PM CT

Request a Part

Where the 1650M sits in the Case dozer family

The 1650M is the current-production heavy-class Case crawler dozer, sitting between the Case 1150M and the larger 1850-class machines. Its predecessor is the Case 1650L (Tier 4 Interim, EGR + DPF). The M continues the hydrostatic dual-path drivetrain architecture introduced on the 1150H / 1650K and moves to Tier 4 Final SCR + DEF emissions architecture.
