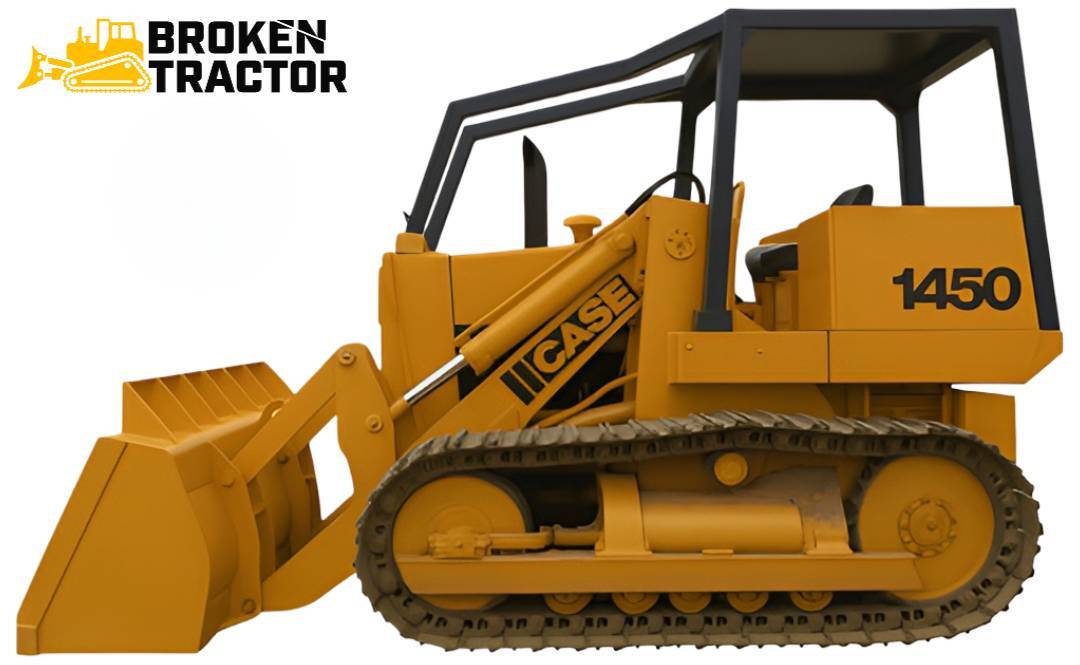

Case 1450 Crawler Dozer: Specs, Parts & Common Issues

Produced 1973 – 1980, the Case 1450 is the original heavy-class Case crawler dozer above the 1150 — Case A504BDT inline six-cylinder turbocharged diesel, power shift transmission with torque converter, and a substantial step up in pushing power, blade size, and operating weight compared to the 1150 family. The 1450 anchored Case's heavy crawler dozer offering through the 1970s before the 1450B refresh.

Broken Tractor Editorial Team• Updated May 2026• 10 min read

The Case 1450 Crawler Dozer is the original heavy-class Case crawler dozer, produced from 1973 through 1980. The 1450 sits above the Case 1150 in the Case construction dozer line of that era — substantially larger blade, more pushing power, heavier operating weight, and the turbocharged Case A504BDT six-cylinder engine. The 1450 is the heavy-class anchor in the original Case construction dozer line, with the 1450B following in 1977 (concurrent late 1450 production) and the larger 1550 / 1650 / 1850 families filling out the larger size classes later.

The 1450 is the heavy-class anchor of the original Case dozer line The 1450 family covers approximately 40-plus years across multiple sub-generations: original 1450 (1973–1980), 1450B (1977–1985), and the related crawler loader variants. The original 1450 set the chassis pattern and the Case A504BDT turbocharged engine that the 1450B refined through 1985. When sourcing parts, confirm which 1450 generation you're working on — parts that look interchangeable across the family often are not.

At-a-glance specifications

Case 1450 — factory specifications

Production years: 1973 – 1980
Successor: Case 1450B (1977 – 1985)
Engine: Case A504BDT inline 6-cylinder turbocharged diesel
Displacement: 504 cu in (~8.3 L)
Power: ~155 horsepower flywheel (configuration dependent)
Transmission: Power shift with torque converter
Hydraulics: Open-center implement circuit
Variants: Standard, LGP (Low Ground Pressure)
Operating weight: ~37,000 – 40,000 lb depending on configuration
Blade: 6-way bulldozer blade — angle and tilt blade options
Serial plate location: Right side of operator's platform / chassis frame

How the 1450 differs from the 1150 below

Substantially larger frame — heavier chassis and longer wheelbase for additional stability under heavy dozing loads.
Turbocharged 8.3 L six-cylinder engine — the Case A504BDT is a larger-displacement, turbocharged engine vs. the naturally aspirated A451B used on the 1150.
Higher operating weight — approximately 10,000 lb heavier than a comparable 1150, translating to more pushing power under load.
Larger blade — wider and taller bulldozer blade for greater material capacity.
Heavier-duty undercarriage — larger sprockets, larger idlers, heavier track frame, and wider track pad options.

Case A504BDT inline 6-cylinder turbocharged engine

The original Case 1450 uses the Case A504BDT inline six-cylinder turbocharged diesel — 504 cubic inches of displacement (approximately 8.3 liters). The A504 is the larger Case heavy-class diesel of the 1970s, with turbocharging adding substantial power and torque over a naturally aspirated equivalent. Approximately 155 horsepower flywheel in 1450-class trim.

The A504 engine ecosystem is broad — accessory parts (water pump, alternator, starter, oil pump) share with other heavy Case industrial 6-cyl applications of the era. Injection pump and injector service is well-documented. Turbocharger service is a routine wear item on these engines.

Power shift transmission with torque converter

The 1450 uses a power shift transmission with torque converter — clutchless gear changes under load, multiple forward and reverse speeds, torque converter providing smooth power transfer. Heavy-class power shift is the standard configuration on 1450 production. Routine service items include shift solenoids and pressure switches, clutch packs, the torque converter, transmission oil cooler, and the transmission filter.

Undercarriage

The 1450 undercarriage is heavier-duty than the 1150 family below — larger sprockets, larger idlers, heavier track frame, wider track pad options. Sprocket bolt patterns, idler geometries, and master pin dimensions are specific to the 1450-class — confirm by part number against your serial.

Browse the Case Dozer Parts hub for current 1450-era undercarriage availability.

Blade system and hydraulics

The 1450 ships with a 6-way bulldozer blade — wider and taller than the 1150's blade. Angle and tilt control are hydraulically actuated. Blade cylinders, blade-carrier slider blocks, and cutting edges are routine service items. Cutting edge replacement is generally needed every few hundred to few thousand hours of dozing depending on material and operator habit.

Hydraulic implement-circuit pressure is moderate by modern standards — open-center hydraulic systems were standard in this era. Seal kit availability for the blade cylinders is generally good.

Common service items on a 40-plus-year-old 1450

Engine accessory aging

Water pump, alternator, starter, injection pump, and turbocharger on the A504BDT are routinely rebuilt or replaced over the engine's service life. Cooling system service (radiator core flush or replacement, fan belt, hose set) is a routine maintenance milestone on 40-plus-year-old machines.

Turbocharger wear

The A504BDT turbocharger is a routine wear item. Symptoms: blue smoke at startup or under load, oil consumption, audible whine outside the normal range, visible shaft play.

Power shift / torque converter service

Shift solenoid failure, clutch pack wear, torque converter degradation, transmission oil cooler service.

Hydraulic seal failure

Blade cylinder seal failures are common at this age. Cylinder rod chrome corrosion and seal weep are typical symptoms.

Undercarriage replacement cycles

Heavy-class undercarriage components have measurable wear lives. Modern aftermarket undercarriage is available for the 1450 family.

Operator station and ROPS

Cab and canopy hardware, seat cushion replacement, and floorboard wear are typical aging-machine issues. ROPS structural integrity should be verified before resale.

Wiring and electrical

40-plus-year-old wiring harnesses are routinely brittle.

Parts and cross-fit components for the Case 1450

Component area	What to look for	Notes
Sprockets & segments	Heavy-class track sprocket assemblies, bolt-on segments	Cross-fits 1450 / 1450B family on shared bolt patterns.
Idlers & rollers	Heavy-class front idler assemblies, top and bottom roller sets	Cross-fits the 1450 large-class undercarriage.
Track recoil & adjusters	Recoil spring, adjuster yoke, chrome rod	Confirm by serial — production-run changes apply.
Master pins	Heavy-class track master pin and bushing	Master pins share geometry across the 1450 family.
Cutting edges & end bits	Standard and severe-duty cutting edges, end bits	Aftermarket cutting edges widely available for the 1450's heavy-class blade.
Blade cylinder seal kits	Angle, tilt, lift cylinder seal kits	Confirm cylinder dimensions before ordering.
Engine accessory parts	Water pump, alternator, starter, fuel injection	Case A504BDT accessories share parts with other heavy Case industrial 6-cyl applications.
Turbocharger (A504BDT)	Heavy-class turbocharger	Routine wear item — aftermarket rebuild and replacement available.
Radiators & cooling	Radiator cores, fan belts, hose sets	Heavy-class cooling system. Aftermarket radiator cross-fit available.
Filter service kits	Engine oil, fuel, air, hydraulic filter sets	Filter kits packaged by application speed routine service.
Power shift transmission parts	Shift solenoids, clutch packs, oil cooler, torque converter	Cross-fit with 1450B power shift family.
Operator seat	Universal industrial seat with mount kit	Universal Case industrial seats fit the 1450 operator station.

For 1450-era parts inventory and cross-fit confirmation, browse the Case Dozer Parts hub or contact our parts desk directly.

Working on a Case 1450?

The original 1450 is the heavy-class anchor of the 1970s Case dozer line — Case A504BDT turbocharged 8.3 L six-cylinder, power shift with torque converter. Our specialists can verify Standard vs. LGP fitment by serial and walk you through the 1450 family's cross-fit options.

Mon – Fri, 7:00 AM – 5:00 PM CT

Request a Part

Why the 1450 is still in service

The 1450 is a heavy-class crawler dozer with substantial pushing power for serious dirt work, major road maintenance, and large-acreage land-clearing. The Case A504BDT turbocharged six-cylinder is well-documented, and the power shift drivetrain with torque converter is simpler to troubleshoot in the field than modern hydrostatic systems. For commercial and large agricultural operations that need a heavy-class dozer without the complexity of newer Tier 4 machines, a 1450 in good mechanical condition remains a productive machine.

Broken Tractor Editorial Team

This spotlight was compiled from factory Case service literature for the 1450 production family, CNH parts catalogs, Case A504BDT engine documentation, and the verified BigCommerce catalog at brokentractor.com.
