CALL or TEXT (800) 909-7060

King Kutter 6', 7' Heavy Duty Lift Cutter

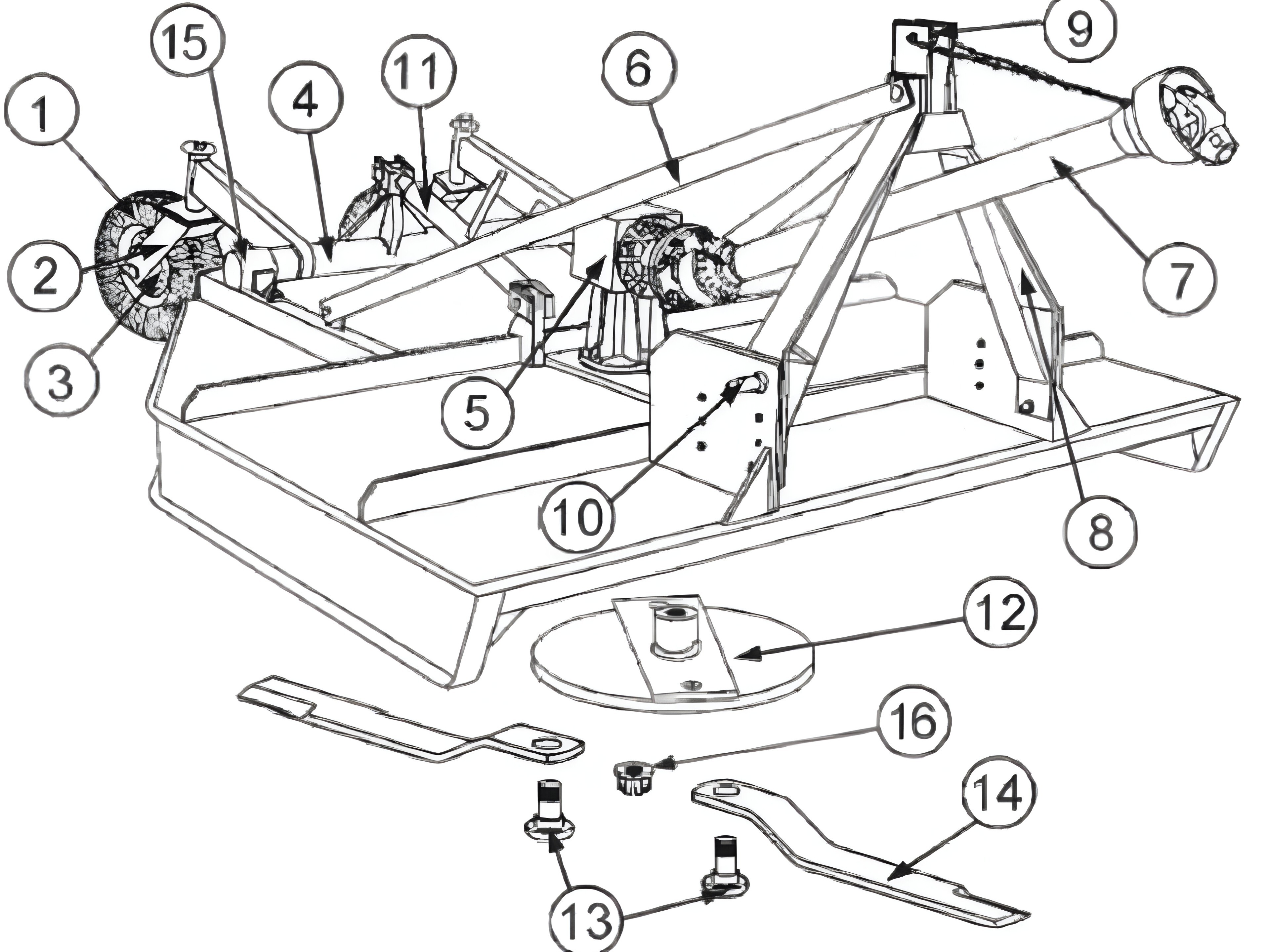

Each number on the image is a "Ref #" that can be matched on the table below.

Fits Models At A Glance: King Kutter Heavy Duty Rotary Cutters: 5', 6', 7' Key Notes: Includes: Tire, rim, and hub assembly Fitment: Direct replacement for King Kutter Heavy-Duty series rotary cutters Part Numbers: 501000 Weight: 27.30 lbs (12.38...

Fits Models At A Glance: King Kutter Heavy-Duty Rotary Cutters:5-Foot, 6-Foot, and 7-Foot Models Key Notes: Part Number: 403602 Application: Replacement wheel fork assembly for King Kutter heavy-duty rotary cutters Function: Supports the tail...

Fits Models At A Glance: King Kutter HD Lift Rotary Cutters: 5', 6', 7' Key Notes: Includes: Cast iron wheel hub assembly Fitment: Direct OEM replacement for King Kutter  Part Numbers: 191200 Weight: 7.35 lbs (3.33 kg) Material: Cast iron Why...

Fits Models At A Glance: 6-Foot Rotary Cutter (403600): Model #: L-72-60-HD, L-72-80-HD For 6' rotary cutters rated at 60 HP or 80 HP 7-Foot Rotary Cutter (403601): Model #: L-84-60-HD, L-84-80-HD For 7' rotary cutters rated at 60 HP or 80...

Fits Models At A Glance: King Kutter HEAVY DUTY Rotary Cutters: 5' Wide, 6' Wide, 7' Wide Fits Cutters with 60 Horsepower Gearbox and a Slip Clutch *Note: 6 & 7-Foot cutter with an 80 Horsepower Gearbox Use 184080 Key Notes: Part Number:...

Fits Models At A Glance: King Kutter HD Rotary Cutters: 6' Heavy-Duty, 7' Heavy-Duty models Note: Fits King Kutter brand implements only Key Notes: Part Numbers: 184080 Application: Gearbox assembly for rotary cutter drive Input Shaft:...

Fits Models At A Glance: Heavy Duty Lift Mowers: 6’ models rated for 60HP Heavy Duty Lift Mowers: 6’ models rated for 80HP Key Notes: Function: Reinforces and stabilizes the lift arm assembly on heavy-duty rotary mowers Dimensions:...

Fits Models At A Glance: Heavy Duty Lift Mowers: 7’ models rated for 60HP Heavy Duty Lift Mowers: 7’ models rated for 80HP Key Notes: Function: Strengthens and supports the lift arm assembly on heavy-duty rotary mowers Dimensions:...

Fits Models At A Glance: 5-Foot (Standard Duty) Rotary Cutter SKU: 147129 Length: 29" Weight: 38 lbs (17.24 kg) 5-Foot (Heavy Duty) Rotary Cutter 6-Foot (Standard Duty) Rotary Cutter 5-Foot (Heavy Duty) Rotary Cutter 6-Foot (Heavy Duty) Rotary...

Fits Models At A Glance King Kutter Rotary Cutters: 7-Foot-Wide Heavy-Duty Lift Cutters Brand: King Kutter implements only Key Notes Weight: 62.00 lbs (28.12 kg) Part Number: 147248 Application: Replacement PTO drive shaft with slip clutch...

Fits Models At A Glance King Kutter: 6 and 7 Foot Rotary Cutters (60 HP) King Kutter: 6 and 7 Foot Rotary Cutters (80 HP) Key Notes Weight: 34.65 lbs (15.72 kg) Part Number: 403658 Application: Replacement lift arm assembly for King Kutter 6'...

Fits Models At A Glance King Kutter: 6 Foot HD Rotary Cutters King Kutter: 7 Foot HD Rotary Cutters Key Notes Weight: 15.30 lbs (6.94 kg) Top hole diameter: 1” Bottom hole diameter: 1 3/8" Part Number: 403402 Application: Replacement...

Fits Models At A Glance: King Kutter Heavy-Duty Lift Type Rotary Cutters:5-Foot, 6-Foot, and 7-Foot Models Key Notes: Part Number: 500002 Application: Replacement Category 2 lift pin set for King Kutter heavy-duty rotary cutters Function:...

Fits Models At A Glance King Kutter HD Rotary Cutters: 6 Foot, 7 Foot, 10 Foot Models King Kutter Arena Renovators Key Notes Weight: 13.30 lbs (6.03 kg) Part Number: 195170 Application: Adjustable ratchet jack used for height adjustment and...

Fits Models At A Glance: King Kutter Rotary Cutters: 5' HD, 6' HD Key Notes: Weight: 67.00 lbs (30.39 kg) Part Number: 403041 Application: Blade carrier for rotary cutter assemblies Location: Mounted under gearbox to drive cutter...

Fits Models At A Glance King Kutter: 7-Foot Heavy-Duty Rotary Lift Cutters Key Notes Weight: 166.00 lbs (75.30 kg) Part Number: 403033 Ships LTL Truck Freight Application: Replacement blade carrier assembly for 7' King Kutter Heavy-Duty rotary...

Fits Models At A Glance King Kutter: All King Kutter Heavy Duty Rotary Cutter Models Key Notes Weight: 5.25 lbs (2.38 kg) Part Number: 501002 Specs: 1-1/8" x 3" bolt size Application: Replacement blade bolt set for securing blades on...

Fits Models At A Glance King Kutter: 6 Foot industrial-grade Rotary Cutters King Kutter: 7 Foot industrial-grade Rotary Cutters Key Notes 7-Inch Diameter Weight: 7.35 lbs (3.33 kg) Part Number: 403430 Application: Replacement axle end cap for...

Fits Models At A Glance: King Kutter 40HP Gearbox Applications: XB Series: 48" Rotary Mower Flex Hitch Series: 4', 5', 6' Flex Hitch Finish Mowers Standard Series: 4', 5', 5.5', 6' Rotary Cutters and 7' Finish Mowers King Kutter 60HP Gearbox...

Fits Models At A Glance: King Kutter Heavy Duty Rotary Cutters: 6' HD, 7' HD  Key Notes: Includes: Set of two mower blades Dimensions: 30" x 4" (762 mm x 102 mm) Fitment: For King Kutter 6-foot and 7-foot mower decks Application:...

REF # Image Fits Model Description Part # Price Product Details
1 King Kutter Tire & Rim with Hub | 501000 | Broken Tractor See Details Heavy Duty Rotary Cutters Tire & Rim with Hub 501000 $140.00 View Info
2 King Kutter Heavy Duty Wheel Fork Assembly | 403602 | Broken Tractor See Details Heavy Duty Rotary Cutters Wheel Fork 403602 $130.00 View Info

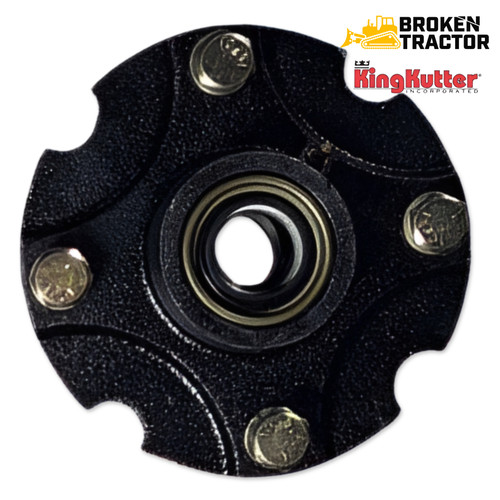

3 Wheel Hub Assembly for King Kutter 5', 6', 7' HD Lift Cutter See Details Heavy Duty Rotary Cutters Tail Wheel Hub 191200 $84.00 View Info
4 Cross Axle Assembly for King Kutter Rotary Cutters See Details Heavy Duty Rotary Cutters Cross Axle Assembly 403600-403601 $330.00 View Info
6 King Kutter 60-HP Gearbox for 6' Rotary Cutter
See Details Rotary Cutters 60-HP Gearbox (Slip Clutch) 184065 $464.00 View Info
5 King Kutter 80-Hp Gearbox See Details 6 & 7-Foot Heavy Duty Rotary Cutters 80-HP Gearbox (Slip Clutch) 184080 $615.00 View Info
6 Lift Arm Brace – 6’ Lift Mower See Details 6-Foot Heavy Duty Rotary Cutters Lift Arm Brace HD 310619 $58.00 View Info
6 Lift Arm Brace – 7’ Lift Mower See Details 7-Foot Heavy Duty Rotary Cutters Lift Arm Brace HD 310609 $64.00 View Info
PTO Drive Shaft (Splined for Slip Clutch) for King Kutter 5' & 6' Rotary Cutters See Details 5-Foot HD, 6-Foot Rotary Cutters PTO Drive Shaft (Slip Clutch) 147129-147134 $310.00 View Info
147248 King Kutter Rotary Cutter Drive Shaft for Slip Clutch See Details 7-Foot-Wide Heavy-Duty Lift Cutters PTO Drive Shaft (Slip Clutch) (48") 147248 $575.00 View Info
8 Lift Arm Assembly for King Kutter 6' & 7' Rotary Cutters See Details Heavy Duty Rotary Cutters Lift Arm 403658 $120.00 View Info
9 403402-Swivel Yoke Assembly for King Kutter Cutters See Details Heavy Duty Rotary Cutters Top Link Swivel Yoke 403402 $78.00 View Info
10 King Kutter Cat II Lift Pin  500002 See Details Heavy Duty Rotary Cutters Cat II Lift Pin Set 500002 $22.00 View Info
11 195170 Top Link Ratchet Jack for King Kutter 6', 7', 10' Rotary Cutters See Details 6', 7', 10' HD Cutters & Renovator Ratchet Jack 195170 $104.00 View Info
12 King Kutter 5', 6' HD Blade Carrier -- 403041 | Broken Tractor See Details 5' HD, 6' HD Rotary Cutters Blade Carrier 403041 $275.00 View Info
12 Blade Carrier for King Kutter HD 7-Foot Rotary Cutters See Details 7-Foot Heavy Duty Rotary Cutters Blade Carrier 403033 $504.00 View Info
13 501002 King Kutter Heavy Duty Blade Bolt Set See Details Heavy Duty Rotary Cutters Blade Bolt Set 501002 $55.00 View Info
15 403430 Cross Axle End for King Kutter HD Rotary Cutters See Details Heavy Duty Rotary Cutters Axle End Cap 403430 $45.00 View Info
17 King Kutter Rotary Cutter Stump Jumper Castle Nut | 501110 | Broken Tractor See Details Rotary Cutters Castle Nut 501110 $18.00 View Info
23 King Kutter 6', 7' Blade Set (30" X 4") | 501230 | Broken Tractor See Details 6 & 7-Foot Heavy Duty Rotary Cutters HD Rotary Cutter Blade Set 501230 $170.00 View Info

king-kutter-hd-rotary-cutter-parts-breakdown



The King Kutter 6' and 7' Heavy Duty Lift Cutter category offers an impressive range of robust equipment tailored for tackling demanding land maintenance tasks. Ideal for agricultural and large property applications, these lift cutters are engineered to deliver superior performance in cutting, clearing, and managing brush and overgrown vegetation.

Designed with heavy-duty construction, King Kutter lift cutters are built to withstand the rugged conditions of heavy land use. The products in this category, including tire and rim assemblies, wheel hub components, and blade setups, reflect the high standards of durability and efficiency that King Kutter is known for. The cutting blades are optimized for performance, ensuring that they can handle tough vegetation with ease.

With various essential components available, such as the heavy-duty wheel fork assembly and the flexible hitch height adjustment bar, users can customize their equipment for specific tasks and terrains. The lift arm and swivel yoke assemblies provide reliable functionality while ensuring smooth operation in various home and commercial landscaping projects.

Additional features like the robust gearbox and rotary cutter drive shaft set ensure longevity and performance, making the King Kutter heavy-duty lift cutters a smart investment for anyone serious about land management. Users can also benefit from a selection of accessories, ensuring that every piece of equipment can be tailored to meet specific needs.

Overall, the King Kutter 6' and 7' Heavy Duty Lift Cutter category underscores a commitment to quality, reliability, and performance in land maintenance. Embrace the versatility and toughness of King Kutter products and take on any vegetation challenge with confidence.
