John Deere Backhoe Planetary and Valve
Each number on the image is a "Ref #" that can be matched on the table below.
| REF # | Image | Fits Model | Description | Part # | Price | Product Details | |
See Details
|
210C, 310C, 315C, 300D, 310D, 315D, 482C | Breather, Reverser Transmission | T112905 |
$14.00
|
View Info | ||
See Details
|
210C, 310C, 310D, 300D, 315C, 315D, 482C | Complete Reverser Rebuild Kit (Reman Torque Converter, High Output Pump, Gaskets, Bearings, Clutches) | 350 | JD-CRRK |
$1,445.00
|
View Info | |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Master Reverser Rebuild Kit (High Output Pump, Gaskets, Bearings, Clutches) | A574013 |
$610.00
|
View Info | ||
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Reverser Rebuild Kit (Gaskets, Bearings, Clutches) | A574012 |
$315.00
|
View Info | ||
See Details
|
210C, 300D, 310C, 310D, 315C, 315D, 482C | Reverser Gasket and Seal Kit | A502002 |
$115.00
|
View Info | ||
| 1 |
See Details
|

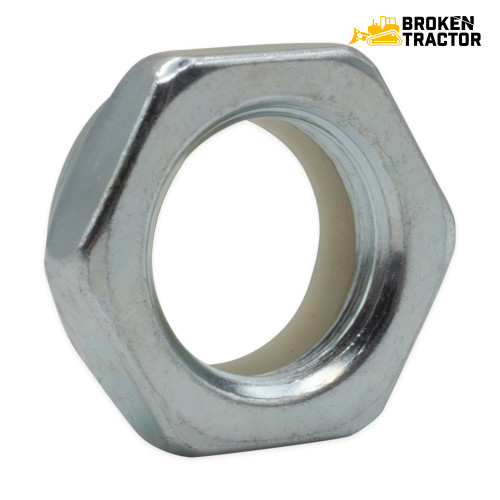

210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Planetary Shaft Nut | N101345 |
$5.00
|
View Info | |
| 2 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Output Shaft Washer | T101035 |
$4.50
|
View Info | |
| 4 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Shaft Seal | AN152163 |
$12.00
|
View Info | |
| 5 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Bearing Retainer | T101018 |
$120.00
|
View Info | |
| 6 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Gasket | D50058. |
$4.00
|
View Info | |
| 7 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Bearing | JD8518 |
$25.00
|
View Info | |
| 8 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Spacer | T101019 |
$60.00
|
View Info | |
| 9 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | O-Ring (Reverser Filter) | R27564 |
$1.50
|
View Info | |
| 10 |
See Details
|

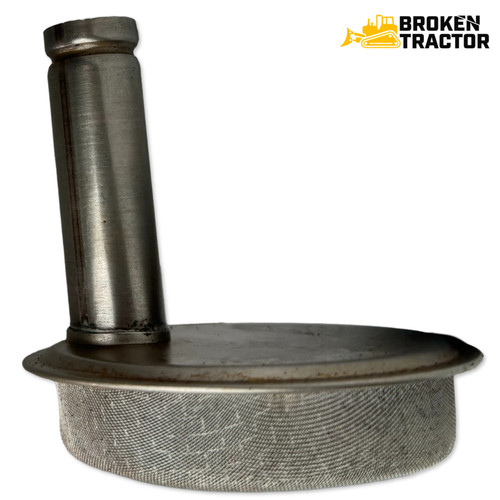

210C, 310C, 310D, 482C, 315C, 315D | Oil Pickup Filter, Metal | AT101463-HD |
$84.00
|
View Info | |
| 10 |
See Details
|
210C, 310C, 310D, 482C, 315C, 315D | Oil Pickup Filter, Plastic | AT101463 |
$124.00
|
View Info | |
| 11 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Gasket, Oil Pan | R29956. |
$5.00
|
View Info | |
| 12 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Needle Bearing | JD8861 |
$25.00
|
View Info | |
| 13 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Sealing Ring | D50080.. |
$6.00
|
View Info | |
| 14 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Needle Bearing | JD10352 |
$11.50
|
View Info | |
| 15 |
See Details
|
210C, 310C, 310D, 482C, 315C, 315D | Planetary Assembly | AT101448 |
$620.00
|
View Info | |
| 16 |
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Oil Deflector | T133315 |
$51.00
|
View Info | |
| 17 |
See Details
|
210C, 310C, 315C, 482C | Actuator Solenoid | AT101493 |
$284.00
|
View Info | |
See Details
|
300D, 310D, 315D | Gasket | T133317 |
$8.00
|
View Info | ||
| 18 |
See Details
|
210C, 310C, 315C, 482C | O Ring | B15646 |
$2.00
|
View Info | |
| 19 |
See Details
|
210C, 310C, 315C, 482C | Shuttle Control Valve | AT101453 | View Info | ||
See Details
|
210C, 310C, 310D, 300D, 315C, 315CH, 315D, 482C | Gasket, Cover | T100683 |
$2.50
|
View Info | ||
| 20 & 21 |
See Details
|
(310D, 300D, 315C, 315D After Serial Number 792483) | Reverser Double Solenoid with Shaft (Forward - Neutral - Reverse) | AT1634AS22 |
$345.00
|
View Info | |
| 20 |
See Details
|
310D, 300D, 315C, 315D (All After Serial Number 792483) | Reverser Double Solenoid Coil (Forward - Neutral - Reverse) | AT163475 |
$174.00
|
View Info | |
| 21 |
See Details
|
300D, 310D, 315C, 315D (All After SN 792483) | Double Solenoid Cartridge (F-N-R) | AT163468 |
$194.00
|
View Info | |
| 22 & 23 |
See Details
|
(310D, 300D, 315C, 315D After Serial Number 792483) | Reverser Single Solenoid Assembly (Clutch Cut Out) | AT1634AS21 |
$295.00
|
View Info | |
| 22 |
See Details
|
(310D, 300D, 315C, 315D After Serial Number 792483) | Reverser Single Solenoid (Clutch Cut Out) | AT163482 |
$195.00
|
View Info | |
| 23 |
See Details
|
(310D, 300D, 315C, 315D After Serial Number 792483) | Clutch Cut-Out Solenoid Shaft | AT163477 |
$114.00
|
View Info | |
See Details
|
300D, 310D, 315D (All Before Serial # 792482 | O-Ring Kit, Reverser Clutch Disconnect | AT158661 |
$30.00
|
View Info |
John Deere Backhoe Reverser Planetary and Valve Parts
Browse our extensive selection of John Deere Backhoe Reverser Planetary and Valve Parts. These high-quality parts are designed for compatibility with multiple John Deere models, providing efficient gear shifting and improved machine control.
The John Deere Backhoe Planetary and Valve category features a comprehensive range of premium parts essential for maintaining the optimal performance of your equipment. Specializing in Reverser Valves and Planetary Assemblies, this selection ensures that you have access to the necessary components to enhance your backhoe’s functionality, especially for models like the 310C, 310D, and beyond.Designed to uphold the high standards synonymous with John Deere, these parts facilitate smooth gear shifting and improve overall machine control. Whether you need a complete Reverser Overhaul Kit or individual components like gaskets, seals, and solenoids, our inventory caters to a variety of repair and maintenance needs. Each product, from the Plastic Reverser Transmission Oil Pickup Filter to the Reverser Double Solenoid, is engineered for durability, guaranteeing that your machine operates efficiently with minimal downtime.
Additionally, our offerings include specialized kits that allow for comprehensive rebuilding, ensuring your backhoe continues to perform at its best. We pride ourselves on sourcing parts that seamlessly integrate with your existing equipment, providing peace of mind that each component is built for longevity and reliability.
Explore our selection, which is meticulously curated to meet the demands of both professional users and hobbyists alike. Whether you are tackling a small job or a major project, investing in high-quality Reverser Valve and Planetary components will ensure your John Deere backhoe remains a robust tool in your arsenal. Elevate your machine’s performance today with our carefully selected parts designed specifically for John Deere backhoes.
