| REF # | Image | Fits Model | Description | Part # | Price | Product Details | |
See Details
|
410C, 410D, 510D | Pin | T118680 | $148.00 | View Info | ||
See Details
|
210C, 310C | Pin | T100307 | $148.00 | View Info | ||
| 1 |
See Details
|
410B, 410C, 410D, 510B, 510C, 510D, 610B | Bushing, Swing Cylinder | 0 | R81487 | $28.00 | View Info |
| 1 |
See Details
|
310D, 315D, (410D After SN 801200) | Backhoe Boom Cylinder | AH154775 | $1,915.00 | View Info | |
| 2 |
See Details
|
315D, 410B, 410C, 410D*, 415B, 510B, 510C, 510D*, 515B, 610B, 610C | Bushing, Swing Cylinder Rod | R81488 | $29.00 | View Info | |
| 2 |
See Details
|
310C, 310D, 410C, 410D* | Dipper Crowd Cylinder | AH154776 | $1,854.00 | View Info | |
| 2 |
See Details
|
310C | Bushing, Swing Cylinder Rod | R84378 | $44.00 | View Info | |
| 3 |
See Details
|
310, 310A, 310B, 410 | Pin, Swing Cylinder Rod to Swing Tower | T37598 | $74.00 | View Info | |
| 3 |
See Details
|
310C, 310D, 410C, 410D* | Bucket Cylinder | AH147722 | $1,644.00 | View Info | |
| 4 |
See Details
|
410B, 510B, 510C, 610B, 610C | Pin, Lower Swing Tower to Frame | T67203 | $148.00 | View Info | |
| 3 |
See Details
|
315D, 410B, 410C, 410D*,415B, 510B, 510C, 510D*, 515B, 610B, 610C | Pin, Swing Cylinder to Tower | T69030 | $77.00 | View Info | |
| 4 |
See Details
|
310C After Serial # 761935 | Pin, Swing Tower to Frame (Upper & Lower) | T126916 | $74.00 | View Info | |
| 4 / 5 |
See Details
|
(310C Before Ser # 761935), 410B, 410C, (410D Before Ser # 80199), 510B, 510C, 610B, 610C | Pin, Swing Tower to Frame (Upper & Lower) | T78795 | $97.00 | View Info | |
| 6 |
See Details
|
210C, 310C, 310D | Bushing, Swing Tower (Upper / Lower) | T126935 | $44.00 | View Info | |
See Details
|
410B, 410D, 510B, 510C, 510D, 610B, 610C | Bushing, Frame at Swing Tower | T69146 | $45.00 | View Info | ||
| 7 |
See Details
|
310, 310A, 310B | Pin, Boom Cylinder to Swing Tower | 0 | U16051 | $50.00 | View Info |
| 7 |
See Details
|
310C | Pin, Boom Cylinder to Swing Tower | T125934 | $54.00 | View Info | |
| 8 |
See Details
|
(310 After S/N 236853), 310A, 310B, 310C | Bushing, Swing Tower at Boom | T126936 | $52.00 | View Info | |
| 4 / 19 |
See Details
|
300D, 310D, 310E, 310G, 310J, 310K | Bushing, Dipper at Boom | T162582 | $40.00 | View Info | |
| 8 |
See Details
|
410 | Bushing, Swing Tower at Boom | 0 | T33689 | $40.00 | View Info |
| 9 |
See Details
|
310, 310A, 310B, 310C | Pin, Swing Tower to Boom | 0 | T125914 | $54.00 | View Info |
| 9 |
See Details
|
410B, 410C, 410D, 510B, 510C, 510D, 610B, 610C | Pin, Swing Tower to Boom | 0 | AT86425 | $91.00 | View Info |
| 11 |
See Details
|
(310D After Serial # 802200), (410D After Serial # 801200) | Bushing, Boom Cylinder Tube End | 0 | H144296 | $30.00 | View Info |
| 11 |
See Details
|
410 | Bushing, Boom Cylinder Tube End | T33669 | $40.00 | View Info | |
| 2/ 13 |
See Details
|
310D, 310E, 310G, 310J, 310K, 310SE, 310SG, 310SJ, 310SK, 410E, 410G, 410J, 410K | Bushing, Swing Cylinder Rod | H180402 | $53.00 | View Info | |
| 12 |
See Details
|
(310D After Serial # 802200), (410D After Serial # 801200) | Bushing, Boom Cylinder Rod End | 0 | R97726 | $28.00 | View Info |
| 13 |
See Details
|
310C | Pin, Boom Cylinder to Boom | T125933 | $35.00 | View Info | |
| 15 |
See Details
|
310D, 410D (Both After Ser # 801200) | Bushing, Dipper Cylinder Tube End | R97724 | $24.00 | View Info | |
| 16 |
See Details
|
310C, 310D, 410C, 410C | Bushing, Dipper & Bucket Cylinder - Rod End | R82077 | $34.00 | View Info | |
| 18 |
See Details
|
310C, 410C, (310D Before Ser # 780903) | Pin, Dipper Cylinder Rod End | T125936 | $48.00 | View Info | |
| 19 |
See Details
|
310A, 310B, 410, 500C | Bushing, Boom to Dipper | 0 | T33933 | $26.00 | View Info |
| 20 |
See Details
|
210C, 300D, 310C, 310D, (410B After S/N 712717), 410C, 410D, (510B After S/N 712623),510C, 510D, (610B After S/N 713298), 610C | Pin, Boom to Dipper | T125922 | $124.00 | View Info | |
| 21 |
See Details
|
310C, 310D, 410C, 410D | Pin, Bucket Cylinder Tube End | 0 | T100188 | $85.00 | View Info |
| 23 |
See Details
|
210C, 310C, 310D, 315D, 410C, 510C, 610C | Bushing, Hydraulic Cylinder | R81850 | $20.00 | View Info | |
| 25 |
See Details
|
410B, 510B, 610B | Bushing, Dipper Arm to H-Link | 0 | U11121 | $26.00 | View Info |
| 6 / 25 |
See Details
|
300D, 310C, 310D, 410C, 410D, 510C, 610C | Bushing, Dipper Stick and H-Link | R72579 | $28.00 | View Info | |
| 26 |
See Details
|
310C, 310D, 410B, 410C, 410D, 510C, 510D, 610B, 610C | Bushing, Dipper Stick at Bucket | T34301 | $38.00 | View Info | |
See Details
|
310C, 310D, 410C, 410D | Bushing, Stabilizer / Dipper Cylinder Tube | R81968. | $24.00 | View Info | ||
See Details
|

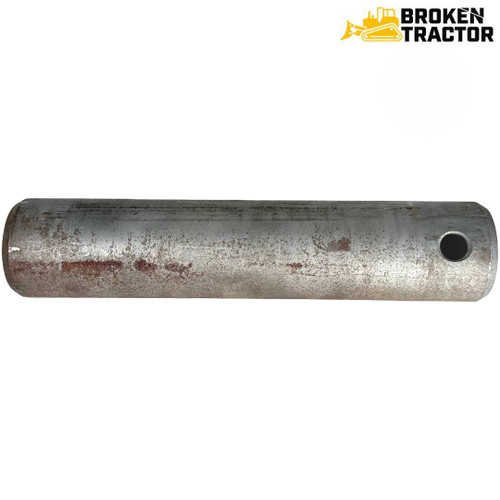

310C, 410C (Both Before Ser # 740538) | Pin, Crowd Cylinder Barrel End | T125935 | $40.00 | View Info | ||
See Details
|
(510C, 610C Both After Serial # 762815) / (410D Heavy Lift, 510D Both After Serial # 780970) | Pin, Dipper Cylinder Tube | T142485 | $105.00 | View Info | ||
See Details
|
310C, 310D, 315C, 315D, 410C, 410D, 510C, 510D, 610C | Pin, Bucket Cylinder to Links | T140905 | $95.00 | View Info | ||
See Details
|
210C, 300D, 310C, 310D, 315C, 410C, 410D, 510C, 510D | Bushing, Replacement Extendible Dipper Cylinder Rod | T146688 | $20.00 | View Info | ||
See Details
|
210C, 310C, 410C, 510C, 610C, (300D, 310D, 315D Before SN 787831), (410D & 510D Before SN 787384) | Bushing, Outer Extendible Dipper | T100763 | $45.00 | View Info | ||
See Details
|

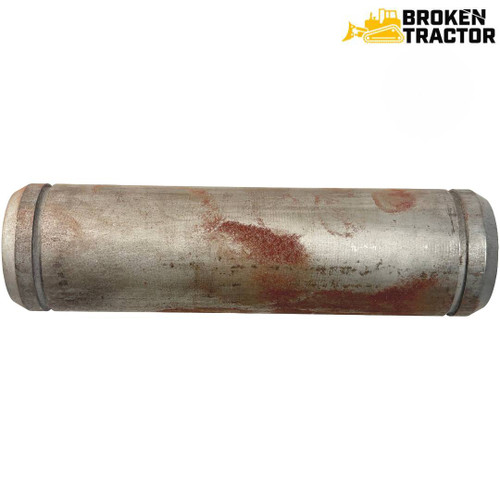

315C, 315CH, 315D | Pin, Side Shift Backhoe Strap Mounting | T125924 | $35.00 | View Info | ||
See Details
|
310C, 410C, 510C, 610C, (310D, 315B Both Before SN 787760), (410D Before SN 78738), (510B After SN 717404) | Dipper Cylinder Pin, Rod End | T126033 | $125.00 | View Info | ||
See Details
|
(210C After SN 742527), (310C After SN 731657), (310D Before SN 802199), (315D Before SN 814526), 410C | Pin, Boom Cylinder Tube End | T106389 | $70.00 | View Info | ||
See Details
|
410B, 410C, 410D | Pin, Backhoe Boom Cylinder Rod | T125941 | $65.00 | View Info | ||
See Details
|
(300D After SN 787834), (410D Before Serial # 780877), (9300G & 9310G Both After SN 780878) | Crowd Cylinder Pin, Rod End | T142121 | $50.00 | View Info | ||
See Details
|
300D, 310D, 315D, 410D, 510D, 710D (All After Serial # 787832) | Pin, Outer Extendible Dipper Stick | T147005 | $60.00 | View Info | ||
See Details
|
(310D & 315D Both After SN 803389), (210C After SN 742527) | Loader Lift Cylinder Pin, Rod End to Frame (Left | T151953 | $77.00 | View Info | ||
See Details
|
310A, 310B, 310C, 310D, 315D, 410, 410C, 510C, 610C, (410D & 510D Both After Serial # 787384) | Pin, Extendible Dipper Cylinder Rod End | B28568 | $30.00 | View Info | ||
See Details
|
410D Heavy Lift, 510B, 510C, 510D, 610B, 610C | Boom Cylinder Pin, Rod End | T125944 | $30.00 | View Info | ||
See Details
|
510C, 610C, (510D Before SN 780969) | Crowd Cylinder Pin, Tube End | T125945 | $75.00 | View Info | ||
See Details
|
(310D & 315D Both After SN 780849), (410D After SN 801200 | Crowd Cylinder Pin, Tube End | T142699 | $20.00 | View Info | ||
See Details
|
(310C Before SN 731656), 410C, (410D & 510D Both Before SN 801199) | Boom Lift Cylinder Pin, Tube End | T100317 | $20.00 | View Info | ||
See Details
|
410B, (310C & 410C Both After SN 740539), (410D Before SN 780969 | Crowd Cylinder Pin, Tube End | T125943 | $35.00 | View Info | ||
See Details
|
(410C After Serial # 740539), (410D Serial # 780970 to 801199) | Crowd Cylinder Pin, Tube End | T142484 | $20.00 | View Info | ||
See Details
|
410D Heavy Lift, 510C, 510D, 610C | Boom Cylinder Bushing, Rod Eye | R72385 | $40.00 | View Info | ||
See Details
|

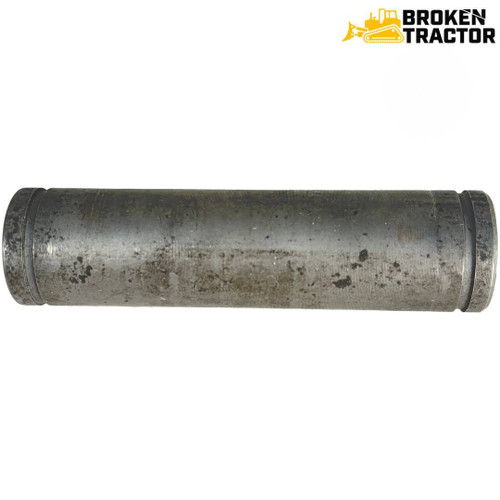

300D, 310D, 410D | Fastener Pin | T133618 | $30.00 | View Info | ||
See Details
|
410D, 510C, 510D, 610C | Pin, Extendible Dipper Stick | T106258 | $99.00 | View Info | ||
See Details
|
300D, 310D, 315D, 410D, 510D, (410C, 510C, 610C All After Serial # 732608) | Bushing, Loader Frame | T128309 | $45.00 | View Info | ||
See Details
|
310C, 410C, (410D Before Ser# 801199)Boom Cylinder, Tube End 410D Heavy Lift, 510C, 510D, 610C Dipper Cylinder, Tube End | Bushing, Cylinder Barrel End | R82075 | $50.00 | View Info | ||
See Details
|
410D, 510C, 510D, 610C | Bushing (1.5 M Extendible Dipper) | T106261 | $99.00 | View Info | ||
See Details
|
410B, 410C, 410D, 510C, 510D, 610C | Pin, Swing Cylinder Rod Retainer | T76230 | $30.00 | View Info | ||
See Details
|
(310C & 9300G Boom Cyl Rod), (300D After Serial # 787834 Dipper Cyl Rod) | Backhoe Bushing | R82076 | $50.00 | View Info | ||
See Details
|
(310C Before Serial # 761934), 510C, 610C, (510D Before Serial # 781178) | Backhoe Pin (See Detailed Description) | T125946 | $99.00 | View Info | ||
See Details
|

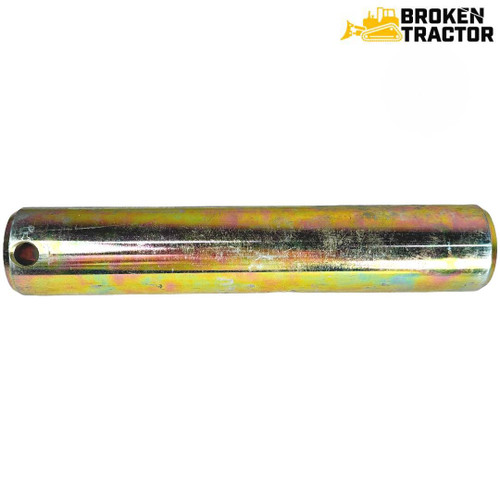

410D Heavy Lift, 510D | Dipper Cylinder Pin (Rod End) | T147002 | $25.00 | View Info | ||
See Details
|
410D Heavy Lift, 510C, 510D, 610C | Bushing, Dipper (Crowd) Cylinder Rod | R83221 | $50.00 | View Info | ||
See Details
|
410C, 410D | Bushing, Boom Cylinder Rod | R83211 | $50.00 | View Info | ||
See Details
|
310C, 310D, 410C, 410D, 510C, 510D | Bushing, Extendable Dipper Cylinder Tube | T146689 | $30.00 | View Info | ||
See Details
|
410D Heavy Lift and 510D (Both After Serial # 797022) | Bushing, Boom Cylinder Tube End | H150344 | $38.00 | View Info | ||
See Details
|

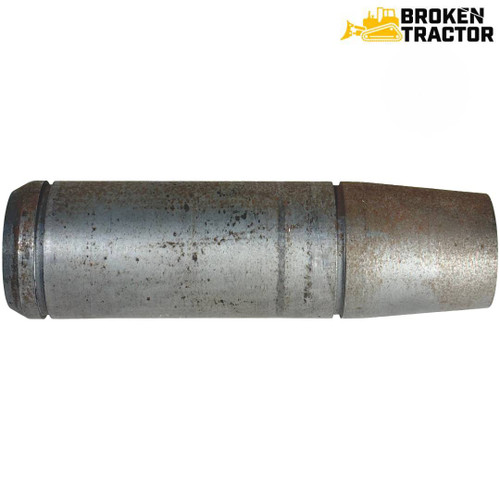

315D Before Serial # 814526 | Tie Bar Pin, Right Hand | T139951 | $25.00 | View Info | ||
See Details
|
310D*, 315D*, 410D* (*After Serial # 787761) | Pin, Crowd Cylinder Rod End (10.354" Long) | T143647 | $70.00 | View Info | ||
See Details
|
310C, 410C, (310D, 315D, & 410D All Before Serial # 787384) | Inner Dipper Bushing (4 ft Dipper) | T100762 | $55.00 | View Info | ||
See Details
|
Universal – Fits dozers, excavators, loaders, and backhoes | Bushing Driver Removal Tool | BushingDriver | $44.00 | View Info |
This is the navigation bar. This shows the category you're currently viewing and allows you to explore back to previous categories.
Boom and Dipper Pins and Bushings
Each number on the image is a "Ref #" that can be matched on the table below.
John Deere Boom & Dipper Pins, Bushings and Related Parts
Explore our wide range of John Deere Boom and Dipper Pins, Bushings, and more. We offer parts for multiple John Deere models to keep your equipment running smoothly.
John Deere Boom and Dipper Pins, Bushings, and Related Parts form an essential category for those who rely on the efficiency and durability of John Deere equipment. These components are crucial in maintaining the functionality of backhoes and ensuring optimal performance during demanding tasks. Crafted specifically for various John Deere models, this selection encompasses a comprehensive range of parts, designed to meet the highest standards of quality and reliability.
Among the products available, you'll find crucial items such as the John Deere Backhoe Lower Swing Tower at Boom Bushing (T33689) and the Backhoe Boom to Dipper Bushing (T33933). These items provide the necessary support and integrity for critical moving parts. Additionally, the AH147722 John Deere Backhoe Bucket Cylinder and other cylinder-related components are vital for smooth hydraulic operation, allowing your machinery to function seamlessly.
Whether you need pins, bushings, or cylinders, each product has been engineered to ensure longevity and performance. The John Deere Backhoe Boom to Dipper Pin (T125922) and the Swing Cylinder Tube Bushing are examples of precision-engineered components that enhance the overall efficiency of your backhoe while minimizing downtime.
Maintaining your John Deere equipment with high-quality parts not only improves its performance but also prolongs its lifespan. As you explore this category, you'll discover a meticulously curated selection of essential parts, enabling you to keep your machines up and running at their best. Trust in the reliability of our John Deere Boom and Dipper components to meet your operational needs and ensure that your equipment performs efficiently in all circumstances.
