Case Backhoe Brake Parts and Rear Axle Shaft

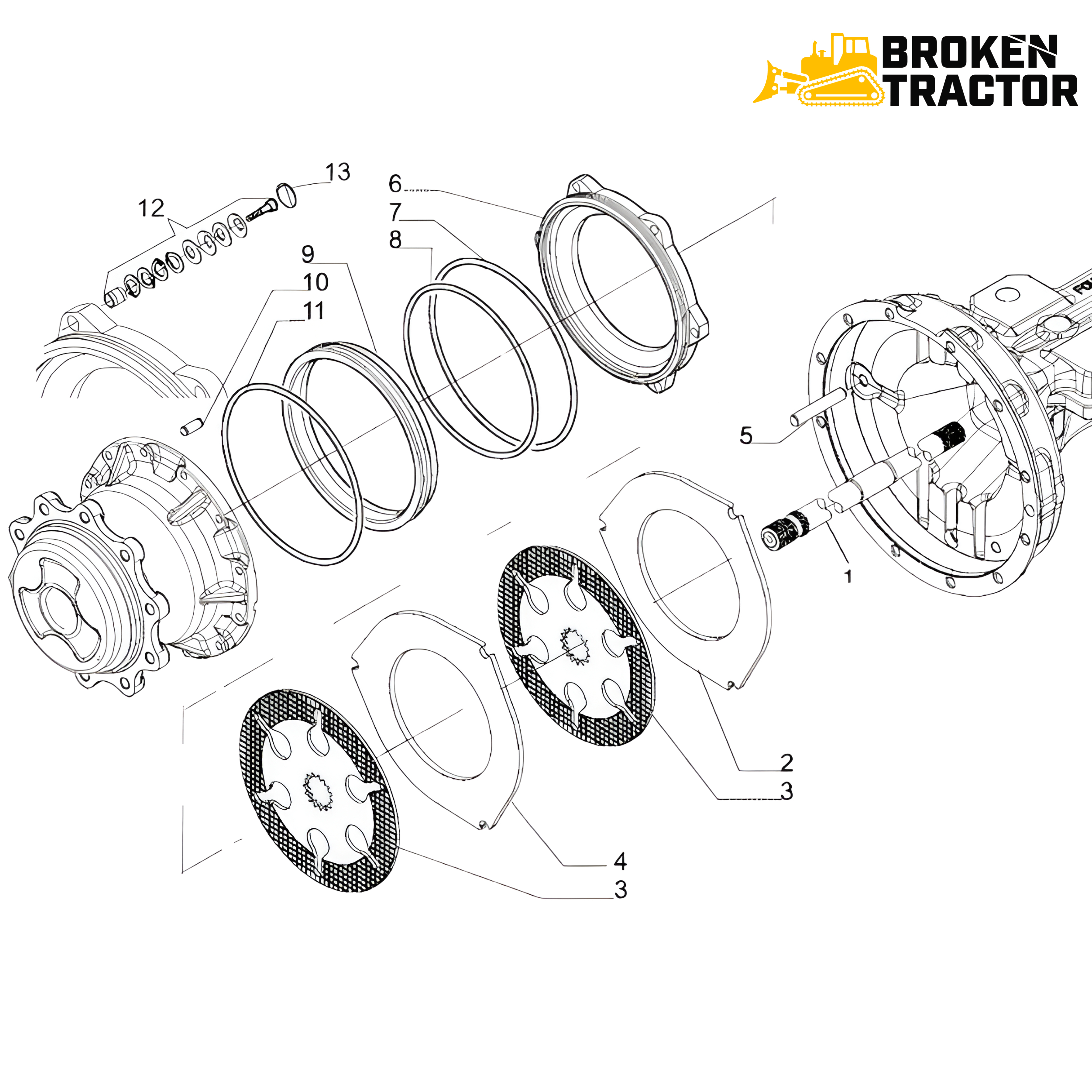

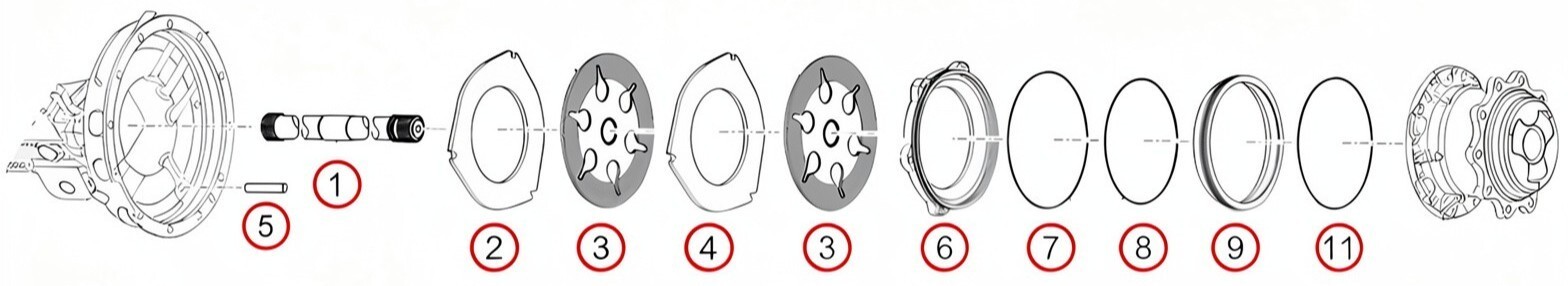

Each number on the image is a "Ref #" that can be matched on the table below.
| REF # | Image | Fits Model | Description | Part # | Price | Product Details |
| 1 |
See Details
|
580SM+, 580SN WT, 590SN | Rear Axle Shaft | 87708966 | View Info | |
| 1 |
See Details
|
586H, 588H, 570NXT, 580M-3, 580 Super M-3, 580N, 580N EP, 580SN, U80C | Rear Axle Shaft Kit, Left Hand | 87708432 | View Info | |
| 1 |
See Details
|
586H, 588H, 570NXT, 580M Series 3, 580 Super M Series 3, 580N, 580N EP, 580SN, U80C | Right Hand Rear Axle Shaft | 87708431 |
$850.00
|
View Info |
| 2 |
See Details
|
570N EP, 570NXT, 580M*, 580SM*, 590SM*, 580N, 580SN, 590SN, 586H, 588H | Brake Disc, Inner | 87708433 |
$64.00
|
View Info |
| 3 |
See Details
|
570N EP, 570NXT, 580M*, 580SM*, 590SM*, 580N, 580SN, 590SN, 586H, 588H | Brake Friction Disc | 87708434 |
$104.00
|
View Info |
| 4 |
See Details
|
570N EP, 570NXT, 580M*, 580SM*, 590SM*, 580N, 580SN, 590SN, 586H, 588H | Brake Disc, Outer | 87708435 |
$98.00
|
View Info |
| 5 |
See Details
|
570N EP, 570NXT, 580M*, 580SM*, 590SM*, 580N, 580SN, 590SN, 586H, 588H | Brake Guide Pin | 139294A1 | View Info | |
| 6 |
See Details
|
(580M*, 580SM*, 590SM* - *Series 3 Only) / 580N, 580SN, 590SN / 570N EP, 570NXT / 586H, 588H | Brake Cylinder Piston | 87708436 |
$483.00
|
View Info |
| 7 |
See Details
|
(580M*, 580SM*, 590SM* - *Series 3 Only) / 580N, 580SN, 590SN / 570N EP, 570NXT / 586H, 588H | Brake O-Ring | 87708438 |
$38.00
|
View Info |
| 8 |
See Details
|
(580M*, 580SM*, 590SM* - *Series 3 Only) / 580N, 580SN, 590SN / 570N EP, 570NXT / 586H, 588H | O-Ring, Brake Piston - External | 371144A1 |
$28.00
|
View Info |
| 9 |
See Details
|
(580M*, 580SM*, 590SM* - *Series 3 Only) / 580N, 580SN, 590SN / 570N EP, 570NXT / 586H, 588H | Outer Brake Piston | 87708440 |
$65.00
|
View Info |
| 10 |
See Details
|
580M Series 3, 580 Super M Series 3, 580 Super M+ Series 3, 590 Super M Series 3, 580N, 580 Super N, 580 Super N WT, 590 Super N, 570N EP, 570NXT, 586H, 588H, U80C | Rear Axle Dowel Pin | D142890 | View Info | |
| 11 |
See Details
|
(580M*, 580SM*, 590SM* - *Series 3 Only) / 580N, 580SN, 590SN / 570N EP, 570NXT / 586H, 588H | O-Ring, Brake Piston Carrier | 371145A1 |
$19.00
|
View Info |
| 12 |
See Details
|

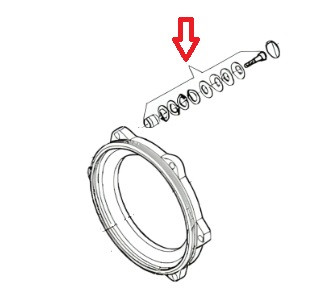

580M Series 3, 580 Super M Series 3, 580 Super M+ Series 3, 590 Super M Series 3, 580N, 580 Super N, 580 Super N WT, 590 Super N, 570N EP, 570NXT, 586H, 588H, U80C | Drive Axle Brake Adjuster Kit | 87708441 |
$58.00
|
View Info |
| 2,3,4,7,8 & 11 |
See Details
|
(580M*, 580SM*, 590SM* - *Series 3 Only) / 580N, 580SN, 590SN / 570N EP, 570NXT / 586H, 588H | Brake Replacement Kit | CS-580N-BK |
$895.00
|
View Info |
| 13 |
See Details
|
580M Series 3, 580 Super M Series 3, 580 Super M+ Series 3, 590 Super M Series 3, 580N, 580 Super N, 580 Super N WT, 590 Super N, 570N EP, 570NXT, 586H, 588H, U80C | Brake Adjuster Retaining Clip | 87708442 | View Info |
