Case 580L Pin Kits

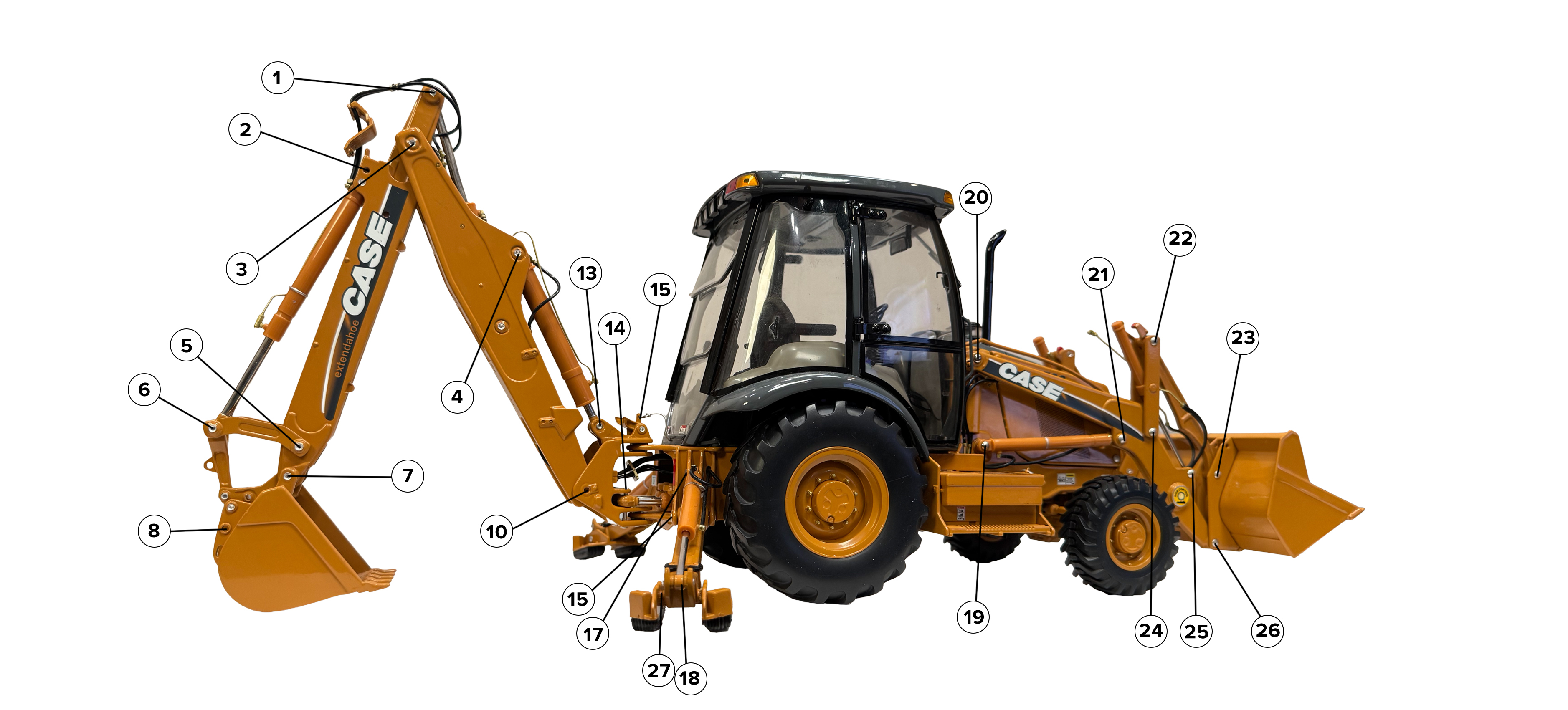

Each number on the image is a "Ref #" that can be matched on the table below.

Fits Models At A Glance: Case Backhoe: 580L Key Notes: Application: Connects rod end of dipper cylinder to dipper stick Includes: (1) Dipper Cylinder to Dipper Stick Pin (6) Washers (2) Snap Rings (1) Grease Zerk Dimensions: Pin...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Key Notes: Application: Mounts backhoe bucket to quick coupler Includes: (1) Coupler to Bucket Pin (4) Bushings (varied sizes) (2)...

Fits Models At A Glance: Case Backhoe: 580 Super K, 580L, 580 Super L Key Notes: Application: Connects the boom to the dipper stick on the backhoe arm Includes: Kit Includes: (1) Boom to Dipper Pin (4) Bushings (8) Shims (1) Flange...

Fits Models At A Glance: Case 580 Series: 580L Key Notes: Kit weight: 20 lbs (9.07 kg) Application: Pin mount from boom cylinder to boom arm Material: Steel pin with reinforced bushings and snap rings Location: Mid-boom cylinder pivot Notes:...

Fits Models At A Glance: Case Backhoe: 580 Super K, 580L, 580 Super L Key Notes: Application: Connects dipper link to dipper stick on backhoe arm Includes: (1) Dipper Link to Dipper Pin (6) Bushings (varied types) (4) Washers (2)...

Fits Models At A Glance: Case Backhoe: 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Key Notes: Application: Connects Y link to dipper link and dipper cylinder Includes: (1) Y Link to Dipper Link Pin (8) Bushings (multiple...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Key Notes: Application: Connects 12" wide bucket to standard dipper stick on backhoe arm Includes: (1) Bucket to Dipper Stick Pin (7)...

Fits Models At A Glance: Case Backhoe: 580L, 580 Super L Fits Series I Machines (Serial # starting with JJG) Fits both Regular Dipper and Extendable Dipper Key Notes: Application: Mounts boom to swing tower  Includes: (1) Pin (1)...

Fits Models At A Glance: Case Backhoe: 580 Super K, 580L, 580 Super L - Series I, 590 Turbo Fits both Regular and Extendable Dipper configurations Key Notes: Application: Connects boom to swing tower Includes: (1) Pivot Pin (1) Flange...

Fits Models At A Glance: Case Backhoe Loader: 580L, 580 Super L Key Notes: Weight: 20 lbs (9.07 kg) Application: Connects boom to swing tower Location: Boom pivot assembly Material: Heavy-duty steel and precision bushings Includes all...

Fits Models At A Glance: Case 580 Series: 580L, 580M Key Notes: Kit weight: 20 lbs (9.07 kg) Application: Boom cylinder mount to swing tower Material: Hardened steel pin, wear-resistant bushings Location: Upper linkage – cylinder to tower...

Fits Models At A Glance: Case 580 Series: 580L, 580 Super L Key Notes: Kit weight: 20 lbs (9.07 kg) Application: Rear stabilizer arm rebuild – one side Material: High-grade steel and wear-resistant bushings Location: Rear stabilizer...

Fits Models At A Glance: Case Backhoe: Case 580L, Super L, 590L, 590SL, 590SM Key Notes: Application: Connects rod end of swing cylinder to swing tower Includes: (1) Swing Cylinder Rod Pin (3) Bushings (standard + swivel type) (2)...

Fits Models At A Glance: Case Backhoe: 580 Super K, 580L, 580 Super L Key Notes: Application: Mounts lower swing tower bracket to backhoe chassis Includes: (1) Swing Tower to Chassis Pin (4) Bushings (varied sizes) (2) Snap Rings...

Fits Models At A Glance: Case Backhoe: 580L, 580 Super L, 580M, 580 Super M Key Notes: Application: Mounts stabilizer leg to the main chassis Includes: (1) Stabilizer Leg to Chassis Pin (4) Bushings (2 upper, 2 lower) (2) Snap Rings Why...

Fits Models At A Glance: Case Backhoe: 580L, 580 Super L, 580M, 580 Super M Key Notes: Weight: 5 lbs. (2.27 kg) Application: Connects stabilizer cylinder rod end to stabilizer leg Includes: (1) Cylinder to Leg Pin (2) Snap Rings (2)...

Fits Models At A Glance: Case Backhoe Series 1, 2: 580L, 580 Super L, 590 Super L  Case Backhoes Series 1, 2, 3: 580M, 580 Super M, 590 Super M  Key Notes: Application: Connects loader lift cylinder tube end to chassis...

Fits Models At A Glance: Case Backhoes: 580L, 580 Super L, 590 Turbo, 590 Super L, 590 Super M Key Notes: Application: Connects loader frame to machine chassis for pivot support Includes: (1) Loader Frame to Chassis Pin (4) Bushings (2)...

Fits Models At A Glance: Case Backhoe: 580L, 580 Super L, 590 Super L, 590 Super M Key Notes: Application: Connects base end of loader lift cylinder to loader frame Includes: (1) 113629A1 Loader Lift Cylinder to Frame Pin (2) Snap Rings (1)...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 590 Series Key Notes: Application: Connects bucket cylinder link to loader drag link Includes: (1) Bushing (1) Bolt (1) Lock Nut (2) Washers Why Choose...

Fits Models At A Glance: Case Backhoe: 580L, 580 Super L, 580M, 580 Super M Key Notes: Application: Connects upper loader bucket drag link to bucket Includes: (1) Drag Link to Bucket Pin (2) Bushings (2) Snap Rings (1) Grease Zerk Why...

Fits Models At A Glance: Case Backhoe: 580L, 580 Super L, 590L, 590 Super L, 590 Super M Key Notes: Weight: 8 lbs (3.63 kg) Application: Connects loader frame to bucket tilt cylinder for pivotal movement Function: Ensures smooth bucket...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 590 Series Key Notes: Weight: 6 lbs. (2.72 kg) Application: Connects stabilizer leg to street-style stabilizer pad Includes: (1) Pin from street pad to stabilizer...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Weight: 7 lbs. (3.18 kg) Application: Connects stabilizer leg to foot with cleat-style (dirt) pad Includes: (1) Pin from cleat-style...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Application: Connects stabilizer leg to flip-over style outriggers (street or rubber pad type) Function: Secures the flip pad assembly to...

Fits Models At A Glance: Case Backhoe: 580L Key Notes: Application: Connects rod end of dipper cylinder to boom Includes: (1) Dipper Cylinder to Boom Pin (4) Washers (2) Snap Rings (1) Grease Zerk Why Choose Broken Tractor? ✅...

Fits Models At A Glance: Case Backhoe: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Series Key Notes: Weight: 3 lbs. (1.36 kg) Application: Bushings for connection between loader bucket tilt cylinder rod and loader...

Fits Models At A Glance: Case Backhoe: 580K, 580L, Super K, Super L, 590 Turbo, 590L, 590SL, 590SM Key Notes: Weight: 7 lbs. (3.18 kg) Application: Mounts coupler bracket to Y-link on backhoe boom Includes: (1) Coupler to Y-Link Pin (2)...

Fits Models At A Glance: Case Backhoe: 580L, 580 Super L Key Notes: Application: Rebuilds pivot point between swing cylinder and backhoe chassis Includes: (4) Bushings (2) Grease Zerks Why Choose Broken Tractor? ✅ Precision Fit✅ Built...

Fits Models At A Glance: Case 580 Series: 580L, 580 Super L, 580M, 580 Super M Key Notes: Weight: 4 lbs Application: Connects stabilizer (outrigger leg) to backhoe chassis Material: Heavy-duty steel pin with snap ring retention Location: Rear...

Fits Models At A Glance: • Universal Fit: Designed for multiple equipment types, including dozers, excavators, backhoes, and loaders. Key Notes: • Material: Solid steel construction for maximum impact resistance.• Function: Drives in or...

REF # Image Fits Model Description Part # Price Product Details
1 Case 580L Pin Kit, Dipper Cylinder Rod to Dipper Stick See Details 580L Pin Kit, Dipper Cylinder Rod to Dipper Stick 129041A1K-3 $72.00 View Info
7 Case 580K, 580 Super K, 580L, 580 Super L Pin Kit, Coupler To Backhoe Bucket See Details 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Pin Kit, Bucket to Standard Dipper Stick D37614K-1 $150.00 View Info
3 Case 580 Super K–Super L Boom to Dipper Pin Kit See Details 580 Super K, 580L, 580 Super L Pin Kit, Boom to Dipper D132494K-1 $234.00 View Info
4 Case 580L Pin Kit, Boom Cylinder to Boom See Details 580L Pin Kit, Boom Cylinder to Boom 129040A1K-3 $190.00 View Info
5 Case 580 Super K–Super L Dipper Link to Dipper Pin Kit See Details 580 Super K, 580L, 580 Super L Pin Kit, Dipper Link to Dipper D141142K-3 $280.00 View Info
6 Case 580 Super K, 580L, 580 Super L Pin Kit, Y Link to Dipper Link Dipper cylinder See Details 580 Super K, 580L, 580 Super L, 590 Turbo, 590 Super L, 590 Super M Pin Kit, Y-Link to Dipper Link & Cylinder D141142K-1 $334.00 View Info
7 Case 580K, 580 Super K, 580L, 580 Super L Pin Kit, Bucket to Dipper See Details 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM Pin Kit, 12" Bucket to Standard Dipper Stick D150619K-1 $174.00 View Info
10 Case 580L, Super L Backhoe Swing Tower to Boom Kit See Details 580L, 580 Super L (Series I) Pin Kit, Backhoe Swing Tower to Boom D137218K-3 $164.00 View Info
10 Case 580 Super K–Super L Swing Tower to Boom Pin Kit See Details 580 Super K, 580L, 580 Super L- I, 590 Turbo Pin Kit, Backhoe Swing Tower and Boom D137218K $238.00 View Info
10 Case 580 Super L Pin Kit, Boom to Swing Tower See Details 580L, 580 Super L Pin Kit, Boom to Swing Tower 121779A1K $305.00 View Info
13 Case 580L, 580M Pin Kit, Boom Cylinder to Swing Tower See Details 580L, 580M Pin Kit, Boom Cylinder to Swing Tower 142842A1K $148.00 View Info
14 Swing Tower to Chassis Top See Details 580L, 580 Super L Pin Kit, Swing Cylinder Rod to Swing Tower 132890A1K $190.00 View Info
14 Case 580L, Super L Swing Cylinder Rod to Swing Tower Pin Kit See Details Case 580L, Super L, 590L, 590SL, 590SM Pin Kit, Swing Cylinder Rod to Swing Tower 135247A1K $220.00 View Info
16 Case 580L, 580 Super K–Super L Swing Tower to Chassis Bottom Pin Kit See Details 580 Super K, 580L, 580 Super L Pin Kit, Swing Tower to Chassis Bottom D151065K-1 $184.00 View Info
17 Case 580L–Super M Stabilizer Leg to Chassis Pin Kit See Details 580L, 580 Super L, 580M, 580 Super M Pin Kit, Stabilizer Leg to Chassis 121665A1K $154.00 View Info
18 Case Backhoe Stabilizer Cylinder Pin Kit See Details 580L, 580 Super L, 580M, 580 Super M Pin Kit, Stabilizer Cylinder to Leg D26002K $42.00 View Info
19 119129a1-Case 580L, 580 Super L, 590L, 590SL, 590SM Loader Lift Cylinder Tube to Chassis Pin Kit See Details 580L, 580 Super L, 590L, 590SL, 590SM Pin Kit, Loader Lift Cylinder to Chassis 119129A1K $144.00 View Info
20 111522A1-Case 580L, Super L, 590 Super M Loader Frame to Chassis Pin Kit See Details 580L, 580 Super L, 590 Turbo, 590 Super L, 590 Super M Pin Kit, Loader Frame to Chassis 111522A1K $288.00 View Info
21 113629a1-Case 580L, Super L Loader Lift Cylinder to Frame Pin Kit See Details 580L, 580 Super L, 590 Super L, 590 Super M Pin Kit, Loader Lift Cylinder to Loader Frame 113629A1K $66.00 View Info
22 Case 580K, 580 Super K, 580L, 580 Super L Pin Kit, Bucket Cylinder Link to Drag Link See Details 580K, 580 Super K, 580L, 580 Super L, 590 Series Kit, Bucket Cylinder Link to Drag Link D132076K-2 $84.00 View Info
23 Case 580L–Super M Loader Bucket Drag Link to Bucket Pin Kit See Details 580L, 580 Super L, 580M, 580 Super M Pin Kit, Loader Bucket Drag Link to Bucket 118901A1K $94.00 View Info
26 Replacement pin set for Case 580 Super L loader bucket See Details 580L, 580 Super L, 590 Super L, 590 Super M Pin Kit, Loader Frame Bucket Tilt Cylinder 116339A1K $42.00 View Info
27 Case Backhoe Street Pad Pin Kit See Details 580K, 580 Super K, 580L, 580 Super L, 590 Series Pin Kit, Foot to Leg Street Pad D39256K $60.00 View Info
27 Case Backhoe Stabilizer Foot Pin Kit See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin Kit, Stabilizer Leg to Foot (Dirt Pad) D28648K $30.00 View Info
27 Stabilizer leg to flip pad pin kit for Case 580K See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin Kit, Stabilizer Leg to Foot (Flip Over Pad) D149033K $138.00 View Info
xx Case 580L Backhoe Dipper Cylinder to Boom Pin Kit See Details 580L Pin Kit, Dipper Cylinder Tube to Boom 129040A1K-2 $98.00 View Info
xx Case Backhoe Bucket Cylinder Bushing Kit See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Series Bushing Kit, Bucket Cylinder to Bucket Cylinder Link D151034K $94.00 View Info
xx Case Backhoe Y Link Coupler Pin Kit See Details 580K, 580L, Super K, Super L, 590 Turbo, 590L, 590SL, 590SM Pin Kit, Coupler to Y Link D146288K-2 $168.00 View Info
xx Case 580L, Super L Swing Cylinder to Chassis Bushing Kit See Details 580L, 580 Super L Bushing Kit, Swing Cylinder to Chassis 124568A2K-1 $148.00 View Info
15 Case 580L stabilizer cylinder to chassis pin kit See Details 580L, 580 Super L, 580M, 580 Super M Pin Kit, Stabilizer Leg to Chassis D38907K $66.00 View Info
Bushing driver removal tool for heavy equipment See Details Universal – Fits dozers, excavators, loaders, and backhoes Bushing Driver Removal Tool BushingDriver $44.00 View Info



Fits Models At A Glance:

  • Case Backhoe: 580L

Key Notes:

  • Application: Pin and bushing replacement kits for stabilizers, loader arms, boom, dipper, and bucket linkages on Case 580L backhoes

  • Function: Rebuilds worn pivot points, restores tight loader and backhoe operation, and extends machine service life

  • Components Available: Heavy-duty pin and bushing kits including stabilizer, boom, dipper, bucket, and loader arm pivots

  • Material: Machined steel pins and hardened bushings designed for durability

  • Location: Loader arms, stabilizers, dipper stick, boom, and bucket assemblies

  • Part Numbers: (Insert OEM cross-references from the sub-products in this category)

Why Choose Broken Tractor:

  • ✅ Complete Pin & Bushing Kits for Case 580L Backhoes

  • ✅ Heavy-Duty Steel Components Built for Rugged Work

  • ✅ Fast Shipping and Knowledgeable U.S.-Based Support
