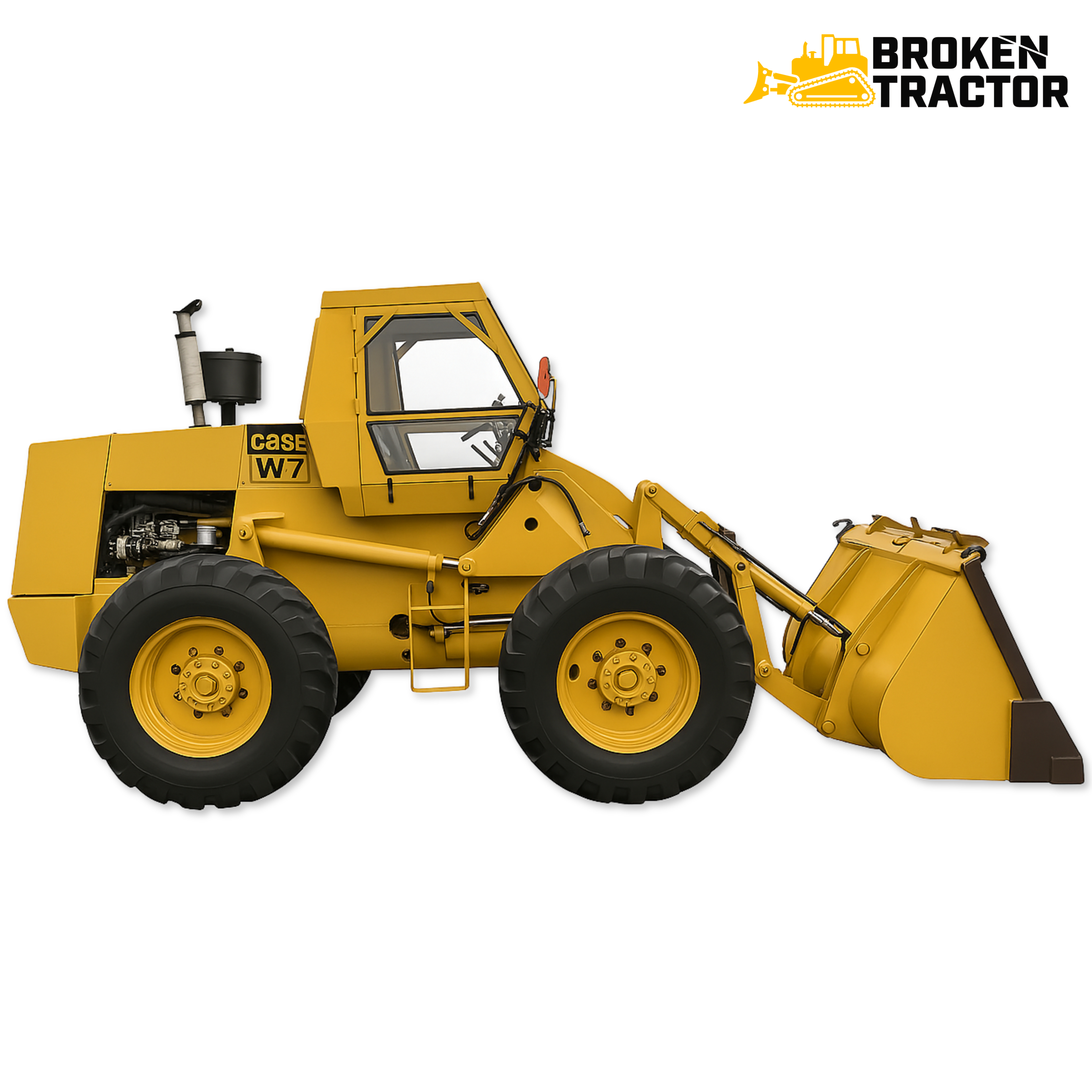

Case W7 Wheel Loader: Mid-Range Vintage W-Series
The Case W7 stepped up the W-series ladder from the W5, adding chassis size, breakout force, and operating capacity. An articulated mid-range wheel loader from the era when Case W-machines defined the working compact-to-mid wheel loader segment.
Where the W7 fits in the Case wheel loader line
The W7 sits between the W5 and the W9 in the vintage W-series sequence. Mid-range chassis, mid-range bucket capacity, Case diesel power, and the articulated frame that made the W-series so capable on tight job sites and farm yards. Direct mechanical hydraulics, mechanical drivetrain, full operator-serviceable architecture - no electronics, no aftertreatment, no tier-based emissions equipment.
Case W7 Wheel Loader - Quick Specs
- Class
- Vintage Mid-Range Wheel Loader
- Frame
- Articulated
- Drivetrain
- Mechanical / Power Shift
- Engine
- Case Diesel
- Front Tool
- Hydraulic Loader
- Serial Plate Location
- Right Frame, Near Articulation Pivot / Rear Axle
- Smaller Sibling
- Case W5
- Larger Sibling
- Case W9
Engine, hydraulics, and drivetrain
The W7 runs a Case inline diesel through a mechanical or power-shift transmission into articulated front and rear drive axles. Loader hydraulics are gear-pump driven with mechanical control valves and direct-acting cylinders. Articulation steering uses hydraulic cylinders between the front and rear chassis halves. The frame, cylinder geometry, and hydraulic capacity step up appreciably from the W5 - heavier breakout, faster cycle times, larger bucket payload.
Common service items on the W7
- Engine internals: Case diesel pistons, rings, sleeves, bearings, head gaskets, full overhaul kits.
- Fuel system: Injection pump, injectors, lift pump, primary and secondary filters.
- Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
- Loader hydraulics: Cylinder seal kits, hydraulic pump rebuilds, control valves, hoses.
- Articulation steering: Steering cylinder seal kits, articulation pivot pins and bushings, kingpin assemblies.
- Loader components: Bucket teeth, cutting edges, bushings, pivot pins, bucket lock systems.
- Drivetrain: Clutches, transmission components, axle seals, planetary final drives.
- Brakes: Brake bands or shoes, control linkage, brake actuators.
- Electrical: Starter, alternator, wiring harness, gauges, switches.
- Operator station: Seat, gauges, control levers, ROPS canopy parts.
Parts and cross-fit components for the Case W7
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Pistons, rings, sleeves, bearings, gaskets | Browse Engine Parts |
| Fuel System | Injection pumps, injectors, lift pumps, filters | Browse Fuel System |
| Cooling | Radiators, water pumps, thermostats, hoses | Browse Cooling Parts |
| Loader Hydraulics | Cylinders, seal kits, pumps, valves, hoses | Browse Hydraulics |
| Articulation Steering | Steering cylinders, pivot pins, bushings | Browse Articulation Parts |
| Loader | Bucket teeth, cutting edges, pins, bushings | Browse Loader Components |
| Drivetrain | Clutch, transmission, axles, final drives | Browse Drivetrain |
| Brakes | Brake shoes, bands, linkage, actuators | Browse Brakes |
| Electrical | Starters, alternators, harnesses, switches | Browse Electrical |
| Operator Station | Seats, gauges, controls, ROPS parts | Browse Operator Station |
Need a part for your Case W7 Wheel Loader?
Call our parts team with your serial number - we’ll match the right component to your machine.
Request a PartWhat to verify before ordering
- Serial number. Confirm the serial on the right frame near the articulation pivot before ordering year-specific parts.
- Engine serial. Case diesel internal parts must match the engine serial number.
- Transmission type. Mechanical and power-shift drivetrains used different components.
- Loader configuration. Bucket size and quick-coupler configuration changed cylinder and pin specs.
- Articulation revisions. Pin and bushing sizing was revised during production - measure before ordering.
- Cab vs. ROPS canopy. Operator station equipment varied between configurations.
Why the W7 remains a working machine
The W7 is a Case mid-range vintage wheel loader that owners still keep working on small construction sites, farms, and rural utility yards. Mechanical injection, no electronics, no aftertreatment - the W7 is the kind of machine that responds to a wrench, a manual, and a parts catalog. With proper attention to hydraulics, articulation pivots, and the diesel powertrain, a W7 holds up to decades of operation.
Maintenance priorities on a W7: clean fuel through good filters, hydraulic seal replacement on aging cylinders, articulation pivot service before play turns into damage, brake service when stopping power declines, and engine overhaul when wear demands. Broken Tractor maintains parts coverage across the W-series and the broader Case wheel loader family, available at Broken Tractor.
