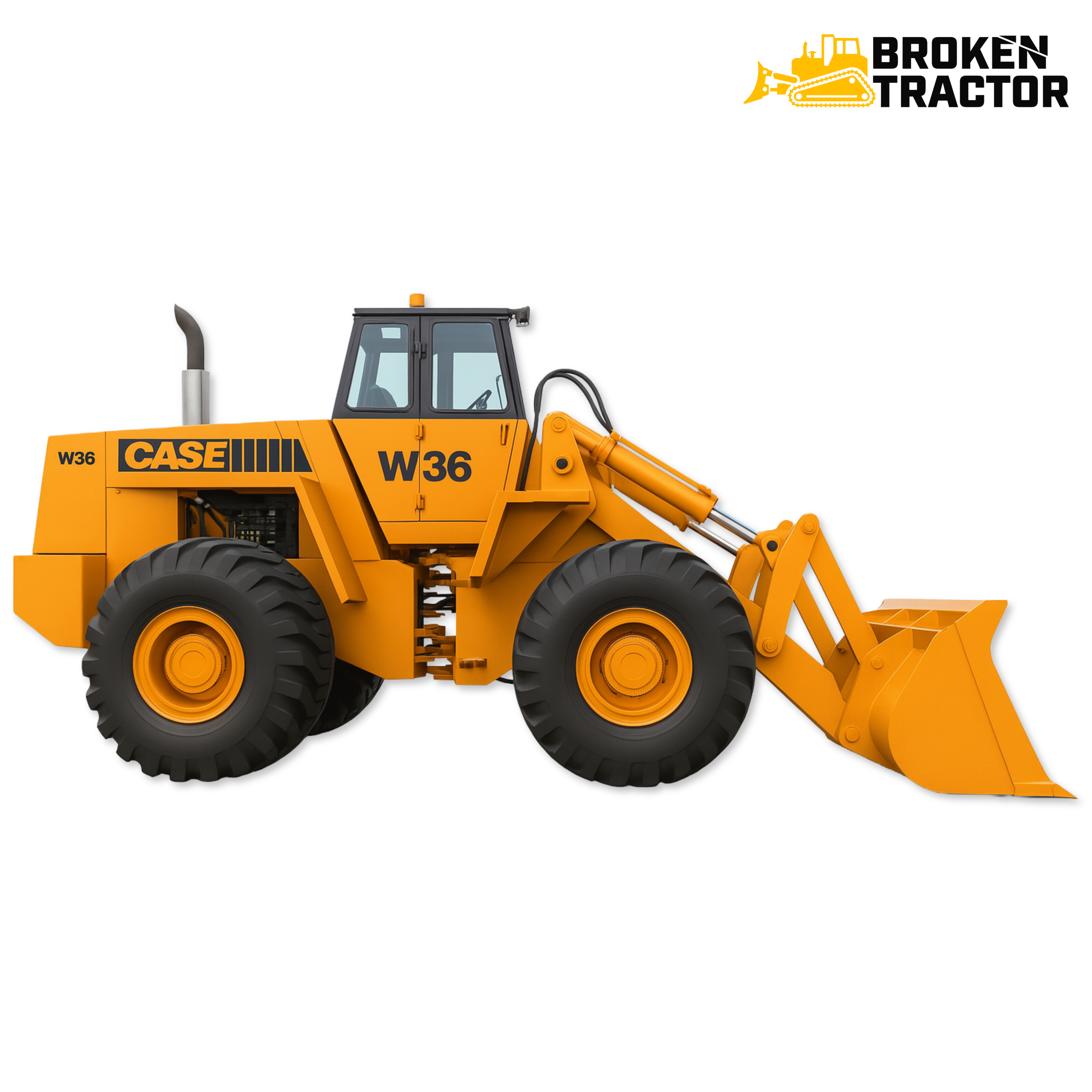

Case W36 Wheel Loader: Largest of the Vintage Case W-Series

The Case W36 is the largest of the original Case W-series wheel loaders - a heavy production-class articulated machine with serious bucket capacity, a stout Case diesel (later W36 production moved to a six-cylinder Cummins), and the kind of drivetrain you keep working on for decades.

BT

Broken Tractor Editorial Team• Updated May 2026• 8 min read

Where the W36 fits in the Case wheel loader line

The W36 sits at the top of the vintage Case W-series - above the W30 in chassis size and the largest of the original production-class W-machines, ahead of the modern G-series large production loaders in lineage. Articulated frame, Case diesel power, mechanical injection, gear-pump hydraulics. Production W36 units after serial number 17754000 moved to a six-cylinder Cummins engine - a meaningful change for parts identification.

The SN 17754000 engine break

Pre-break units (before SN 17754000) use the Case-built diesel with its own exhaust manifold castings, motor mounts, and fuel system. Post-break units use a six-cylinder Cummins with a different exhaust manifold, different fuel-system architecture, and its own service literature. Engine internals, manifolds, mounts, and several cooling-system components are NOT interchangeable across the break.

Engine, hydraulics, and drivetrain

The W36 runs through a power-shift transmission and heavy articulated drive axles. Loader hydraulics use a high-flow gear pump, mechanical control valves, and direct-acting cylinders sized for big-bucket production loadout. Articulation steering uses heavy hydraulic cylinders between the chassis halves.

The biggest service-identification factor is the engine break: pre-17754000 units use the Case-built diesel; post-17754000 units use a six-cylinder Cummins, which carries its own service literature and a distinct exhaust manifold. Brakes are wet-disc service brakes with an air-over-hydraulic master cylinder - parts shared across portions of the Case wheel loader and backhoe lines.

Common service items on the W36

• Engine internals: Case diesel or Cummins six-cylinder pistons, rings, sleeves, bearings, gaskets - exhaust manifold differs by SN break.
• Fuel system: Injection pump, injectors, lift pump, primary and secondary filters.
• Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
• AC / cab climate: Expansion valve, blower resistor, cab fresh-air filter on cab-equipped units.
• Loader hydraulics: Cylinder seal kits, hydraulic pump rebuilds, control valves, hoses.
• Articulation steering: Steering cylinder seal kits, articulation pivot pins and bushings.
• Loader components: Bucket teeth, cutting edges, bushings, pivot pins.
• Drivetrain: Power-shift clutch packs, transmission components, axle seals, planetary final drives, shift lever assemblies.
• Brakes: Wet-disc service brakes, master cylinder with air chamber, brake shoes, pedal valves.
• Electrical: Starter, alternator, wiring harness, gauges, switches.
• Operator station: Seat, gauges, control levers, ROPS canopy parts.

Parts and cross-fit components for the Case W36

What to verify before ordering

• Engine break SN 17754000. Pre-break = Case-built diesel; post-break = six-cylinder Cummins. Exhaust manifolds, mounts, and internal engine parts are NOT interchangeable across the break.
• Serial number. Confirm the serial on the right frame near the front articulation pivot, beneath the ROPS cab before ordering year-specific parts.
• Engine serial. Engine internal parts must match the engine serial number.
• Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension - measure before ordering.
• Cab vs. ROPS canopy. Operator station equipment varied between configurations.

Why the W36 still earns a paycheck

The W36 is the largest of Case’s original W-series wheel loaders and a fixture on quarry pads and large-yard work where bucket capacity outranks cycle speed. Mechanical injection on the pre-Cummins units, no aftertreatment, no DPF, no SCR - the W36 is the kind of machine you keep running because the architecture rewards a wrench-and-manual approach.

Maintenance priorities on a W36: clean fuel and quality filtration, hydraulic seal replacement before cylinders weep, articulation pivot service when slop develops, brake service when actuation softens, and engine overhaul when wear demands. Broken Tractor maintains parts coverage across the W-series and the broader Case wheel loader family - call with your serial and engine number and we’ll point you at the right component.
