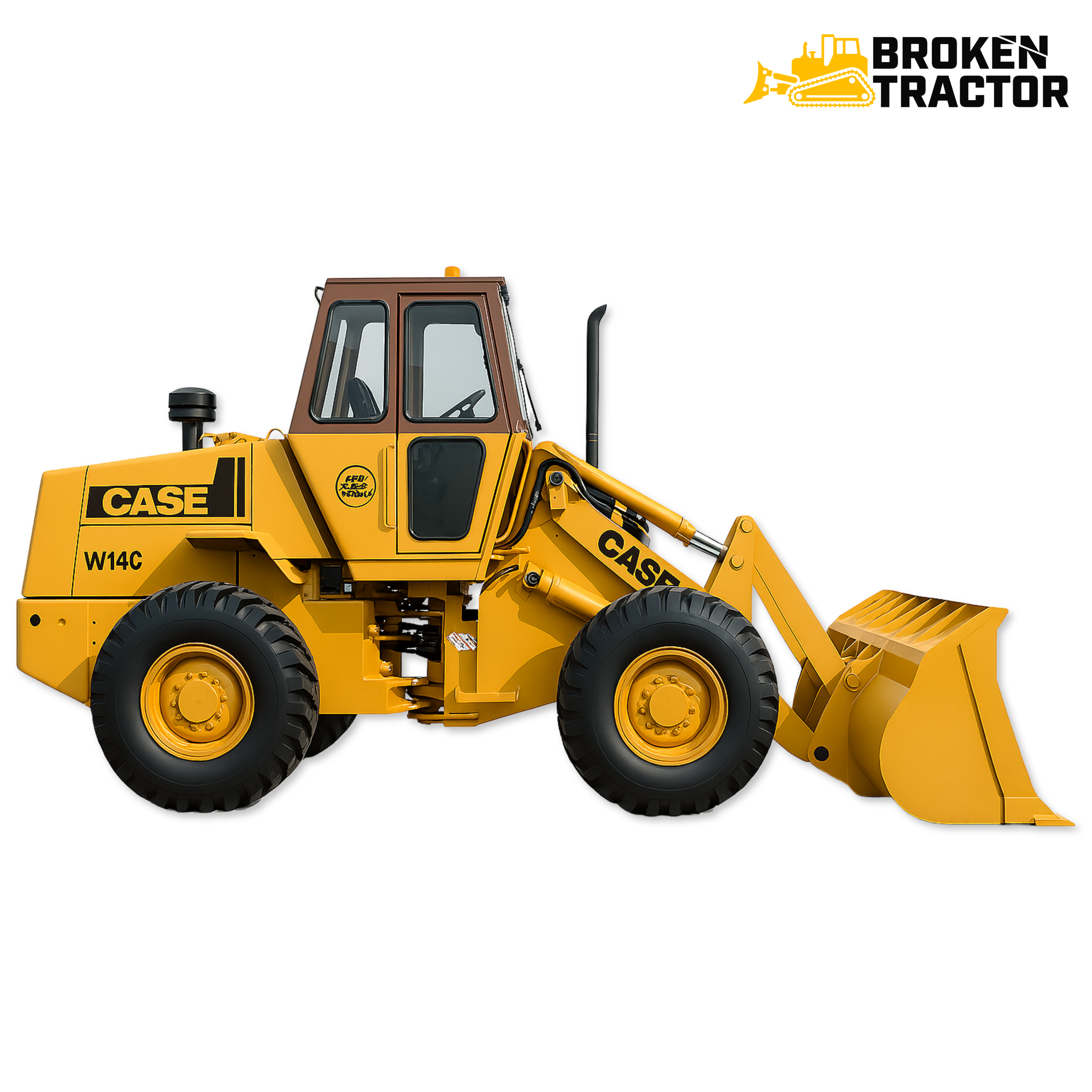

Case W14 Wheel Loader: Heavy Vintage W-Series
The Case W14 is one of the workhorses of the vintage Case W-series - a heavier articulated wheel loader that brought serious bucket capacity, larger Case diesel power, and stronger drivetrain to operations that ran a loader hard, every shift.
Where the W14 fits in the Case wheel loader line
The W14 sits between the W11 and the W18 in the original Case W-series sequence. Larger frame, heavier loader cylinders, more breakout, larger bucket - the W14 was a popular Case wheel loader for production loadout, scrap operations, and general construction in the W-series era. Mechanical injection, mechanical hydraulics, mechanical or power-shift transmission.
Case W14 Wheel Loader - Quick Specs
- Class
- Vintage Heavy Wheel Loader
- Frame
- Articulated
- Drivetrain
- Mechanical / Power Shift
- Engine
- Case Diesel
- Front Tool
- Hydraulic Loader
- Serial Plate
- Right Frame, Near Articulation Joint
- Smaller Sibling
- Case W11
- Larger Sibling
- Case W18
Engine, hydraulics, and drivetrain
The W14 runs a Case inline diesel through a mechanical or power-shift transmission into articulated front and rear drive axles. Loader hydraulics are gear-pump-driven with mechanical control valves and direct-acting cylinders sized for the W14’s heavier loader work. Articulation steering uses hydraulic cylinders between the chassis halves. Heavier brakes and larger final drives than the W11 reflect the W14’s intended duty cycle - production loadout and full-shift operation.
Because the W14 platform is entirely mechanical - no electronic engine control, no aftertreatment, no electronic transmission control - serviceability is the platform’s defining strength. A shop with a Case service manual, a parts catalog, and standard tools can keep a W14 running indefinitely.
Common service items on the W14
- Engine internals: Case diesel pistons, rings, sleeves, bearings, gaskets, full overhaul kits.
- Fuel system: Injection pump, injectors, lift pump, primary and secondary filters.
- Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
- Loader hydraulics: Cylinder seal kits, hydraulic pump rebuilds, control valves, hoses.
- Articulation steering: Steering cylinder seal kits, articulation pivot pins and bushings.
- Loader components: Bucket teeth, cutting edges, bushings, pivot pins, bucket lock systems.
- Drivetrain: Clutches, transmission components, axle seals, planetary final drives.
- Brakes: Brake bands, shoes, control linkage, actuators. The W14-fit 3-bolt brake master cylinder (L35635) is a frequent service item on these machines.
- Electrical: Starter, alternator, wiring harness, gauges, switches.
- Operator station: Seat, gauges, control levers, ROPS canopy parts.
Parts and cross-fit components for the Case W14
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Pistons, rings, sleeves, bearings, gaskets | Browse Engine Parts |
| Fuel System | Injection pumps, injectors, lift pumps, filters | Browse Fuel System |
| Cooling | Radiators, water pumps, thermostats, hoses | Browse Cooling Parts |
| Loader Hydraulics | Cylinders, seal kits, pumps, valves, hoses | Browse Hydraulics |
| Articulation Steering | Steering cylinders, pivot pins, bushings | Browse Articulation Parts |
| Loader | Bucket teeth, cutting edges, pins, bushings | Browse Loader Components |
| Drivetrain | Clutch, transmission, axles, final drives | Browse Drivetrain |
| Brakes | Brake shoes, bands, linkage, actuators, L35635 master cylinder | Browse Brake Parts |
| Electrical | Starters, alternators, harnesses, switches | Browse Electrical |
| Operator Station | Seats, gauges, controls, ROPS parts | Browse Operator Station |
Need a part for your Case W14 Wheel Loader?
Call our parts team with your serial number - we’ll match the right component to your machine.
Request a PartWhat to verify before ordering
- Serial number. Confirm the serial on the right frame near the articulation joint before ordering year-specific parts.
- Engine serial. Case diesel internal parts must match the engine serial number.
- Transmission type. Mechanical and power-shift drivetrains used different components.
- Loader configuration. Bucket size and pin geometry varied between machines.
- Articulation revisions. Pivot pin and bushing sizing was revised during production.
- Cab vs. ROPS canopy. Operator station equipment varied between configurations.
Why the W14 remains a working machine
The W14 is a Case heavy vintage wheel loader that still earns its keep on production sites that don’t need or want a modern aftertreatment-equipped machine. Mechanical injection, no electronics - a W14 responds to a wrench, a parts catalog, and a service manual. Owners who put a premium on capacity and serviceability keep these machines running for decades.
Maintenance priorities on a W14: clean fuel, hydraulic seal replacement before cylinders weep, articulation pivot service when slop develops, brake service when actuation softens, and engine overhaul when wear demands. Broken Tractor maintains parts coverage across the W-series and the broader Case wheel loader family.
