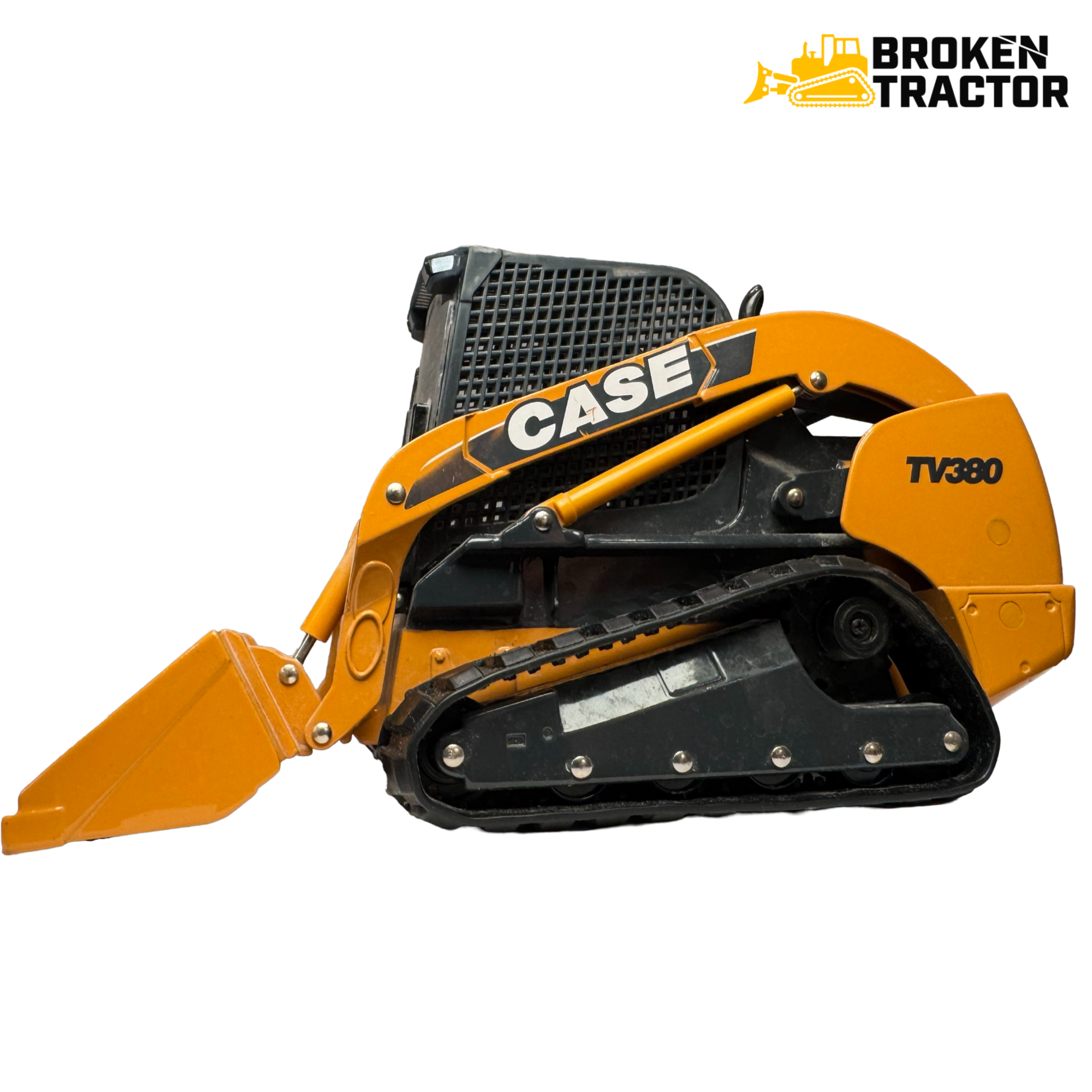

Case TV380 Compact Track Loader: Alpha-Series Vertical-Lift CTL
The Case TV380 is part of Case’s alpha-series TV (vertical-lift) compact track loader range — Tier 4 Final compact diesel, hydrostatic dual-path drive on a tracked undercarriage, and vertical-lift loader geometry that maximizes forward reach at full height. Best on truck-loading and stacking work where reach matters and ground pressure matters even more.
Where the TV380 fits in the Case skid steer / CTL line
The TV380 sits in Case’s alpha-series TV (vertical-lift) compact track loader range between the Case TV370B and the Case TV450. Tracked undercarriage, vertical-lift loader geometry, Tier 4 Final aftertreatment. The TV designation marks the vertical-lift geometry; pair it with the radial-lift TR-series and you have Case’s full compact track loader offering.
Case TV380 Compact Track Loader - Quick Specs
- Class
- Compact Track Loader
- Generation
- TV (Alpha) Vertical-Lift
- Engine
- Tier 4 Final Compact Diesel
- Drivetrain
- Hydrostatic Dual-Path
- Undercarriage
- Tracked
- Lift Geometry
- Vertical
- Serial Plate
- Left-side loader frame under cab step
Engine, hydraulics, and drivetrain
The TV380 runs a Tier 4 Final compact diesel through a hydrostatic dual-path drivetrain on a tracked undercarriage. Loader hydraulics use a load-sensing piston pump with electrohydraulic control valves. Vertical-lift geometry keeps the bucket forward through the lift arc — best matched to truck-loading and stacking work.
CTL undercarriage life is the largest single recurring cost on this platform — sprocket, roller, idler, and chain monitoring matters. Track tension and undercarriage wear inspections should be on every service interval, not just on big PMs.
Common service items on the TV380
- Engine internals: Tier 4 Final compact diesel - pistons, rings, sleeves, bearings, gaskets. Common-rail high-pressure injection.
- Tier 4 aftertreatment: DPF service intervals, DEF tank and dosing module, SCR catalyst, EGR cooler service.
- Fuel system: Common-rail injectors, lift pump, tight water-separator filtration.
- Cooling system: Radiator, water pump, thermostat, fan, charge-air cooler, hoses, belts.
- Hydraulics: Loader lift and bucket tilt cylinder seal kits (86570919 / 86570931 / 86570922 cross-fit on NH/Case alpha-series), piston-pump rebuilds, electrohydraulic control valves.
- Drivetrain: Hydrostatic dual-path pumps and drive motors, charge pump, filters. CTL undercarriage adds track chains, sprockets, idlers, and rollers.
- Bucket coupler hardware: 47396814K bucket pin kit cross-fits L216-L230, C232-C238, SR160-SR250, SV185-SV300, TV380, TR270-TR340 - high-volume coupler service kit.
- Hardware: 191048A2 axle stud & nut cross-fits broadly across the Case skid steer line.
- Brakes / control: Park brake, control linkage, 48139268 control shock absorber on Case/NH alpha-series control valves.
- Electrical / ECU: Engine ECU, machine controller, instrument cluster, sensors, wiring harness, telematics module.
- Cab / operator station: Cab HVAC, seat, gauges, joystick controls, cab glass, 47405956 windshield wiper blade on cab-equipped units.
Parts we carry for the Case TV380
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Tier 4 compact diesel internals | Browse Engine |
| Aftertreatment | DPF, DEF, SCR, EGR components | Browse Aftertreatment |
| Fuel System | Common-rail injectors, lift pump, filters | Browse Fuel |
| Cooling | Radiator, water pump, charge-air cooler, hoses | Browse Cooling |
| Hydraulics | Lift/tilt cylinder seal kits, piston pump, valves | 86570919 Tilt Seal Kit |
| Drivetrain | Hydrostatic pumps/motors and CTL undercarriage | Browse Undercarriage |
| Bucket Coupler | 47396814K bucket pin kit (cross-fits L216-L230, C232-C238, SR160-SR250, SV185-SV300, TV380, TR270-TR340) | 47396814K Pin Kit |
| Brakes / Control | 48139268 control shock absorber | 48139268 Shock Absorber |
| Cab | 47405956 wiper blade, HVAC, controls | 47405956 Wiper Blade |
| Electrical / ECU | ECU, harness, instrument cluster, sensors | Browse Electrical |
| Operator Station | Seats, joysticks, cab glass | Browse Operator Station |
Need a part for your Case TV380 Compact Track Loader?
Tier 4 aftertreatment, hydrostatic drive components, and CTL undercarriage are the highest-value items on a TV380. Call our parts team with your serial number.
Request a PartWhat to verify before ordering
- Aftertreatment + undercarriage generation. Tier 4 Final aftertreatment configuration varies by build year; CTL undercarriage components saw revisions - confirm by serial.
- Serial number. Confirm the serial on the TV380 before ordering year-specific parts.
- Engine serial. Internal engine parts must match the engine serial number.
- Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension - measure before ordering.
- Cab vs. ROPS canopy. Operator station equipment varied between configurations.
Why the TV380 still earns a paycheck
The Case TV380 is the alpha-series CTL that pairs vertical-lift loader geometry with a tracked undercarriage - flotation for soft material plus forward reach at full height. Truck-loading, stacking, and high-capacity material handling on soft ground are exactly where this machine shines.
Maintenance priorities on a TV380: clean fuel and tight water separation, DPF regen behavior, hydrostatic charge pressure, and undercarriage wear monitoring (track tension, sprocket and roller wear, idler condition). Get those right and a TV380 keeps earning.
