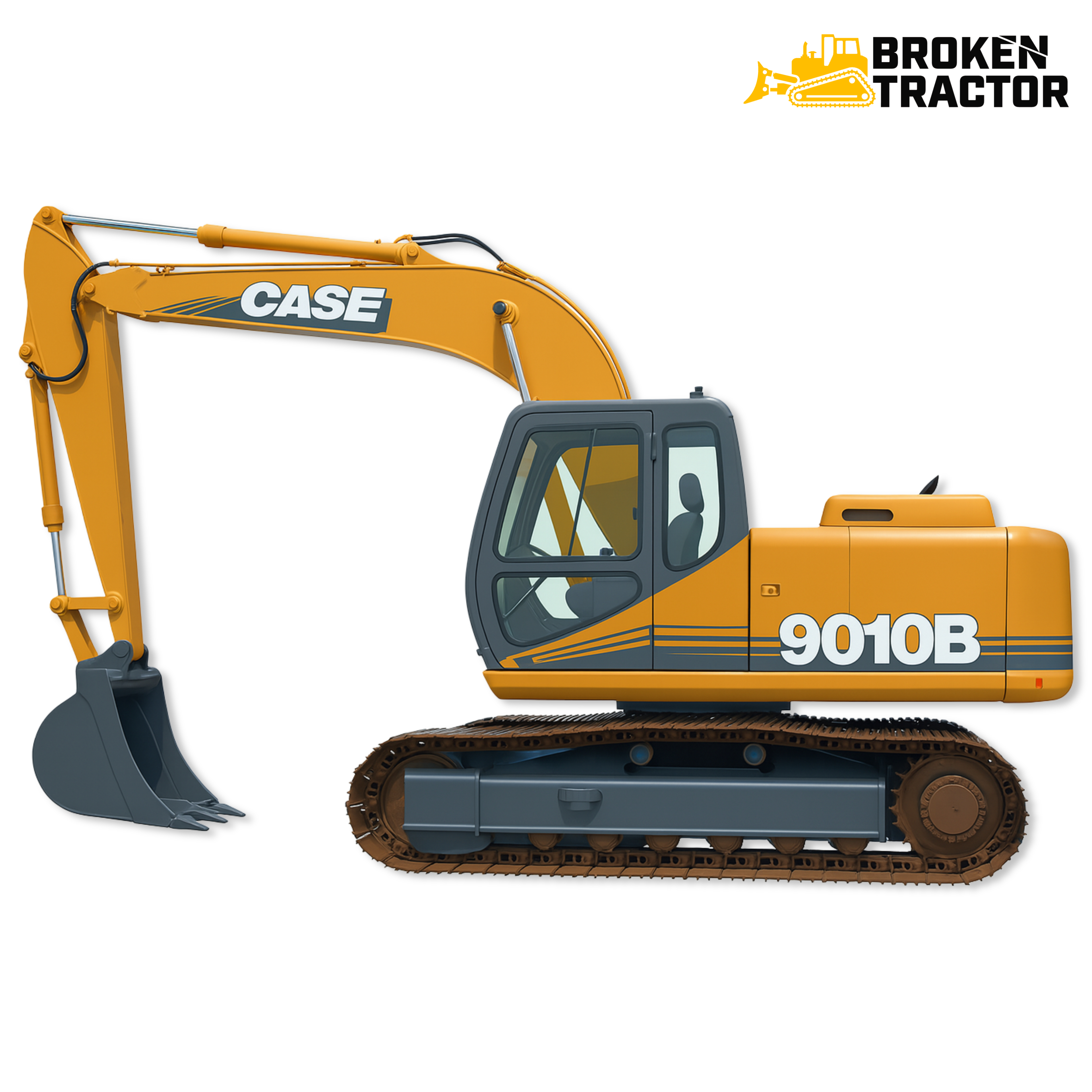

Case 9010B Excavator: 1997–2002 Legacy Mid-Class Excavator
The Case 9010B is a mid-class legacy excavator built from 1997 to 2002. The B-series brought refined hydraulics and an updated cab over the original 9010, and it sits as the direct predecessor to the modern CX-series excavator line.
Where the 9010B fits in the Case excavator line
The 9010B is part of Case’s legacy excavator lineage and the direct predecessor to the modern CX-series excavator family. It sits between the 9010 and 9020 in the legacy B-series sequence, carrying refined hydraulics and an updated operator station over the original 9010 platform.
Case 9010B Excavator - Quick Specs
- Production
- 1997 - 2002
- Class
- Mid-Class Legacy Excavator
- Engine
- Case / Cummins Diesel
- Drivetrain
- Hydrostatic Dual-Path
- Undercarriage
- Steel Track
- Smaller Sibling
- Case 9010
- Larger Sibling
- Case 9020
- Modern Equivalent
- Case CX-Series
Engine, hydraulics, and drivetrain
The 9010B runs a Case or Cummins diesel through a hydrostatic dual-path drivetrain. Pre-Tier 4 emissions - mechanical injection on the earliest builds, electronic engine control on later production. The main hydraulic pump drives boom, dipper, bucket, swing, and propel through mechanical or electrohydraulic control valves depending on configuration. The steel-track undercarriage uses Case-pattern rollers, idlers, drive sprockets, and recoil springs.
Common service items on the 9010B
- Engine internals: Pistons, rings, sleeves, bearings, head gaskets. Mechanical-injection or early-electronic depending on production year.
- Fuel system: Injection pump, injectors, lift pump, primary and secondary fuel filters.
- Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
- Hydraulic system: Boom, dipper, bucket, and swing cylinder seal kits, main pump rebuild, control valves, hoses.
- Boom and dipper: Pin and bushing service at every joint, bucket pins, thumb attachment hardware, quick coupler service.
- Undercarriage: Steel track inspection and replacement, rollers, idlers, drive sprockets, recoil springs.
- Swing system: Swing motor and reduction gear service, swing bearing inspection, swing brake.
- Electrical: Starter, alternator, wiring harness, gauges, switches.
- Cab glass and wiper: KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass cross-fit across Case and Link-Belt excavators.
- Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.
Parts we carry for the Case 9010B Excavator
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Pistons, rings, sleeves, bearings, gaskets | Browse Engine |
| Fuel System | Injection pump, injectors, lift pump, filters | Browse Fuel |
| Cooling | Radiator, water pump, hoses, belts | Browse Cooling |
| Exhaust | 162122A1 muffler (9010B/9020B low-ser direct fit) | Browse Exhaust |
| Hydraulics | Main pump, swing motor, cylinders, seal kits, valves | Browse Hydraulics |
| Boom / Dipper | Pins, bushings, bucket and quick-coupler hardware | Browse Boom / Dipper |
| Undercarriage | Steel tracks, rollers, idlers, sprockets, recoil springs | Browse Undercarriage |
| Swing | Swing motor, reduction gear, swing bearing | Browse Swing |
| Cab Glass / Wiper | KHN16820 wiper, KHN3046 lower glass, KHN2632 upper glass (Case/Link-Belt cross-fit) | Browse Cab Glass |
| Electrical | Starter, alternator, harness, gauges | Browse Electrical |
| Operator Station | Seat, joysticks, pedal linkage, gauges | Browse Operator Station |
Need a part for your Case 9010B Excavator?
Call our parts team with your serial number - we’ll match the right component to your machine. Engine internals, hydraulic rebuilds, and undercarriage are the highest-value items on a 9010B.
Request a PartWhat to verify before ordering
- Serial number. Confirm the chassis serial on the 9010B before ordering year-specific parts.
- Engine serial. Engine internal parts must match the engine serial number.
- Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension - measure before ordering.
- Production-window revision. Engine and hydraulic components saw multiple revisions during the production run.
- Bucket and quick coupler. Quick-coupler interface varies - confirm before ordering attachment-side hardware.
- Exhaust serial break. The 162122A1 muffler fits low-serial 9010B/9020B units. Verify before ordering.
Why the 9010B still earns a paycheck
The Case 9010B is a legacy excavator from the era before the modern CX-series. Pre-Tier 4 emissions, mechanical or early-electronic injection, and a service architecture that rewards a wrench, a manual, and a parts catalog. For owners and operators running these machines, parts availability through the legacy Case service network and aftermarket remains broad.
Maintenance priorities on a 9010B: clean fuel and quality filtration, hydraulic oil at temperature with clean filters, swing-bearing lubrication, steel-track tension and undercarriage wear monitoring, and pin and bushing service at every working joint. Broken Tractor maintains parts coverage across the Case legacy excavator family.
