Case 580C Pin and Bushing Kits

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Dipper Cylinder to Dipper Stick Connection Fits Models with a Standard Dipper Stick (Will not fit...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Dipper Cylinder to Extendable Dipper Stick Connection Weight: 8.4 lbs (4.54 kg) Kit...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Bucket Cylinder Tube to Dipper Stick Connection Weight: 9 lbs (4.08 kg) Kit Includes: (1) Bucket Cylinder to...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Dipper Stick to Boom Connection Weight: 13 lbs (5.9 kg) Kit Includes: (1) Dipper Stick to Boom...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Boom Cylinder to Boom Connection Weight: 14 lbs (6.35 kg) Kit Includes: (1) Boom Cylinder to...

Fits Models At A Glance: Case Backhoes: 580B,580C, 580D, 580 Super D, 580E, 580 Super E Fits Models with Standard Dipper Stick Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Bucket Links to Dipper Stick...

Fits Models At A Glance: Case Backhoes: 480C, 480D, 480E, 580C, 580D, 580 Super D, 580E, 580 Super E Fits Extend a Hoe Models Only Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Bucket Link to Extendable...

Fits Models At A Glance: Case Backhoes: 580B, 580C Compatible With: Standard and ExtendaHoe dipper stick configurations Key Notes: Weight: 11 lbs. (5.0 kg) Location: Bucket links to bucket cylinder connection Kit Function: Replaces all wear...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Bucket to Dipper Stick Connection Note: Will not fit buckets less than 13 inches wide Weight: 13...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Bucket to Dipper Stick Connection Note: Fits models with 12" (304.8 mm) wide bucket or...

Product Description: Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Bucket Link to Bucket Connection Weight: 7 lbs (3.18 kg) Kit Includes: (1)...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes All Wear Parts for One Pin Hole Location: Boom to Swing Tower Connection Weight: 10 lbs (4.54 kg) Kit Includes: (2) Boom to Swing Tower Pins (2) Boom...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Bottom Swing Tower to Frame Connection Weight: 5.84 lbs (3.18 kg) Kit Includes: (1) Bottom Swing Tower to Frame...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Boom Cylinder to Swing Tower Connection Weight: 3 lbs (1.36 kg) Kit Includes: (1) Boom Cylinder...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Swing Cylinder Rod to Swing Tower Connection Weight: 8 lbs (3.63 kg) Kit Includes: (1) Swing Cylinder Rod to Swing...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Swing Cylinder to Frame Connection Includes: Inner and Outer Swing Cylinder Tube Bushings Weight:...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes All Wear Parts for One Pin Hole Location: Top Swing Tower to Machine Frame Connection Weight: 6.1 lbs  Kit Includes: (1) Top Swing Tower to Frame...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Stabilizer Cylinder Tube to Frame Connection Weight: 6 lbs (2.72 kg) Kit Includes: (1) Stabilizer Cylinder Tube to...

Fits Models At A Glance: Case Backhoes: 580C, 580D Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Stabilizer Cylinder Rod End to Leg Connection Weight: 4.8 lbs (2.18 kg) Kit Includes: (1) Stabilizer Cylinder...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Loader Frame to Chassis Connection Weight: 33 lbs (14.97 kg) Kit Includes: (1) Loader Frame to Chassis Shaft (4)...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes All Wear Parts for One Pin Hole Location: Bucket Tilt Cylinder Tube at Bucket Link Weight: 2 lbs (0.91 kg) Kit Includes:(2) Tilt Cylinder Bushings(2)...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Designed for Loader Frame to Bucket Connection Ensures Proper Loader Function & Stability Weight: 5 lbs (3.18 kg) Kit Includes:(1) Loader Frame to Bucket Pin(2) Snap Rings(1) Grease...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes All Wear Parts for One Pin Hole Location: Bucket Tilt Cylinder Link to Loader Frame Weight: 3 lbs (1.36 kg) Kit Includes:(1) Bucket...

Fits Models At A Glance: Case Backhoes: 580C Key Notes: Simplifies Ordering – Includes All Wear Parts for One Pin Hole Location: Lift Cylinder Rod End to Loader Frame Weight: 7 lbs (3.18 kg) Kit Includes: (1) Lift Cylinder Rod to Frame Pin(1)...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Designed for Loader Frame to Bucket Connection Ensures Proper Loader Function & Stability Weight: 7 lbs (3.18 kg) Kit Includes:(1) Loader Frame to Bucket Pin(2)...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Stabilizer Pad to Leg Connection Weight: 5 lbs (2.27 kg) Kit Includes: (1) Stabilizer Pad to Leg...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Dipper Cylinder to Boom Connection Weight: 5 lbs (2.27 kg) Kit Includes: (1) Dipper Cylinder to...

Fits Models At A Glance: Case Backhoes: 580C, 580D, 580 Super E Key Notes: Simplifies Ordering – Includes all wear parts for one pin hole Location: Extension Cylinder Tube to Extendable Dipper Stick Connection Weight: 4 lbs (1.81 kg) Kit...

Fits Models At A Glance: Case Backhoes:580D, 580 Super D (580SD), 580E, 580 Super E (580SE) Configuration: Compatible with both Standard and ExtendaHoe dipper sticks Key Notes: Pin Location: Connects bucket cylinder to link arms Weight: 11 lbs...

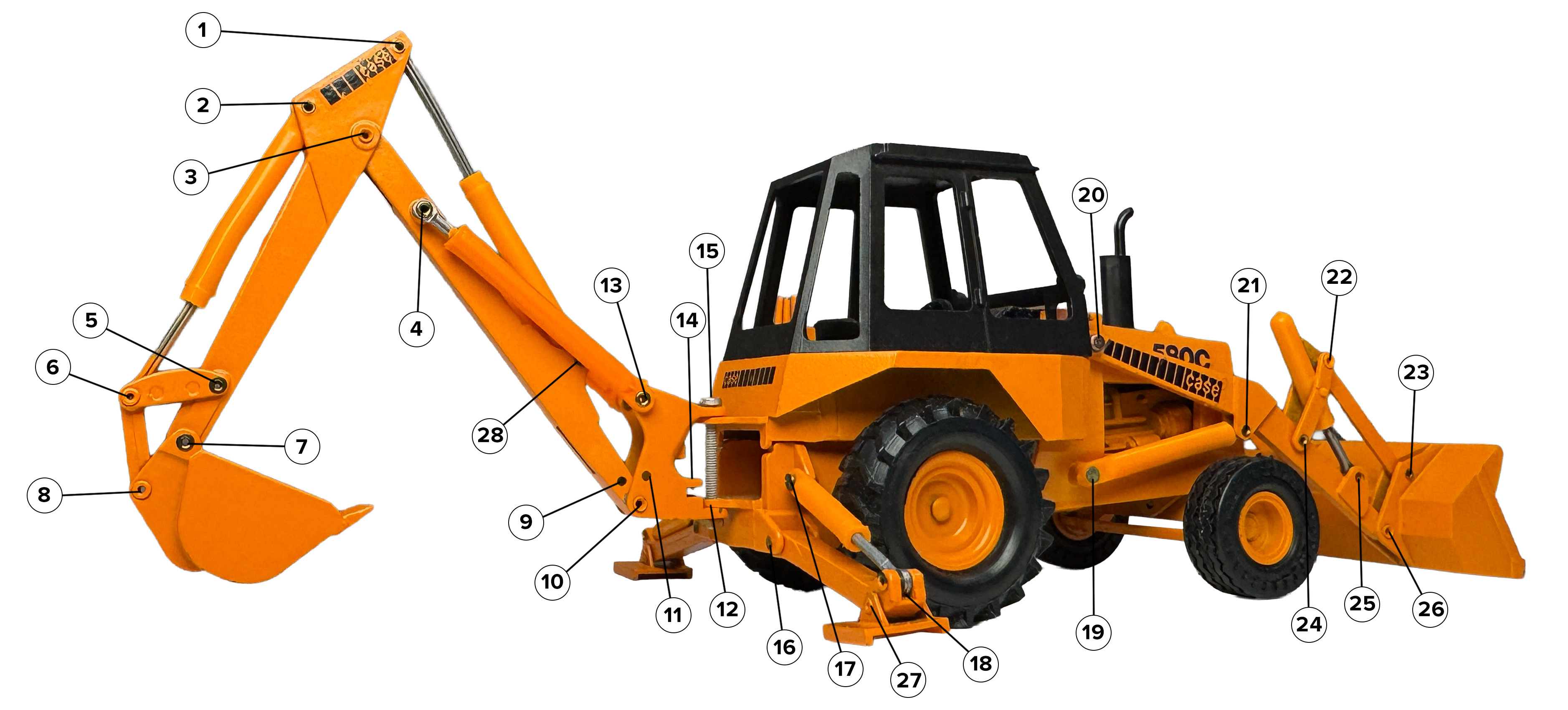

REF #	Image	Fits Model	Description	Part #	Price	Product Details
1	See Details	580C, 580D, 580 Super E	Pin Kit, Dipper Cylinder Rod to Standard Dipper Stick	D52522-Kit-1	$144.00	View Info
1A	See Details	580C, 580D, 580 Super E	Pin Kit, Dipper Cylinder to Extendable Dipper Stick	D37611-Kit-1	$144.00	View Info
2	See Details	580C, 580D, 580 Super E	Pin Kit, Bucket Cylinder Tube to Standard Dipper Stick	D52522-Kit-2	$142.00	View Info
3	See Details	580C, 580D, 580 Super E	Pin Kit, Dipper Stick to Boom	D45523-Kit-1	$144.00	View Info
4	See Details	580C, 580D, 580 Super E	Pin Kit, Boom Cylinder to Boom	D49865-Kit-1	$114.00	View Info
5	See Details	580B, 580C, 580D, 580SD, 580E, 580SE	Pin Kit, Bucket Links to Dipper Stick	D53818-Kit-1	$124.00	View Info
5A	See Details	480C, 480D, 480E, 580C, 580D, 580 Super D, 580E, 580 Super E	Pin Kit, Bucket Link to Extendable Dipper	D53818-Kit-3	$188.00	View Info
6	See Details	580B, 580C	Pin Kit, Bucket Links to Bucket Cylinder Rod	D53818-Kit-2	$164.00	View Info
7A	See Details	580C, 580D, 580 Super E	Pin Kit, Bucket to Dipper	D64799-Kit-1	$144.00	View Info
7B	See Details	580C, 580D, 580 Super E	Pin Kit, Bucket to Dipper Stick (12" Bucket)	D55584-Kit-1	$168.00	View Info
8	See Details	580C, 580D, 580 Super E	Pin Kit, Bucket Link to Bucket	D37614-Kit-1	$138.00	View Info
10	See Details	580C	Pin Kit, Boom to Swing Tower	D50700-Kit-1	$494.00	View Info
12	See Details	580C	Pin Kit, Bottom Swing Tower to Frame	D74004-Kit-2	$64.00	View Info
13	See Details	580C, 580D, 580 Super E	Pin Kit, Boom Cylinder to Swing Tower	D49866-Kit-1	$68.00	View Info
14	See Details	580C	Pin Kit, Swing Cylinder to Swing Tower	D49863-Kit-1	$108.00	View Info
14A	See Details	580C, 580D, 580 Super E	Bushing Kit, Swing Cylinder Tube to Frame	D60159-Kit-1	$94.00	View Info
15	See Details	580C	Pin Kit, Top Swing Tower to Frame	D74004-Kit-1	$64.00	View Info
17	See Details	580C	Pin Kit, Stabilizer Cylinder to Frame	D29483-Kit-1	$58.00	View Info
18	See Details	580C, 580D	Stabilizer Cylinder Rod End to Leg	D50695-Kit-1	$64.00	View Info
20	See Details	580C, 580D, 580 Super E	Loader Pin Kit, Loader Frame to Chassis	D62192K	$218.00	View Info
22	See Details	580C	Bushing Kit, Loader Bucket Tilt Cylinder Tube at Link	D31511K	$54.00	View Info
23	See Details	580C	Loader Pin Kit, Drag Link to Loader Bucket	D37287K	$118.00	View Info
24	See Details	580C, 580D, 580 Super E	Bushing Kit, Bucket Cylinder Link to Loader Frame	13-16104K	$36.00	View Info
25	See Details	580C	Pin Kit, Lift Cylinder Rod to Loader Frame	D67357K	$84.00	View Info
26	See Details	580C, 580D, 580 Super E	Loader Pin Kit, Loader Frame to Bucket	D126717K	$164.00	View Info
27	See Details	580C, 580D, 580 Super E	Pin Kit, Stabilizer Pad to Leg	D50696-Kit-1	$44.00	View Info
28	See Details	580C, 580D, 580 Super E	Pin Kit, Dipper Cylinder to Boom	D72359-Kit-1	$78.00	View Info
NA	See Details	580C, 580D, 580 Super E	Pin Kit, Extension Cylinder Tube to Extendable Dipper Stick	D44882-Kit-1	$48.00	View Info
6	See Details	580B, 580C	Pin Kit, Bucket Links to Bucket Cylinder Rod	D53818-Kit-4	$194.00	View Info
